8. DEBUGGING FUNCTION

The following shows the procedures to perform program trace.

These operations are performed on the "Program Trace" screen of the trace menu in the

online mode.

Perform these operations with the CPU module setting to the STEP-RUN. (Refer to

Section 8.7.)

(1) Set the trace devices and trace conditions with GPP function.

(a) Setting the trace devices

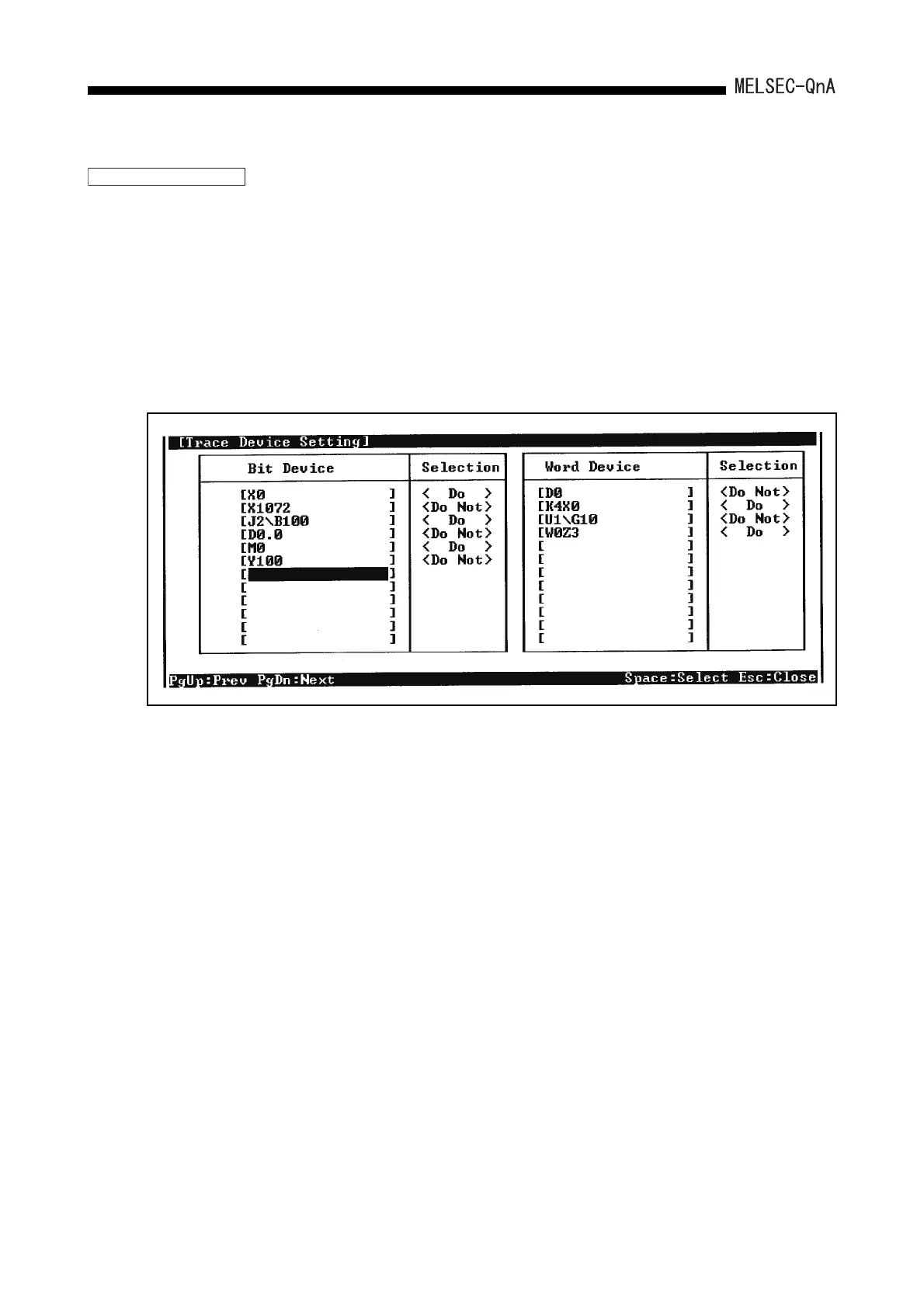

Set the devices at "Trace Device Setting" on the "Program Trace" screen.

Operation Procedures

Default Chapter12
