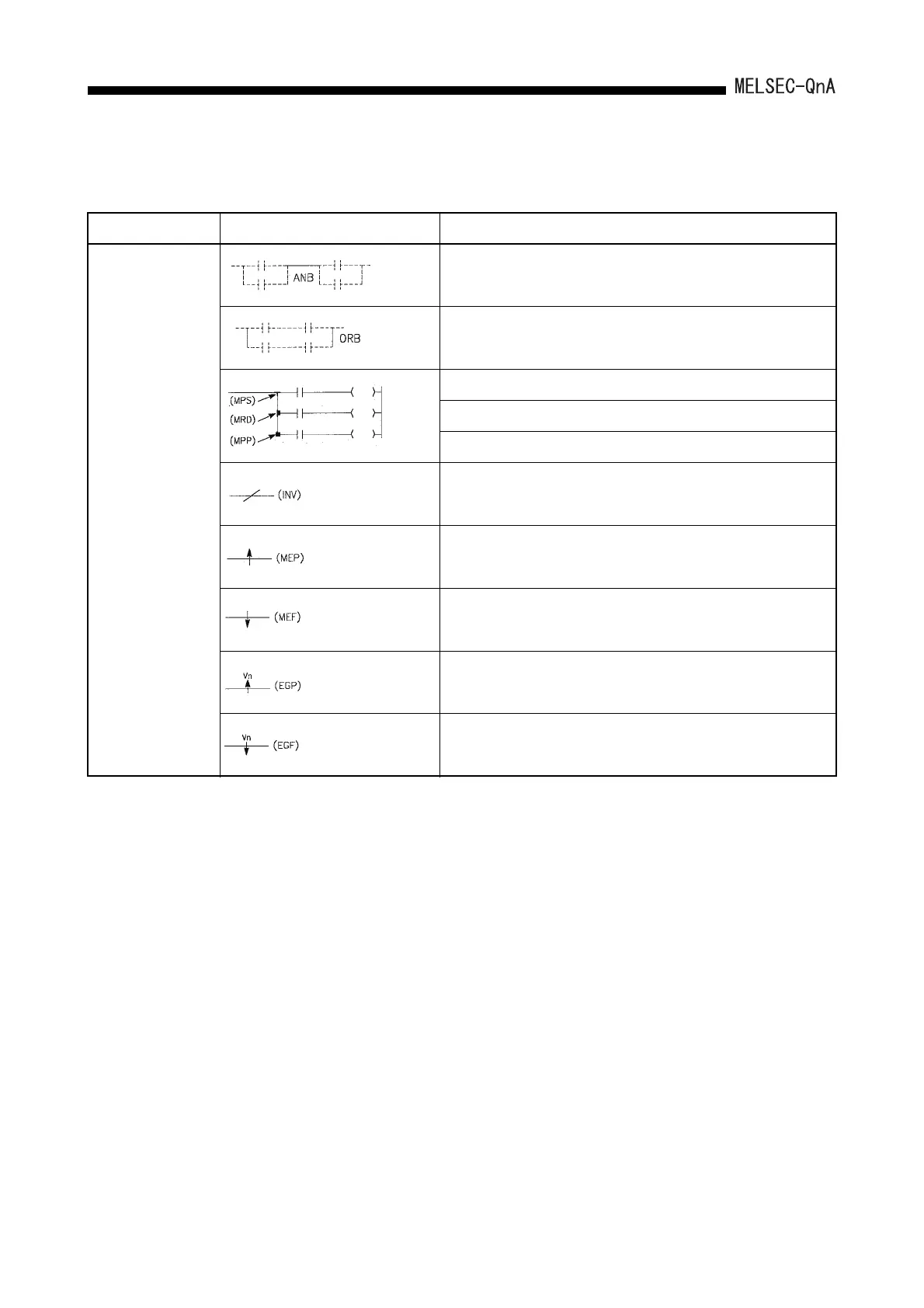

(2) Association commands
Classification Symbol Description
Association
• ANDs logical blocks (series connection of blocks).
• ORs logical blocks (parallel connection of blocks).
• Stores the operation result.
• Reads the operation result from MPS.
• Reads the operation result from MPS and clears the result.
• Inverts the operation result.
• Converts the operation result to a rising edge pulse.
• Converts the operation result to falling edge pulse.
• Converts the operation result to rising edge pulse (stored at Vn).
• Converts the operation result to falling edge pulse (stored at Vn).
