7 - 7
7. AUTO REFRESH FUNCTION

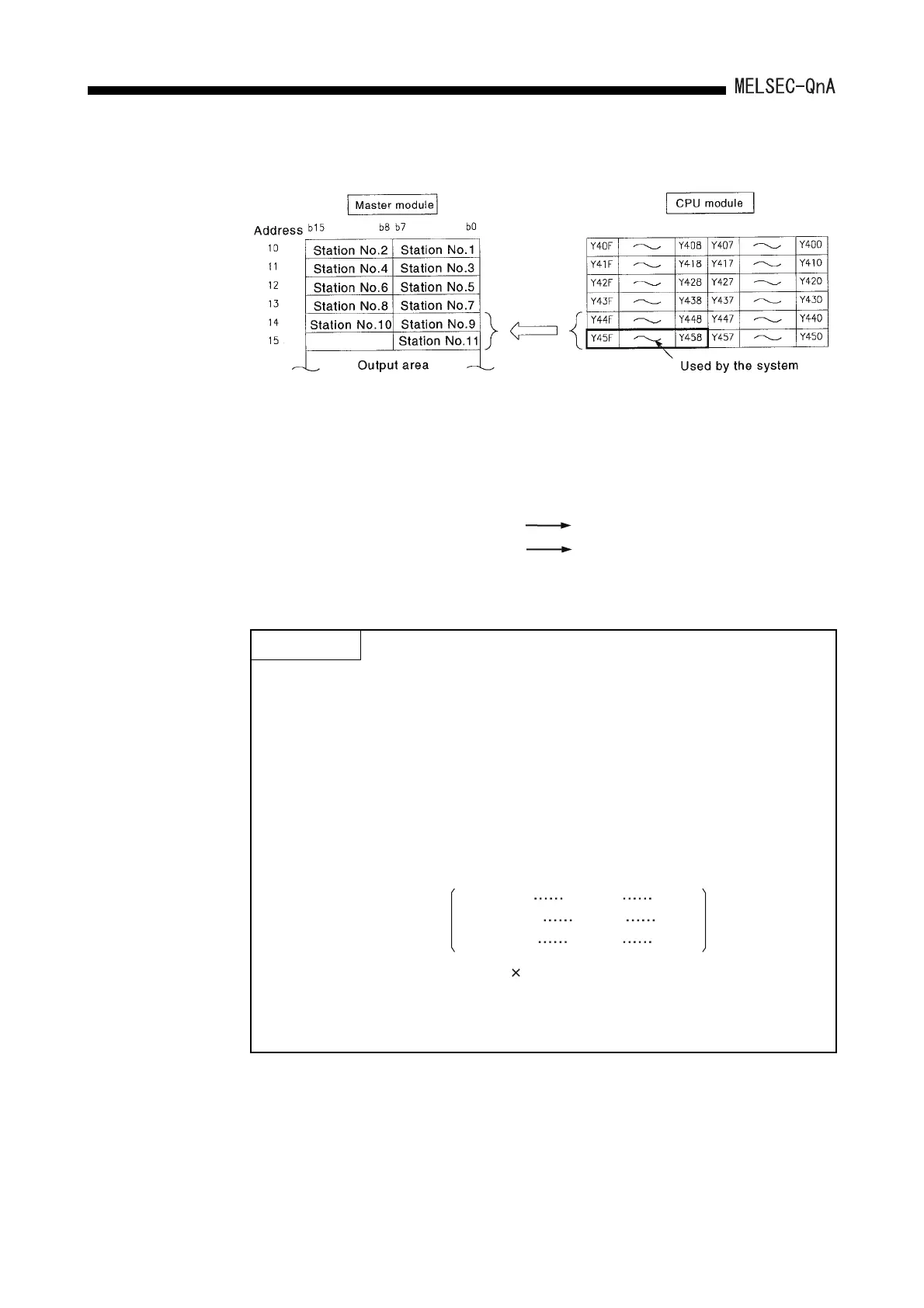

(b) Send data storage device
1) Set the device number (Y400) for b0 of the station 1 as a send data storage
device.
2) The send data storage device occupies from Y400 to Y45F.
For the present system example, since the total number of stations is odd, it
is occupied for one extra station.
3) The device numbers of output modules connected are as follows:
With respect to Y400 to Y43F and Y458 to Y45F, they are simultaneously
refreshed, but are not output.
Station 9 to 10
AX40Y50C
Y440 to Y44F
Station 11
AJ35TJ-8R
Y450 to Y457
POINT
(1) If the same device type is used for the send data storage devices and
received data storage devices, make sure that there is no duplication of
device numbers.
When the received data storage device is set to B0 in the system
configuration example, it occupies B0 to B5F as the device range.
Set the send data storage device to B60 or later.
When the send data storage device is set to B60, the device range will be B60
to BBF.
(2) If a bit device is specified as the send/received data storage device, the
device number set must be a multiple of 16.
(3) Device range used is (8 points) (Number of stations).
When the number of stations is an odd number, extra 8 points are necessary.
(4) When specifying input (X) for the received data storage device, specify the
device number out of the actual input (X) range.
Example:
X0, X10, X100,
M0, M16, M256,
B0, B10, B100,
