−7−
When taking the wiring out from the upper center, open a hole before separating the upper and bottom cases. This will reduce risk of
damaging the PCB and facilitate subsequent work.
When taking the wiring out from the upper left, take care not to damage the PCB and not to leave any chips of cut thin wall inside.
8
50
200
壁
電線管
ロ ッ ク ナ ット
スイッチ
ボックス
パテでシール
すること
リモコン 配 線
下ケース配線穴
Wiring hole on
bottom case
③

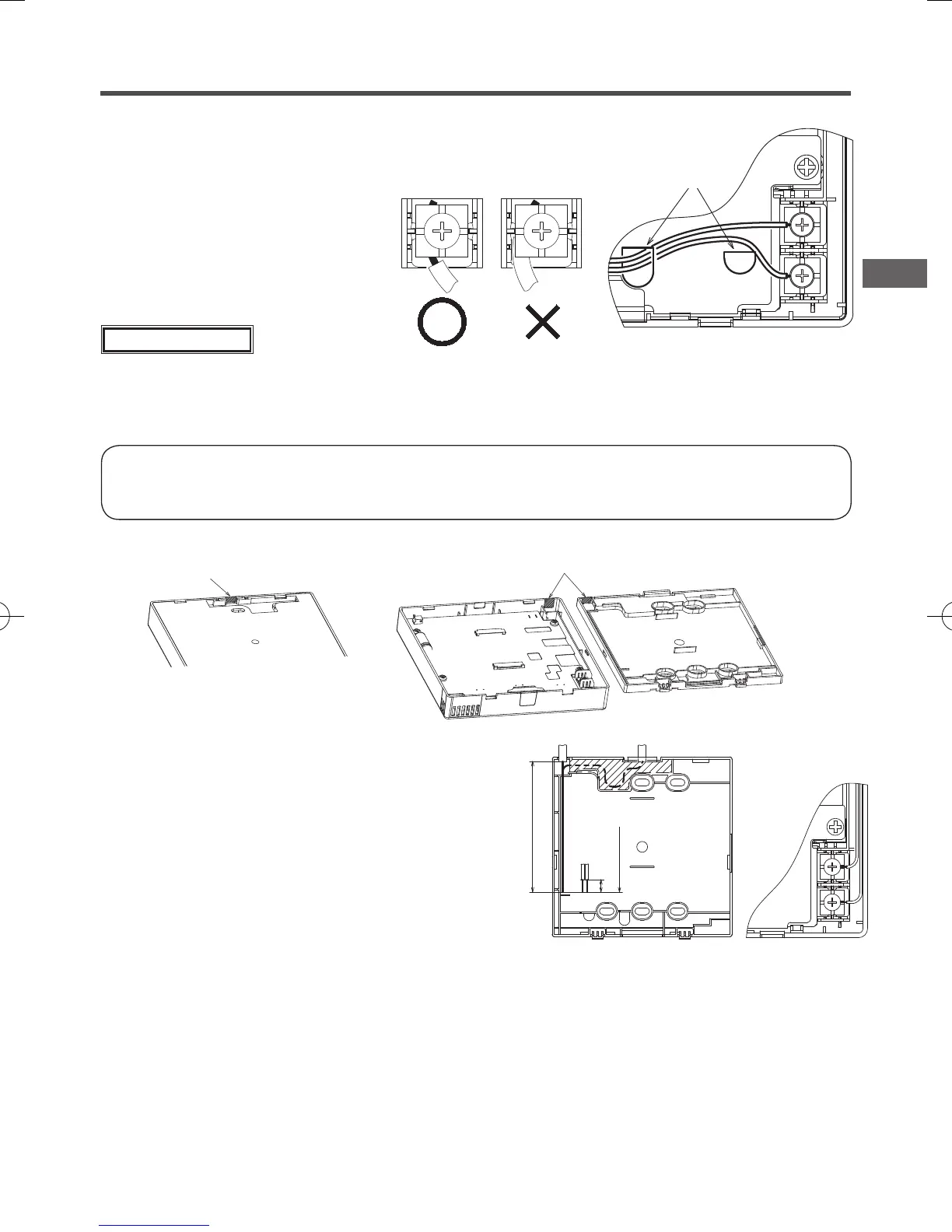

Connect wires from X and Y terminals of R/C to X and Y terminals of indoor unit. R/C
wires (X, Y) have no polarity. Fix wires such that the wires will run around the terminal
screws on the top case of R/C.
④
Install the upper case with care not to pinch wires of R/C.
Cautions for wire connection
Use wires of no larger than 0.5 mm2 for wiring running
through the remote control case. Take care not to pinch
the sheath.
Tighten by hand (0.7 N·m or less) the wire connection.
If the wire is connected using an electric driver, it may
cause failure or deformation.
In case of exposing wiring
(When the wiring is taken out from the “upper center” or
“upper left” of R/C)
①
Cut out the thin wall sections on the cases for the size of wire.
②
Fix the bottom R/C case on a at surface with two wood
screws.
③
In case of the upper center, pass the wiring behind the
bottom case. (Hatched section)
④
Connect wires from X and Y terminals of R/C to X and Y
terminals of indoor unit. R/C wires (X, Y) have no polarity.
Fix wires such that the wires will run around the terminal
screws on the top case of R/C.
⑤
Install the top case with care not to pinch wires of R/C.
⑥
Seal the area cut in
①
with putty.
上面左の場合
上ケース
下ケース
120mm
左側の場合
190mm
中央の場合
8
上面中央の場合
Upper center
Upper left
Bottom case
Upper case
120 mm
(for retrieving wire
from upper left)
190 mm
(for retrieving
wire from upper
center)
