Service Manual Mitsubishi SQ-Series diesel engines
Version 08/2004
ALTERNATOR
ENGLISH
ELECTRICAL SYSTEM
3. Check the belt tension. If the belt tension does not
conform to the standard value, loosen the belt and
repeat the above step (2).
Unit: mm [in.]
4. When the belt tension is properly adjusted, tighten
all the bolts that secure the alternator in place.

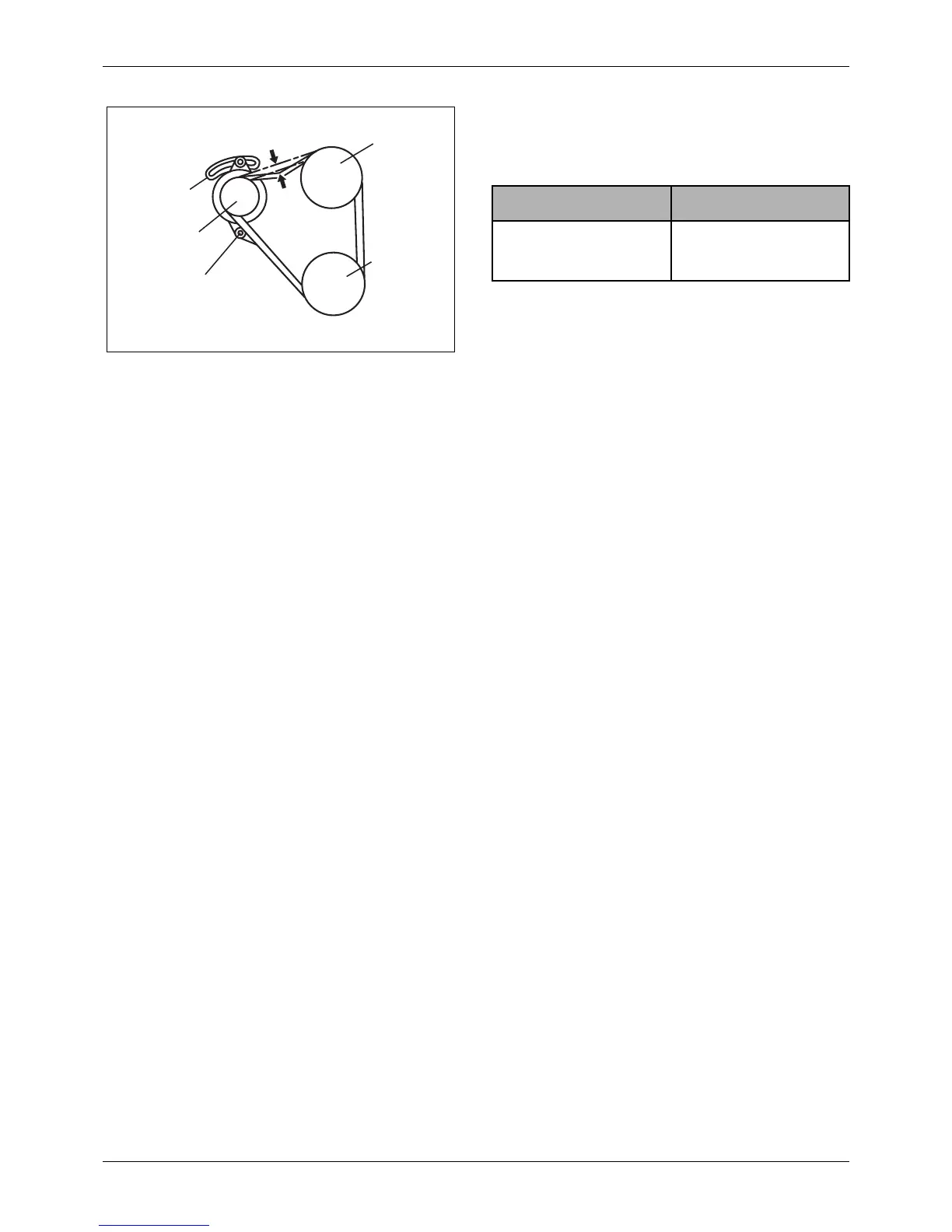

Figure 204 Inspection of belt tension
98 N (10 kgf) [22 lbf]
Water pump
pulley
Crankshaft
pulley
About
13 mm
[0.5118 in.]
Adjusting
plate
Alternator
pulley
Bolt
Item Standard Value
Belt tension (crankshaft
pulley - alternator pulley)
Approx. 13 [0.5118] (when
pressed with force of 98 N
(10 kgf) [22 lbf])
