Service Manual Mitsubishi SQ-Series diesel engines
Version 08/2004
ENGLISH
TIMING GEARS, CAMSHAFT AND OIL
PAN ENGINE MAIN PARTS
7. Turning crankcase upside down
1) Turn the crankcase upside down.
2) Unscrew the bolts that hold the oil pan to the
crankcase. Remove the oil pan.
3) Remove the gasket.
8. Removing oil pump
Unscrew the set bolt and remove the oil pump from
the crankcase.

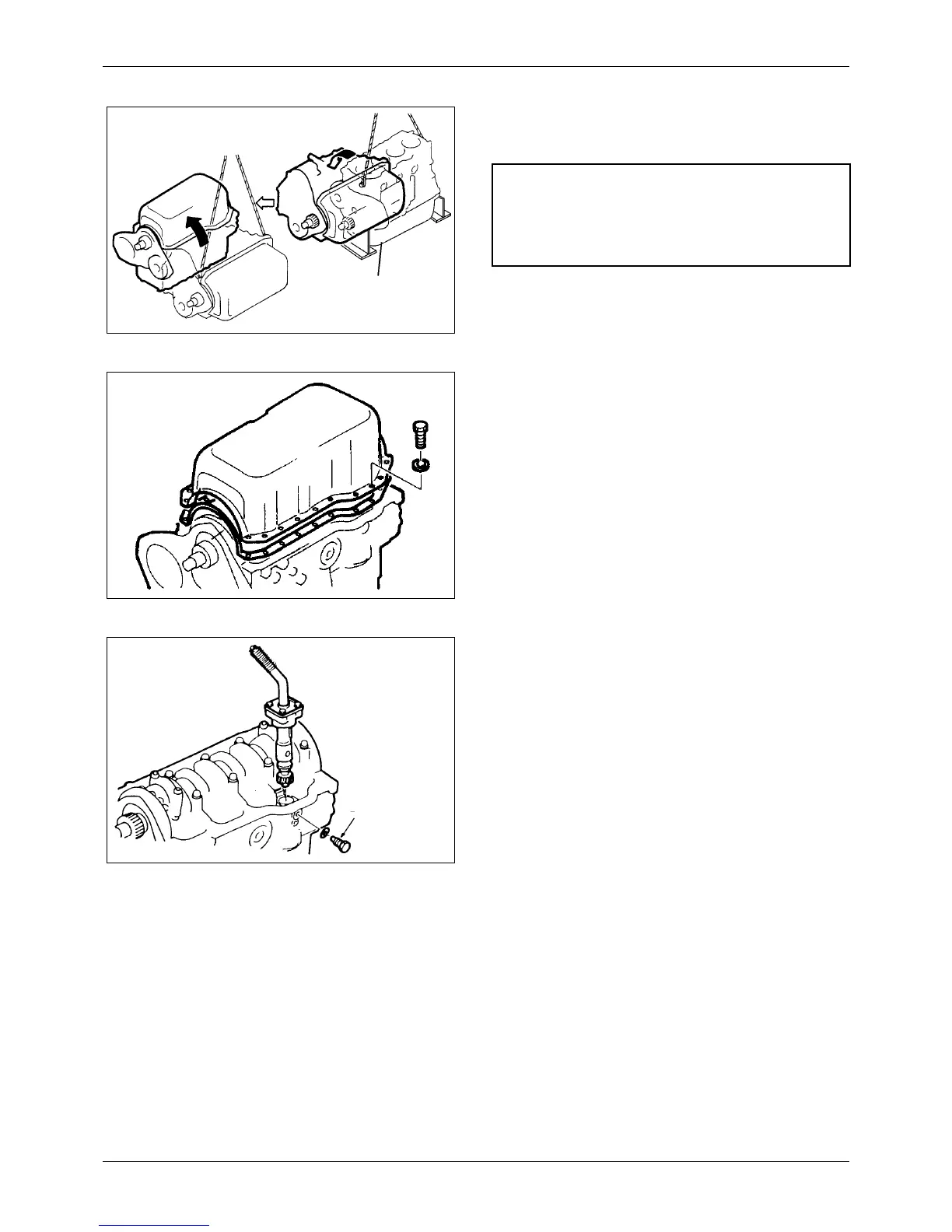

Figure 65 Turning crankcase upside down
Oil pan
CAUTION
To prevent damage to the oil pan, do not place the
engine on the floor with the oil pan facing down.
Figure 66 Removing oil pan and gasket
Figure 67 Removing oil pump
Oil pump
set bolt
