MKS Granville-Phillips Mini-Convectron 275 series - Module Dimensions and Construction

2 Introduction/Specifications
15
Series 275 Mini-Convectron Module with DeviceNet
Instruction Manual - 275563
2.2 Module Dimensions

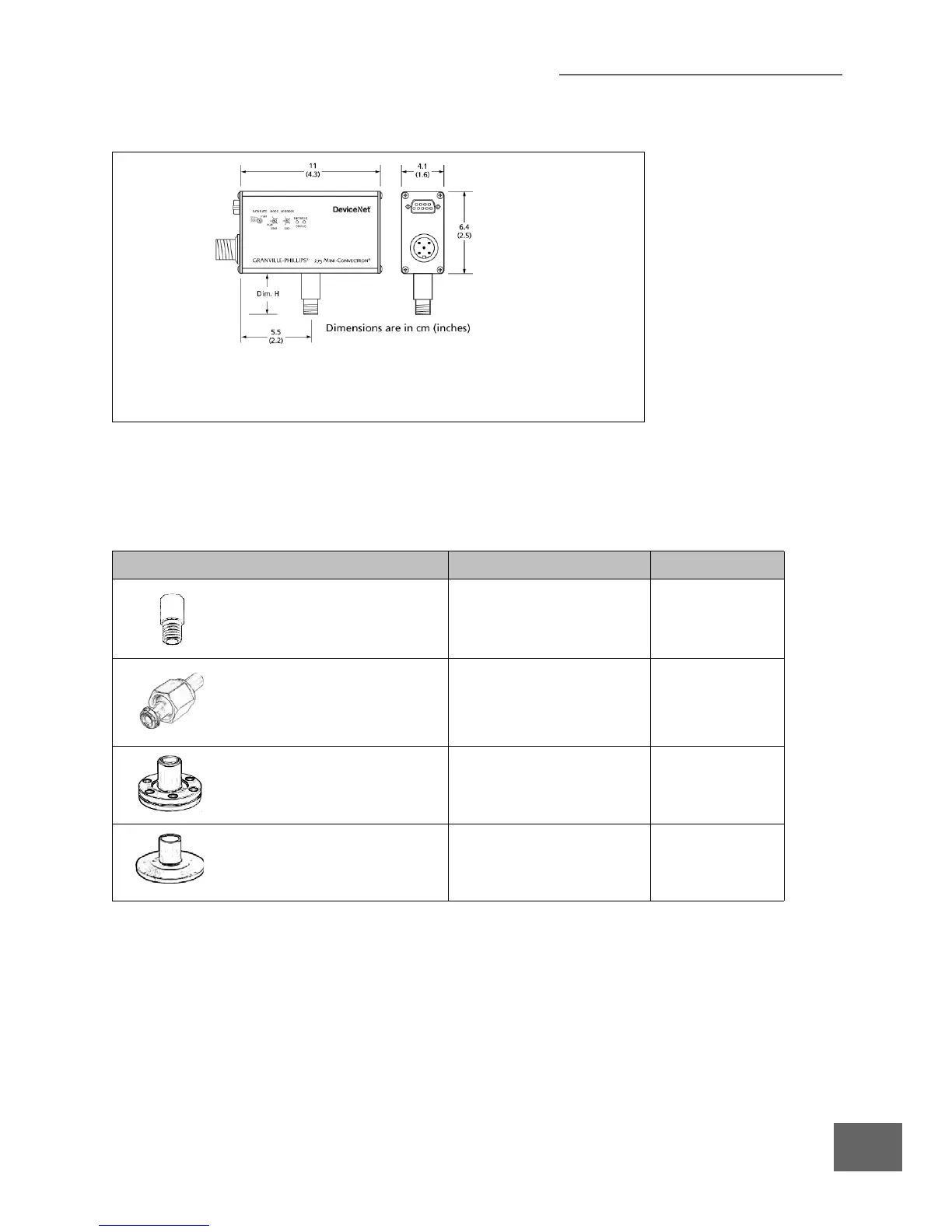

Figure 2-2 DeviceNet Mini-Convectron Module Dimensions
Table 2-3 Fitting/Flange Dimensions
Fitting Description Dimension H
1/8 NPT pipe thread
1/2 inch compression fitting
1/8 NPT pipe thread /
1/2 inch tubulation
2.2 cm (0.9 in.)
VCR-type female fitting 1/4 inch VCR-type female
fitting (standard)
1/2 inch VCR-type female
fitting
3.0 cm (1.2 in.)
3.9 cm (1.5 in.)
ConFlat-type flange 1.33 inch (NW16CF)
ConFlat-type
2.75 inch (NW35CF)
ConFlat-type
3.9 cm (1.5 in.)
3.9 cm (1.5 in.)
KF flange NW16KF flange
NW25KF flange
NW40KF flange
3.1 cm (1.2 in.)
3.1 cm (1.2 in.)
3.9 cm (1.5 in.)
