3 Installation
20
Series 275 Mini-Convectron Module with DeviceNet
Instruction Manual - 275563

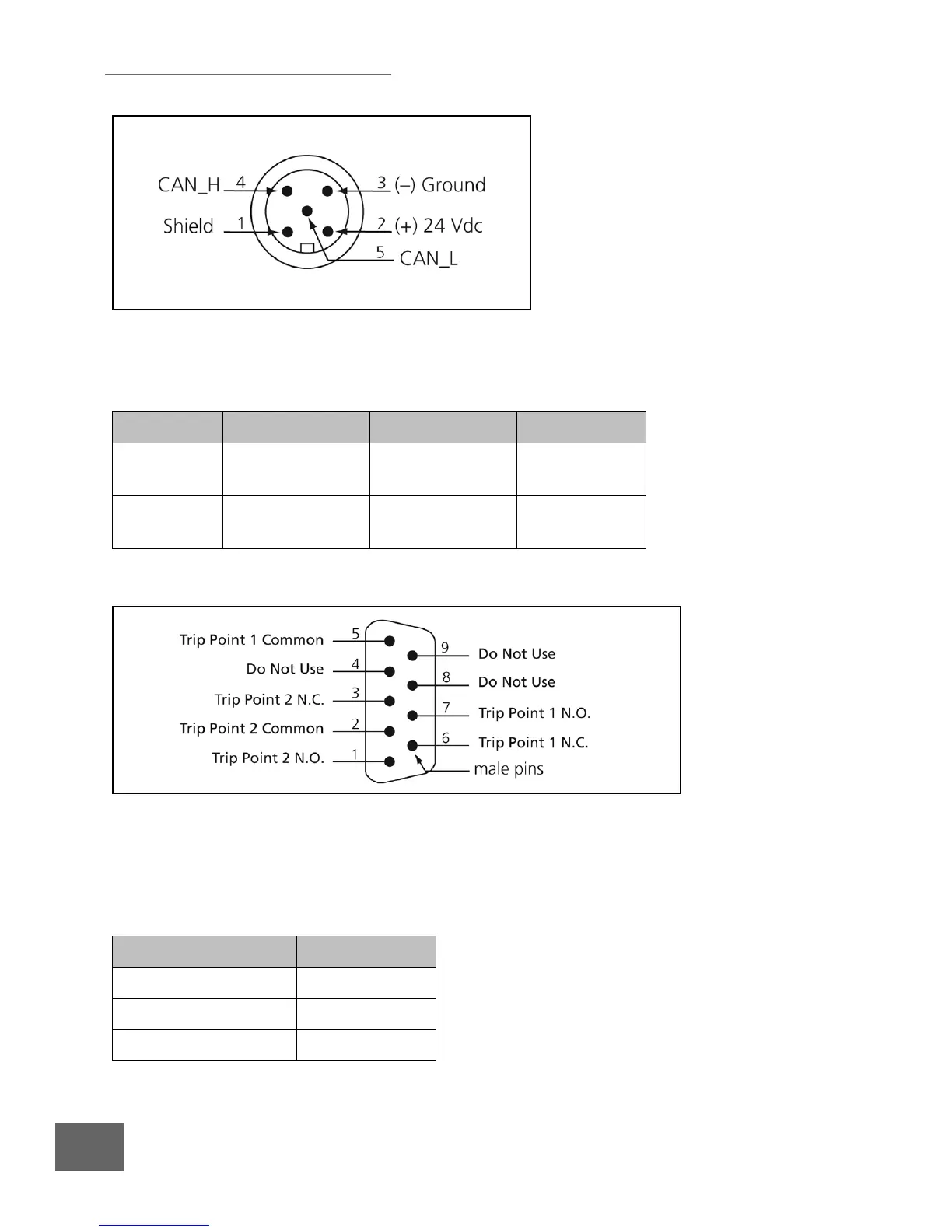

3.4.1 Wiring the Process Control Connector
Figure 3-2 DeviceNet Micro Connector
Table 3-1 DeviceNet Micro Connector Power Requirements
Input Voltage Surge Current Operating Current Pin Connection
26 Vdc 1.5 A, 8 ms 0.2 A Pin 2 = +Vdc
Pin 3 = -Vdc
11.5 Vdc 2.5 A, 8 ms 0.5 A Pin 2 = +Vdc
Pin 3 = -Vdc
Figure 3-3
Series 275 DeviceNet Mini-Convectron
Process Control Relay Connector
Table 3-2
Maximum Cable Length Relative to
Baud Rate Switch Settings
Maximum Cable Length Baud Rate Setting
500 meters 125 K
250 meters 250 K
100 meters 500 K (default)
