Mobotix Mx-M26B - Dimensions of Wall Mount; Drilling Template Wall and Ceiling Mount

19
Delivered Parts and Dimensions

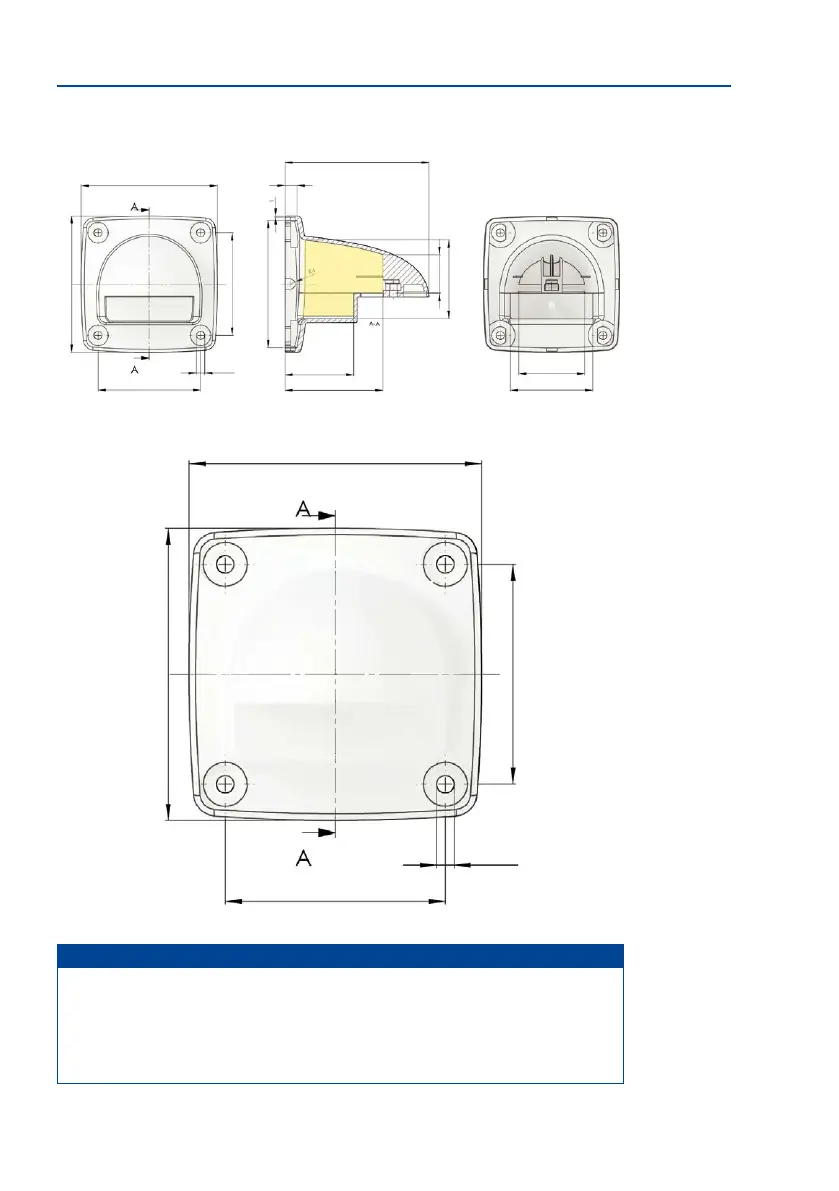

1.4.4 Dimensions of Wall Mount
1.4.5 Drilling Template Wall and Ceiling Mount
Note
You can download the drilling template from www.mobotix.com, Support > Download
Center > Documentation > Drilling Templates.
Make sure that the drilling template is not scaled or adjusted to the paper size when
printing the PDF le (enlarged or reduced).
With the ceiling mount*,
the size of the contact
surface is identical to the
wall/ceiling and to the
position of the drill holes.
*Only in delivery if
included in initial order!
106.5 mm/4.19 in
113 mm/4.45 in
55 mm/2.17 in
77 mm/3.03 in
51.5 mm/2.03 in
64.5 mm/2.54 in
80 mm/3.15 in
ø 6.4 mm/
0.25 in
106.5 mm/4.19 in
80 mm/3.15 in
99.5 mm/3.92 in
61.5 mm/2.42 in
30 mm/1.18 in
106.5 mm/4.19 in
80 mm/3.15 in
80 mm/3.15 in
106.5 mm/4.19 in
ø 6.4 mm/
0.25 in
