M26 Camera Manual: Installation

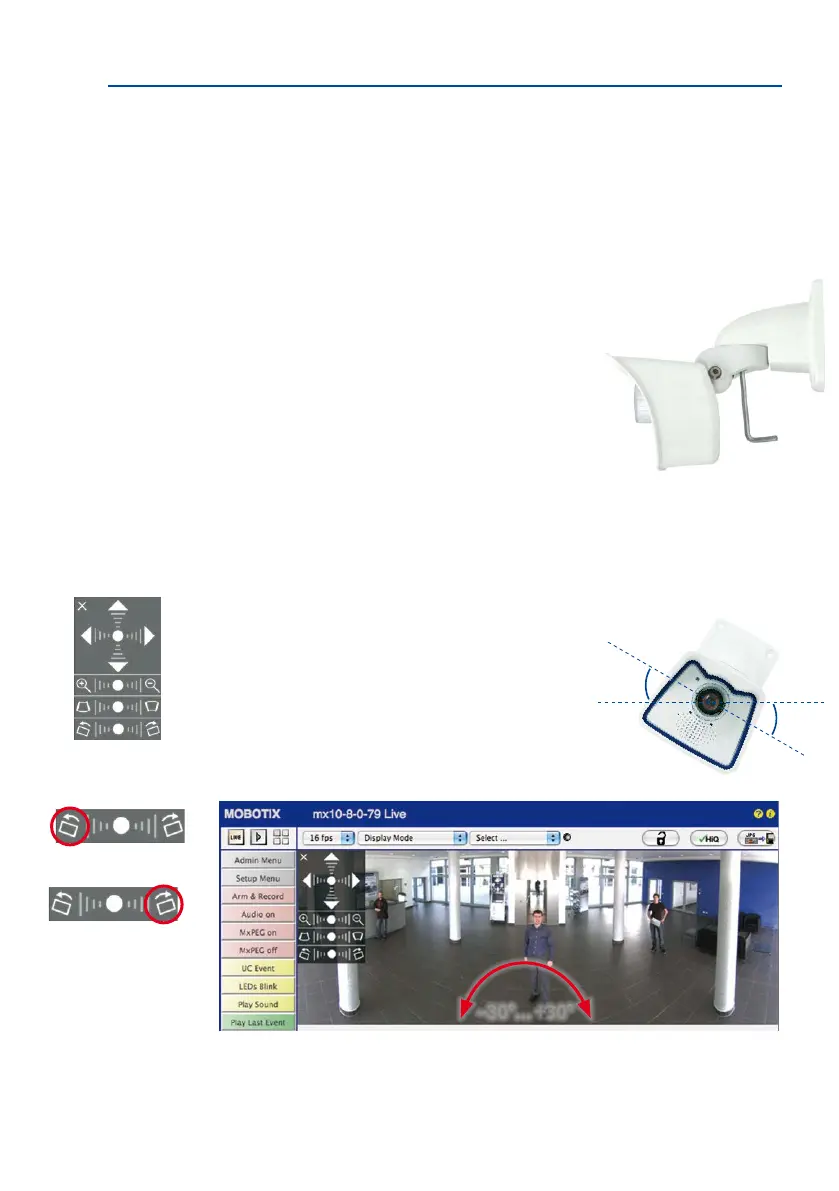

2.5 Adjusting the Camera and Exchanging the Lens
2.5.1 Adjusting the Camera
1. Establish a connection to the camera as described in Section 3.2, «First Images and the
Most Important Settings». The live image from the camera should be visible on the
computer monitor.
2. Loosen the screws on the VarioFlex mount using the
supplied Allen wrench so that you can easily turn and
tilt the camera.
3. Display the desired camera section on the computer
monitor, then turn and tilt the camera until you have
found the best position and sharpness. Retighten the
screws of the VarioFlex mount to prevent the position
of the camera from changing.
4. If required, clean the lens cap’s surfaces using a clean,
lint-free cotton cloth.
2.5.2 Correcting the Image Horizon (for B016 Lens Only)
The M26-Sec with hemispheric B016 lens allows the correc-
tion of an uneven image horizon via OnScreen Control that
was possibly caused by the installation position. The image
horizon can be adjusted by up to 30 degrees clockwise or
counterclockwise and can be optically straightened by clicking
on the corresponding icons (see image).
For more detailed infor-
mation on the OnScreen
Control, see Section 3.5
Horizontal correction
Rotate image up to -30°
Rotate image up to +30°
-30°
+30°
–30°... +30°
