M26 Camera Manual: Product Overview

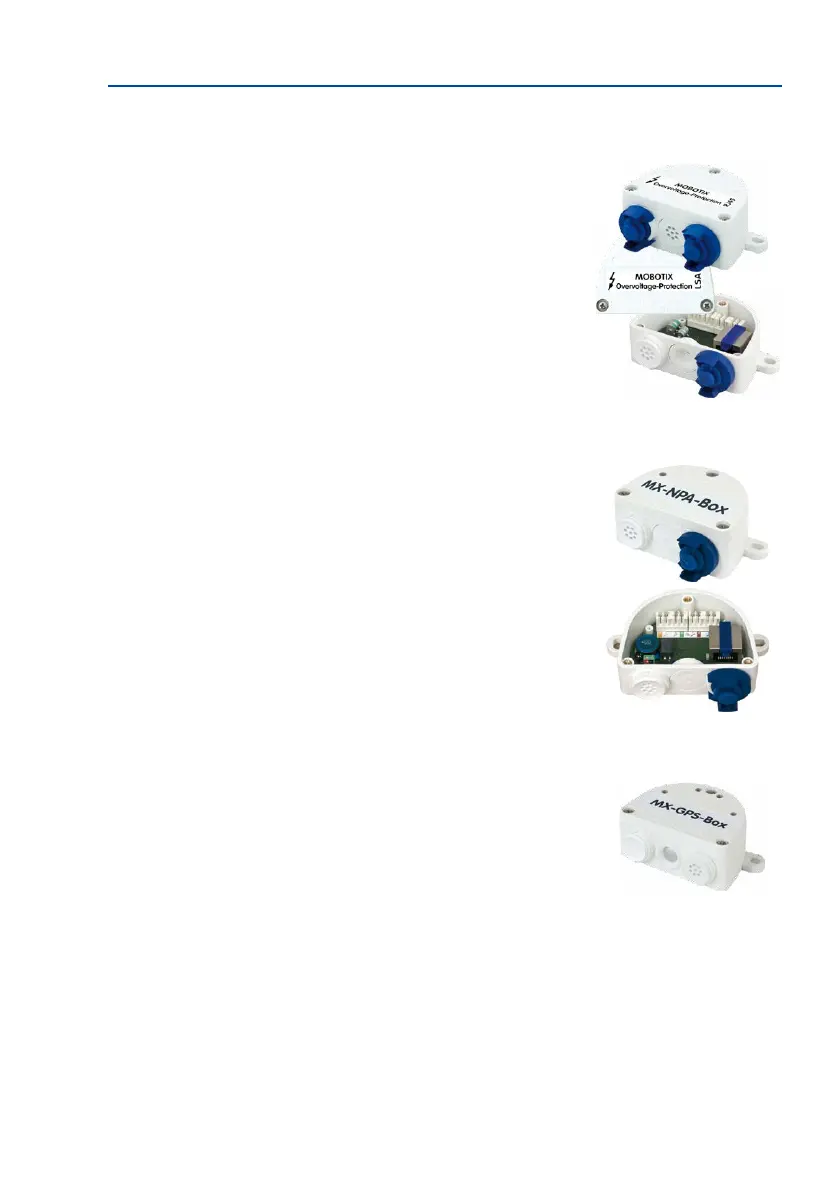

1.5.8 MX-Overvoltage-Protection-Box
Order no.: MX-Overvoltage-Protection-Box-RJ45
Order no.: MX-Overvoltage-Protection-Box-LSA
Weatherproof network connector (protection class IP65,
–30 to 60 °C/–22 to 140 °F)
with surge protection of up
to 4 kV for MOBOTIX IP cameras
, ideal for replacing the
MX-Patch-Box.
At the same time, the MX-Overvoltage-Protection-Box
provides a weatherproof connection of a camera’s patch
cable to a network patch cable ( -RJ45 variant) or a network
installation cable ( -LSA variant).
1.5.9 MX-NPA-Box
Order no.: MX-OPT-NPA1-EXT
The MX-NPA-Box is a weatherproof PoE injector conforming
to the IEEE 802.3af standard and is designed to connect
external voltage sources (12 to 57 V DC) to a MOBOTIX camera.
The MX-NPA-Box is equipped with the Patch-Box’s weather-
proof and extremely compact exterior housing (protection
class IP65, –30 to 60 °C/–22 to 140 °F), which means it can
also be installed in the space of the Outdoor Wall Mount.
Interfaces of the MX-NPA-Box: Camera via patch cable,
Ethernet via LSA+ and external power supply via terminal
connector (12 to 57 V DC possible).
1.5.10 MX-GPS-Box
Order no.: MX-OPT-GPS1-EXT
The MX-GPS-Box primarily serves as a high-precision time
source for systems without an Internet connection. In addi-
tion, it can provide triggering based on GPS events (reach-
ing or moving away from a specied position; exceeding or
not reaching a specied speed). This interface box can be
attached to all MOBOTIX cameras with an MxBus interface.
The MX-GPS-Box is equipped with the same compact housing as the other interface boxes
(protection class IP65, –30 to 60 °C/–22 to 140 °F). This interface box should not be installed
inside of other wall mounts, but on the exterior of the building with a large section of open
sky above it. This ensures the best possible reception from GPS satellites and thereby the
highest possible accuracy of the received GPS data. The maximum length of the MxBus
wiring (0.8 mm diameter wires) is 50 m/55 yd.
