M26 Camera Manual: Installation
2.4.1 Pole Mount (MX-MH-SecureFlex-ESWS)
Using the pre-installed VarioFlex Wall Mount, which is secured to the pole mount simply
using four screws and nuts, the camera can be precisely panned, both horizontally and
vertically, to suit the area that is to be monitored.
When mounted to a pole, the camera can be turned or tilted as follows, just like wall installation:
• horizontally: 180°
• vertically: 110°

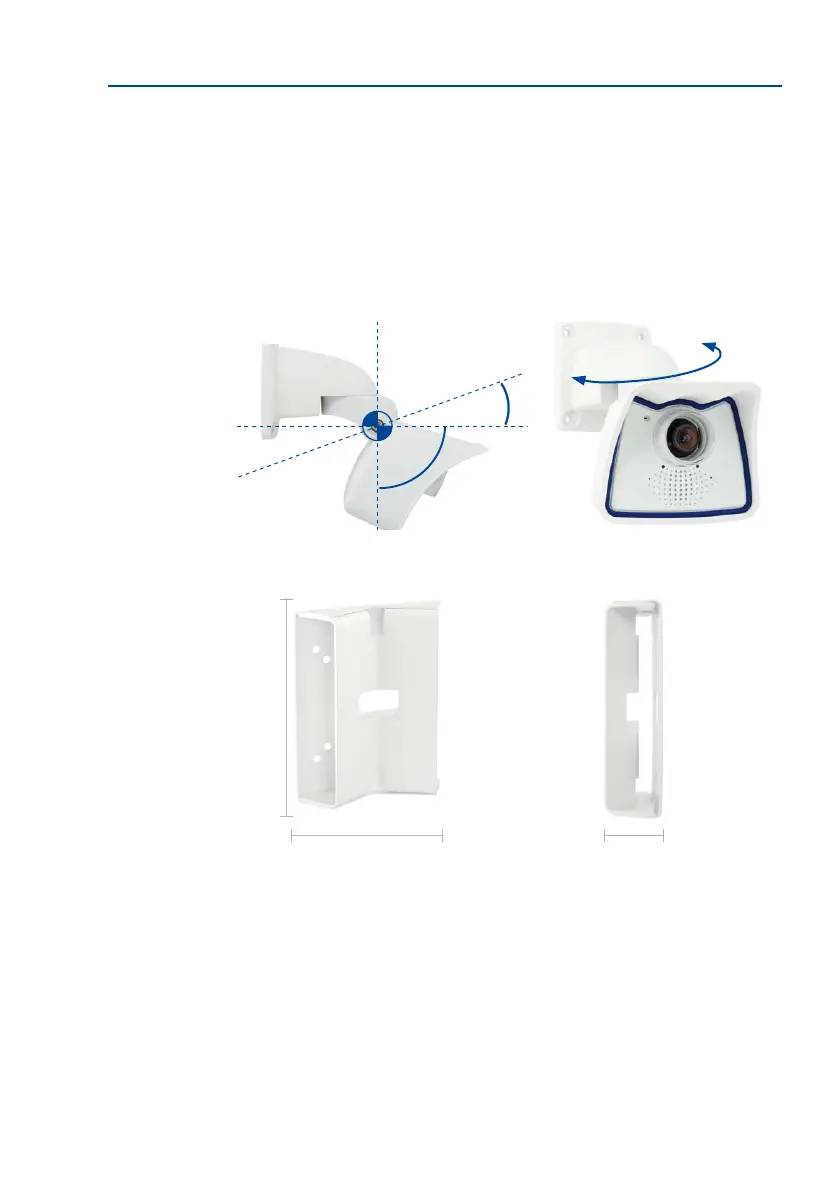

Pole Mount Dimensions
-90°
+20°
180°
Turning/tilting mounted
to pole:
• horizontally: 180°
• vertically: 110°
Height: 174 mm/6.85 in
Width: 140 mm/5.51 in Depth: 45 mm/1.77 in
