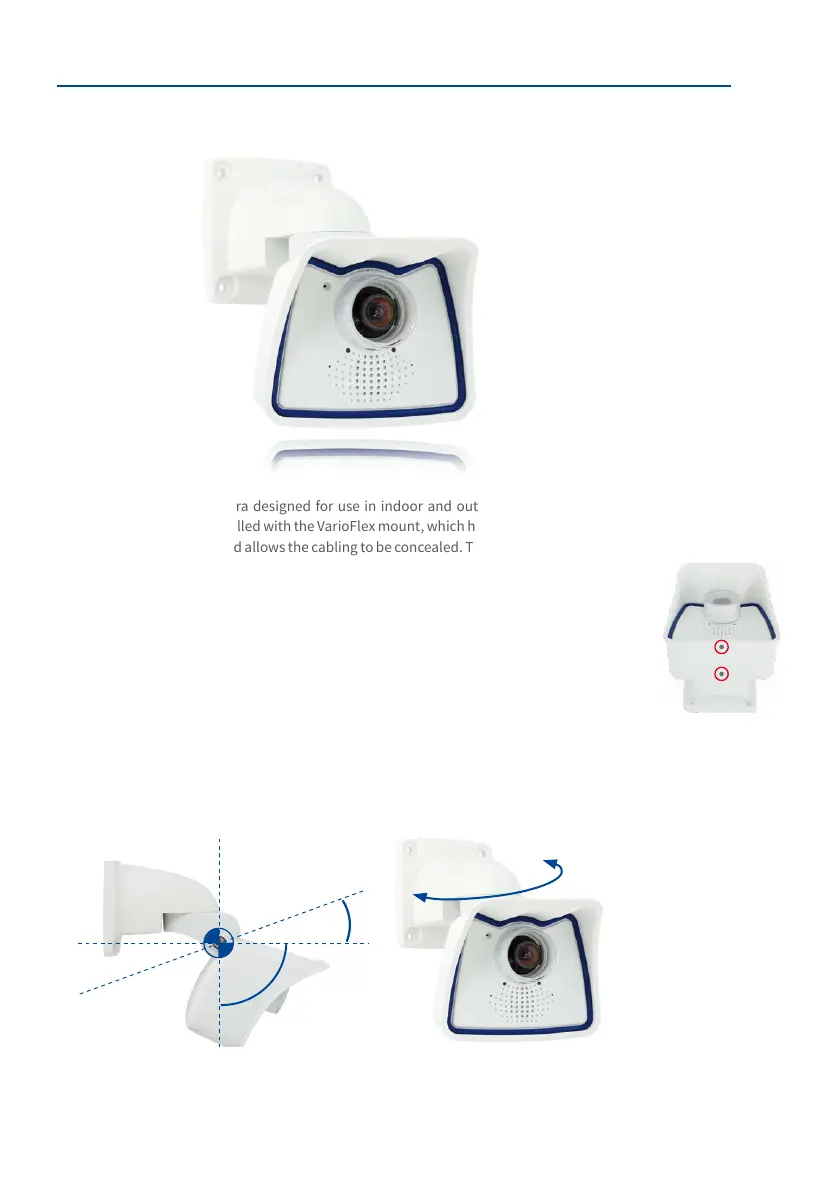

Mounting the Camera with Wall Mount
2.2 Mounting the Camera with Wall Mount
The M26 is a versatile camera designed for use in indoor and outdoor applications. The
camera must always be installed with the VarioFlex mount, which has been prepared at the
factory for wall mounting and allows the cabling to be concealed. The best camera position
for the selected lens must be found before mounting the camera to the wall (see Section 2.1.1,
«Mounting Options: Wall, Ceiling, Pole» and Section 2.1.2, «Mounting with Hemispheric Lens
B016»). Once the camera has been mounted to the wall, you can ne-tune its position.
Please read the notes on protecting the camera against condensation (see Section 3.6.1).
2.2.1 VarioFlex Wall Mount
Using the VarioFlex Wall Mount, the camera can be precisely panned, both horizontally and
vertically, to suit the area that is to be monitored.
When mounted to a wall, the camera can be turned or tilted as follows:
• horizontally: 180°
• vertically: 110°
See Section 3.6.1,
«Protecting the Camera
Against Condensation»
Turning/tilting mounted
to wall:
• horizontally: 180°
• vertically: 110°
-90°
+20°
180°
