Operating Instructions
3) Press the AUTOFIT button. The CT100 trace is now scaled to show the entire cable from
beginning to end. See Figure 6.
Mohr CT100 / CT100HF Operator's Manual 35

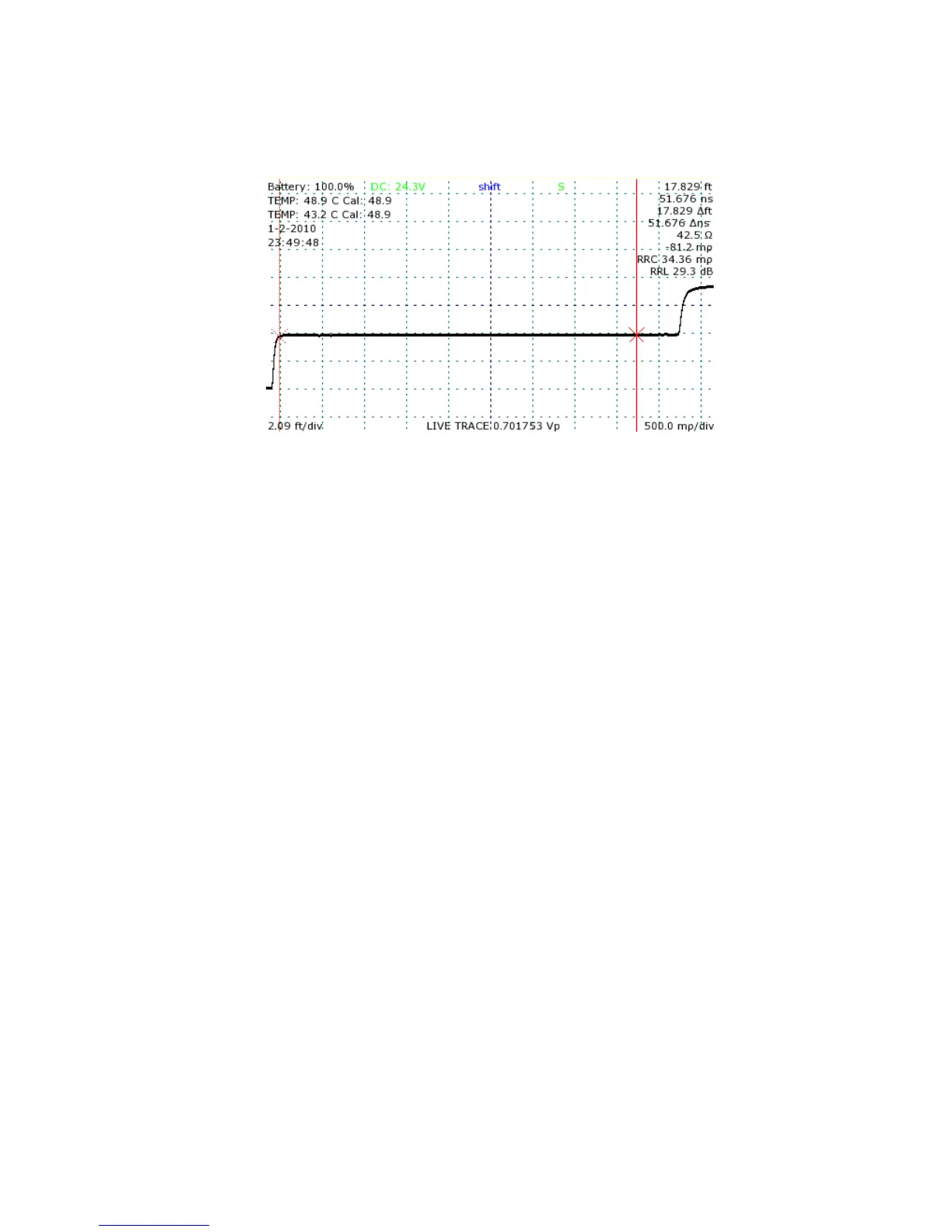

Figure 6: AUTOFIT cable. The cable termination is an open.
