Operating Instructions
Common types of cable faults

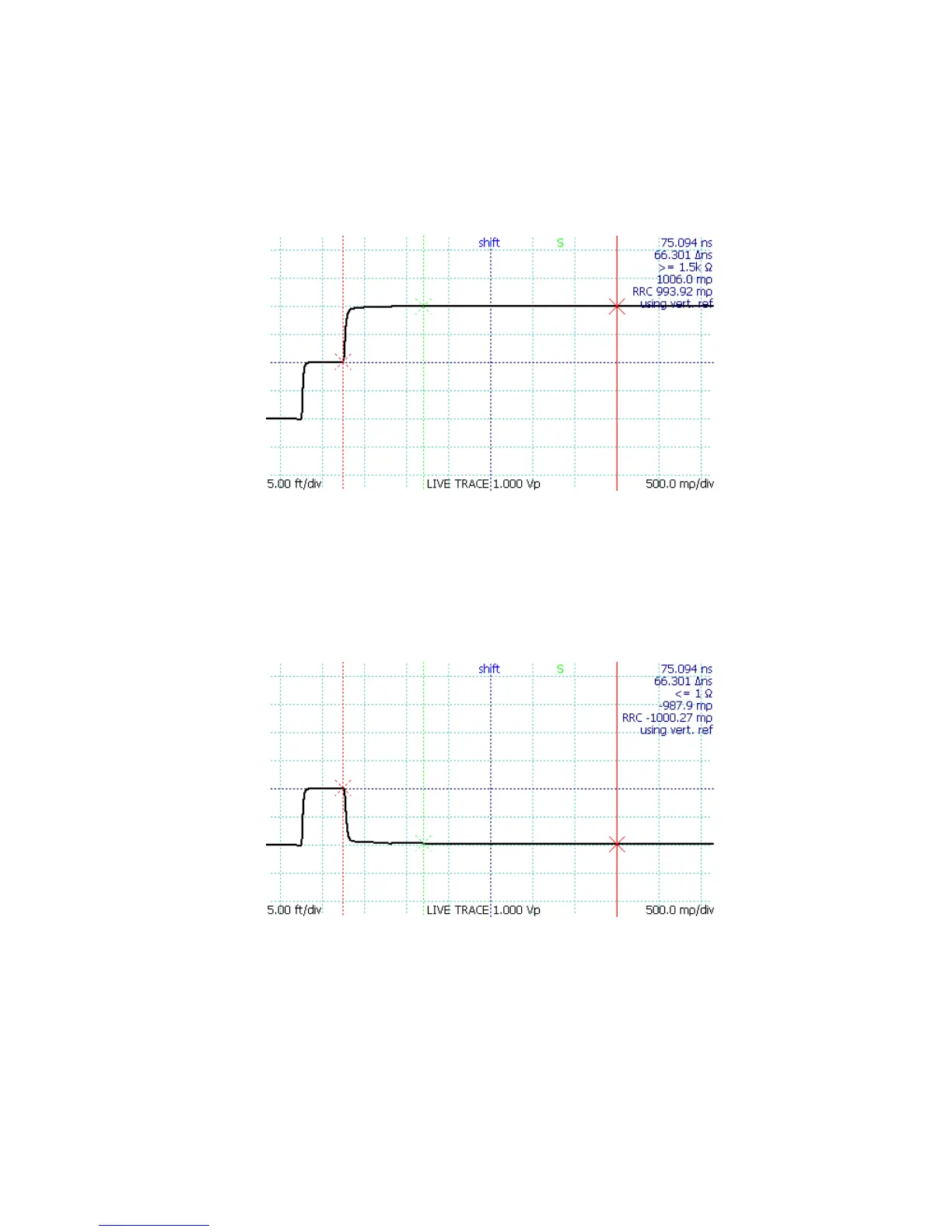

Open faults appear as a pulse upward in the trace (Figure 9):
Short faults appear as a pulse downward (Figure 10):
Mohr CT100 / CT100HF Operator's Manual 37
Figure 9: An open cable fault. The step pulse is completely
reflected by the open termination of the cable.
Figure 10: A short cable fault.
