larger enterprise deployment, multiple STAR domains exist in various locations and can require
one or more Master Controllers in a clustered configuration.
2.2 STAR: Physical Interfaces
The following picture illustrates the STAR’s physical interfaces.

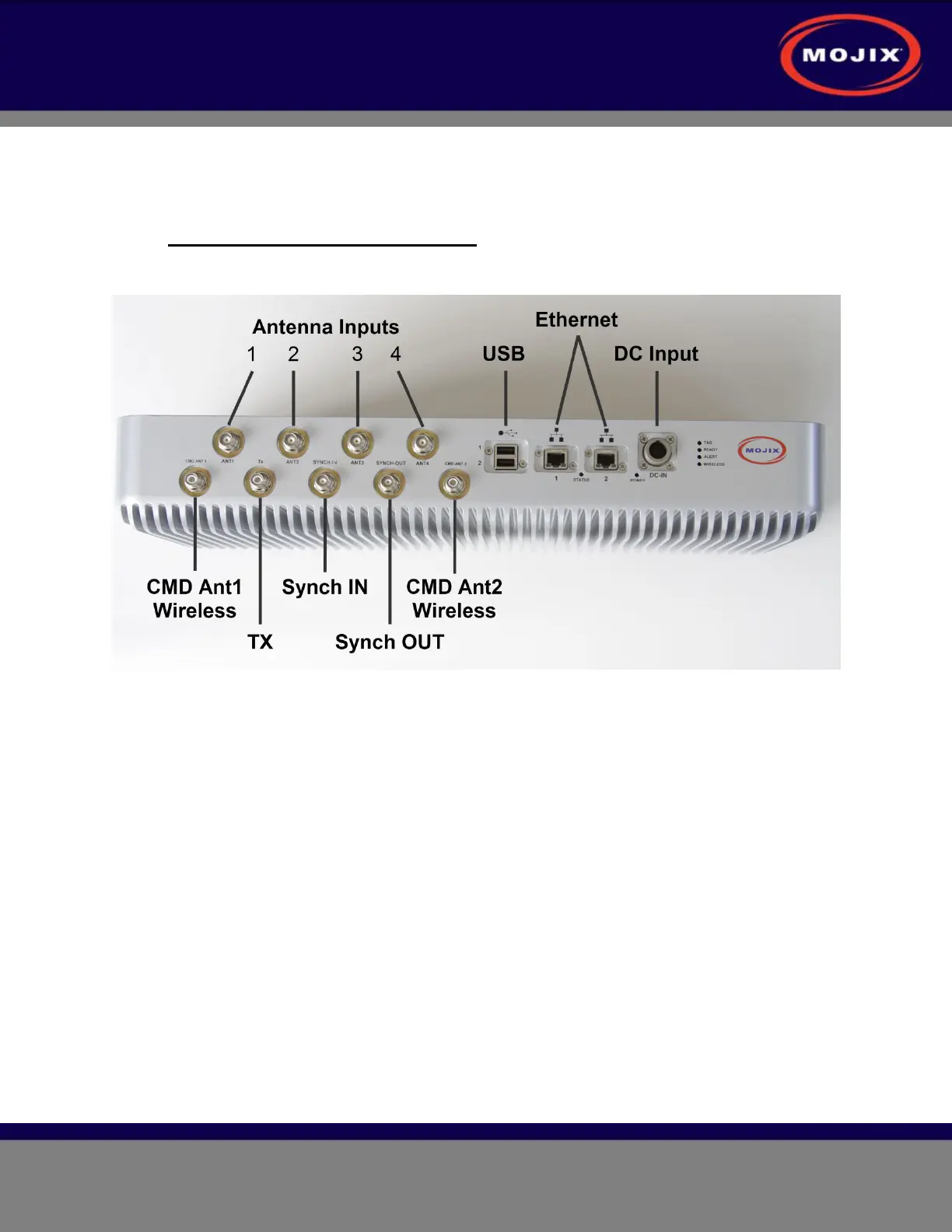

Figure 2: STAR Physical Interfaces
• 1 TX Output TNC: Transmit RF Signal, 24 Volts DC, Forward Command Signal
• 2 TX Output TNC for Wireless eNode Network: Up to two wireless forward command
antenna(s)
• 4 RX Input TNC from Antenna(s): Inputs from receive antenna array OR individual receive
antenna(s)
• 1 RX Input TNC Sync: Input synchronization signal from master STAR (for multiple
simultaneous receiving)
• 1 TX Output TNC Sync: Output synchronization signal to another STAR
• 2 Ethernet Interfaces: Control from MCON, Status Monitoring and Tag Read Packets
• 2 USB Interfaces (future use)
• 1 DC Power Connector
