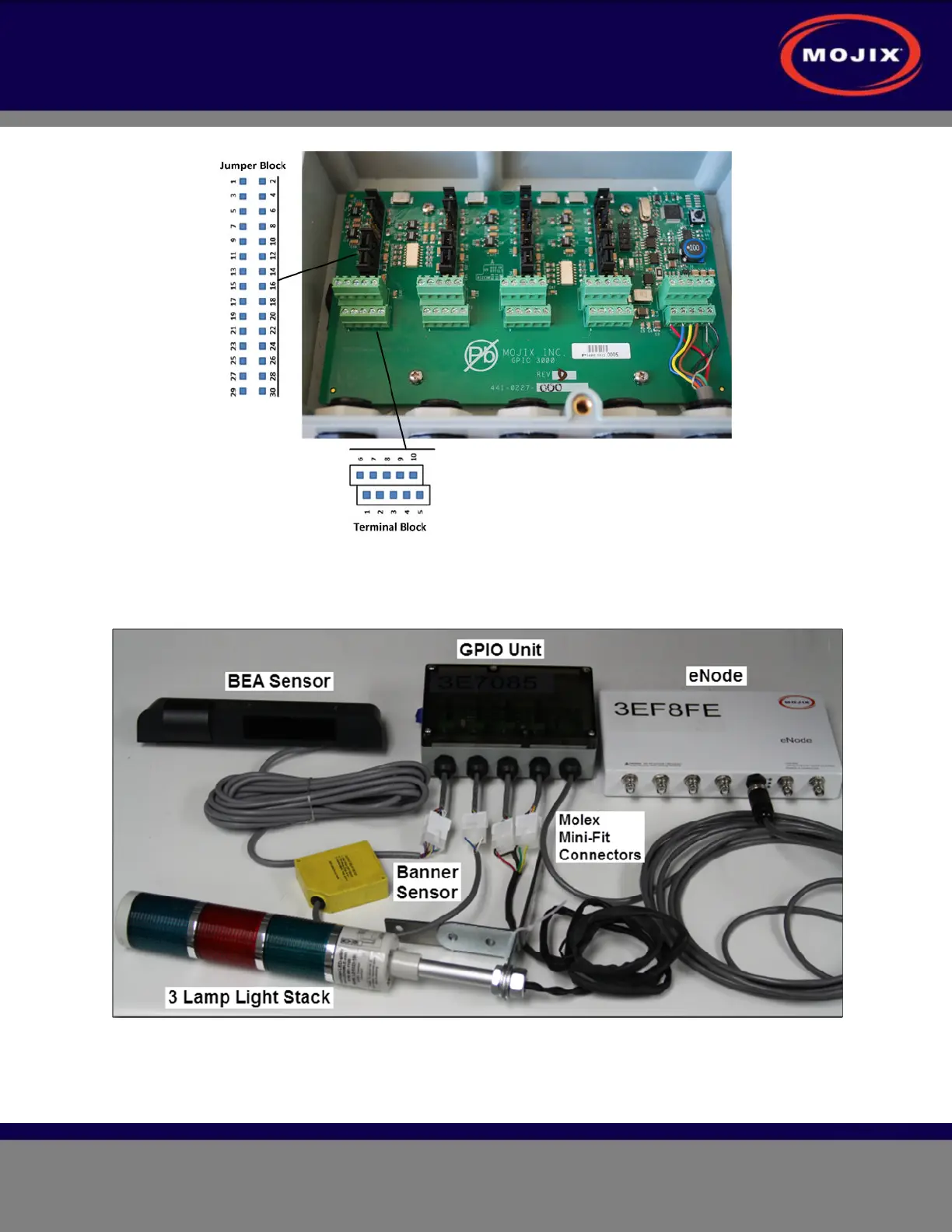

Figure 18: GPIO Unit Jumper Blocks
The eNode uses an RS-485 type connection to both power and command the GPIO unit. The
following figure illustrates how this connection is made.
Figure 19: GPIO/eNode Physical Interface
Installers will need the following set of tools to perform a proper GPIO installation:
