8 GPIO Installation
The GPIO or General Purpose Input/Output is an interface card that connects different types of
sensors and actuator devices such as infrared presence sensors and light stacks to an eNode.
The GPIO unit is powered by an interfacing cable from the eNode. The GPIO unit (as shown in
the figure below) has a unique ID which is added to the configuration of the Mojix MCON
software. Each sensor connected to the GPIO unit has a position ID within the GPIO and this ID
is mapped to the eNode in the MCON software.

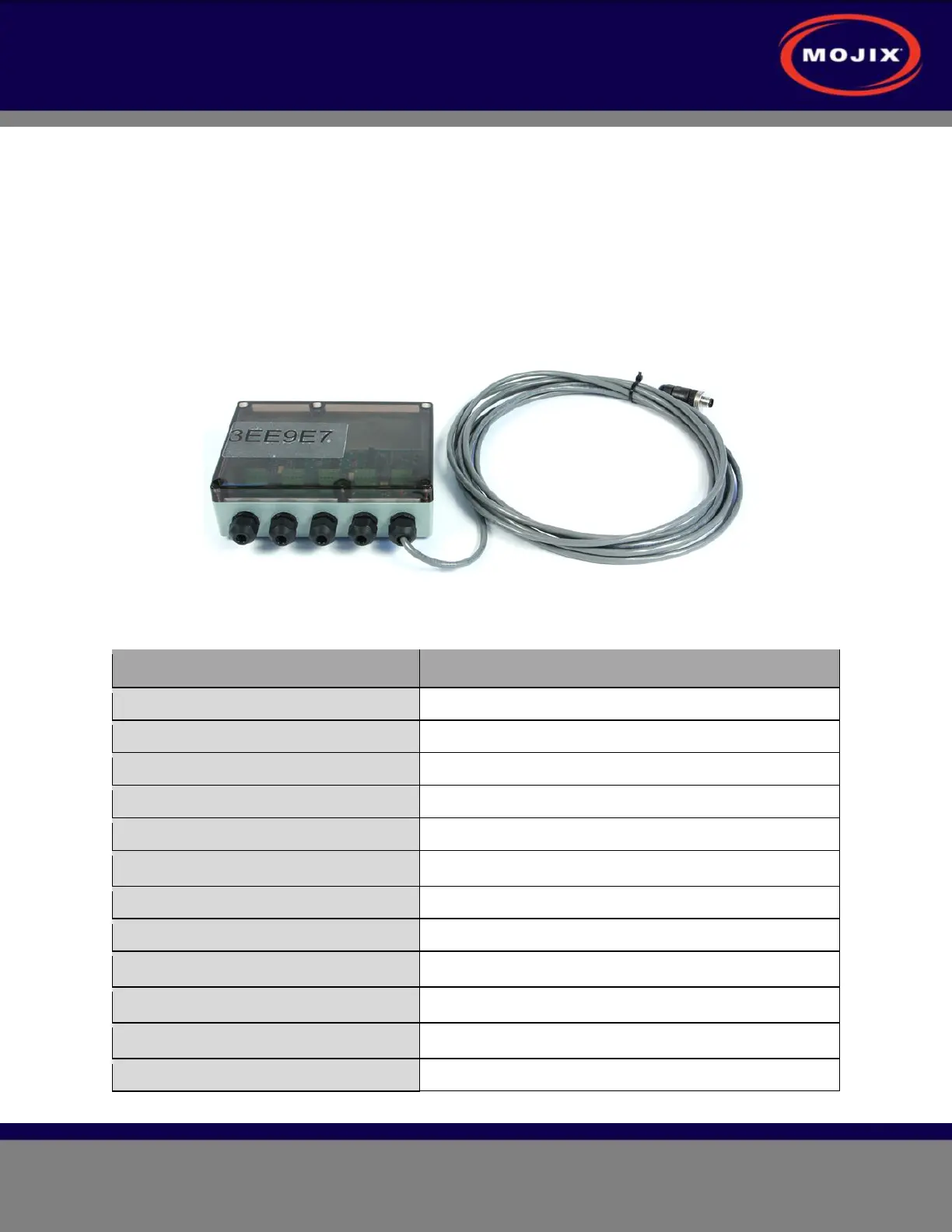

Figure 16: GPIO Unit with RS-485 Cable
The GPIO operating specifications are noted below.
Specification Type Description
Part Number:
GPO-3008-W
Input Power:
24 VDC and 5 VDC from eNode
Dimensions (L x W x H):
7.08” x 4.92” x 2.2” (18.0cm x 12.5cm x 5.6cm)
Weight:
Operating Temperature:
-40°C to +85°C
Humidity:
5 – 95% non-condensing
Environmental Rating:
IP65
Regulatory Compliance:
FCC Part 15, EN 60950, EN 50364, EN 301 489-1, EN
Maximum Transmit Power:
Compliant with local regulations
Physical Interfaces:
Terminal lugs
Mounting Configuration:
Built-in mounting ears, mounting hardware included
Maximum cable length from eNode
