7 eXpander Installation
The eXpander module provides a cost effective means of increasing antenna densities by
expanding the total number of antennas from 4 to 16 per eNode as depicted in the drawing
below. The eXpander offers a smaller form factor to help simplify deployments and further
reduce installation costs. The interfaces are detailed in the figure below.

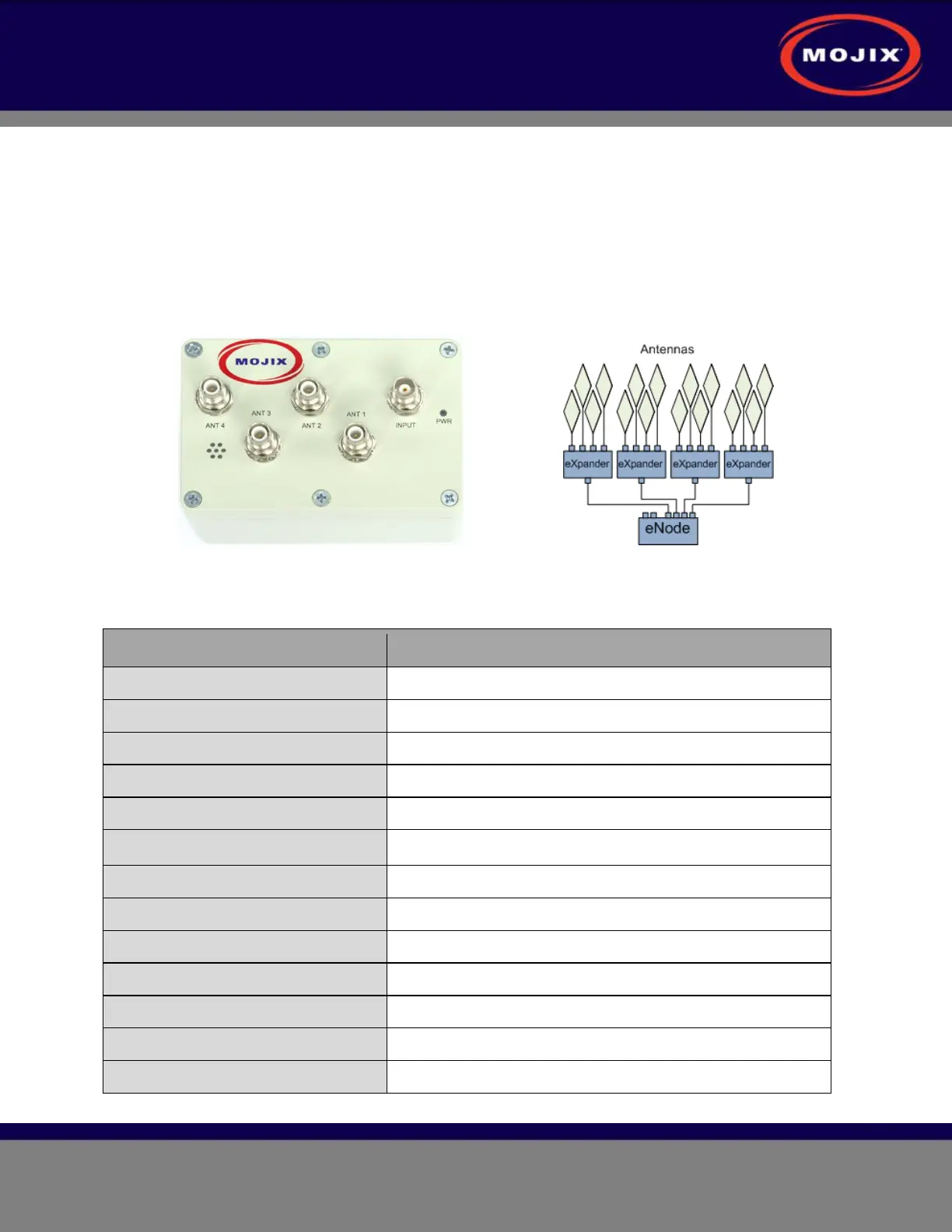

Figure 12: eXpander Interfaces
The eXpander operating specifications are noted below.
Specification Type Description
Part Number:
EXP
-
3004
-
W
Maximum Power Consumption:
0.75 Watts
Insertion Loss:
1.8 dB
Input Connector:
TNC Female
Output Connectors:
TNC-RP Female
Termination:
Required only on used ports
Dimensions (L x W x H):
4.8” x 3.2” x 2.2” (12.1cm x 8.1cm x 5.6cm)
Weight:
0.5 lbs (0.23 kg)
Mounting Configuration:
Includes 2 brackets
Frequency:
850 to 950 MHz
Operating Temperature:
-30°C to +60°C
Storage Temperature:
-40°C to +85°C
Regulatory:
FCC Part 15 (in process), IEC 60950 (in process)
