STAR™ 3000 / eNode3000 User Manual
Mojix Incorporated
Page
22
www.mojix.com
(877) 886-6549

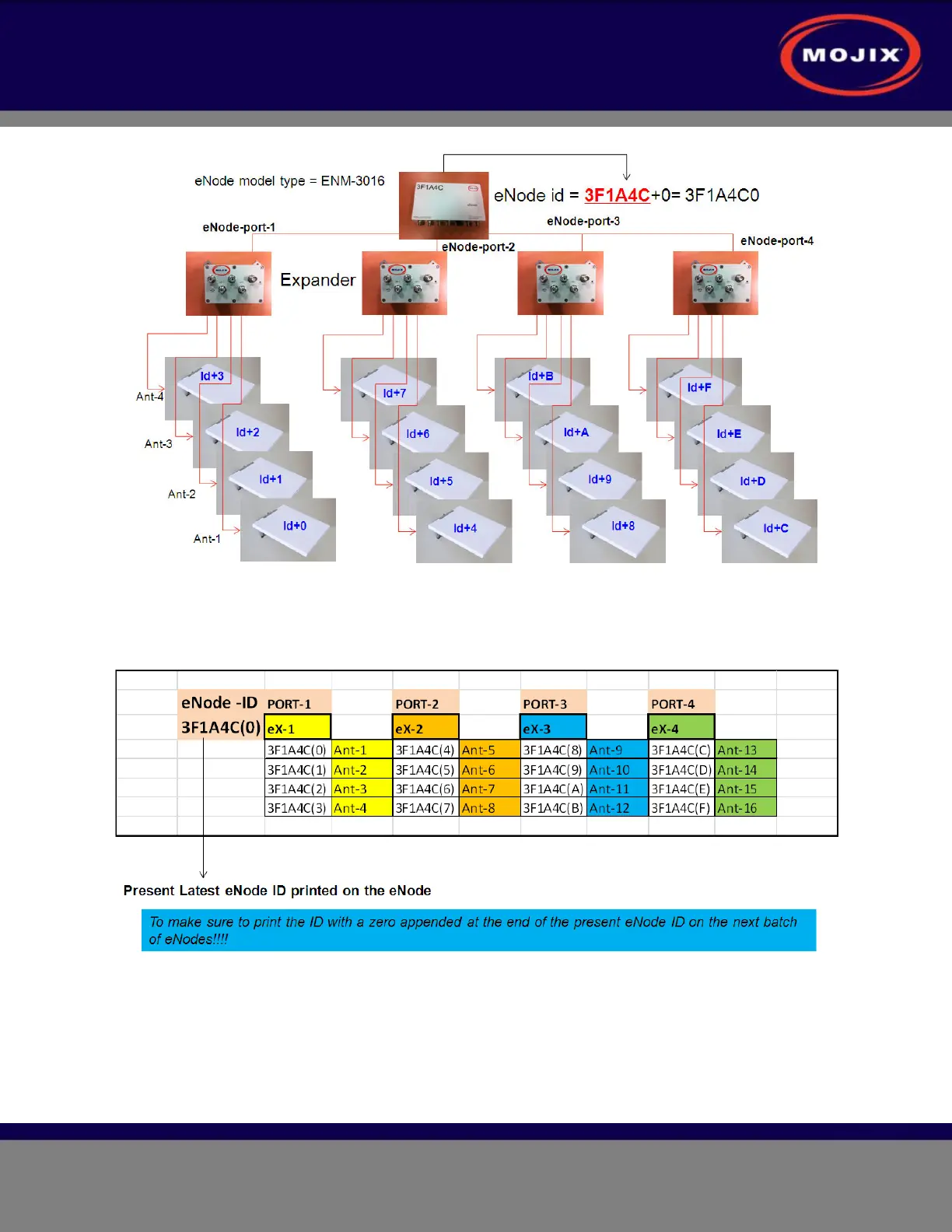

Figure 14: eNode ID Address Update
7.1.3 eNode to eXpander Exciter ID Encoding
Figure 15: eNode ID to eXpander Exciter ID Encoding
