2.3 Cabled System Topology

The following figure shows the components of the STAR system topology. The system

components are as follows:

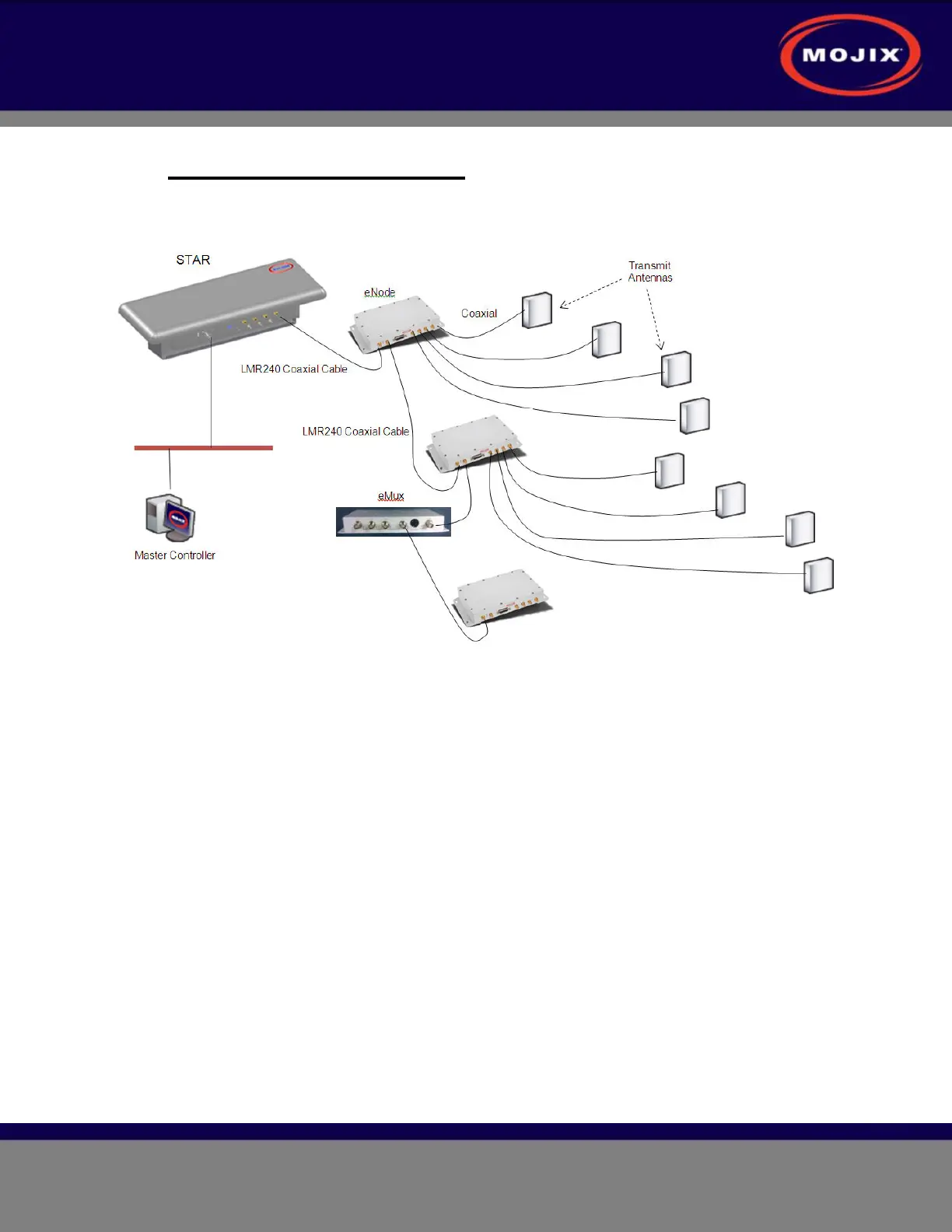

Figure 3: STAR System Topology

System Components

1. STAR

2. eMux: splitter and amplifier for the RF signal

3. eNode: controls up to 4 antennas to excite tags

4. Master Controller (MCON): application appliance

5. (Optional) Sensor network to detect activity in specific areas
