Installation
34 0112-0115 F

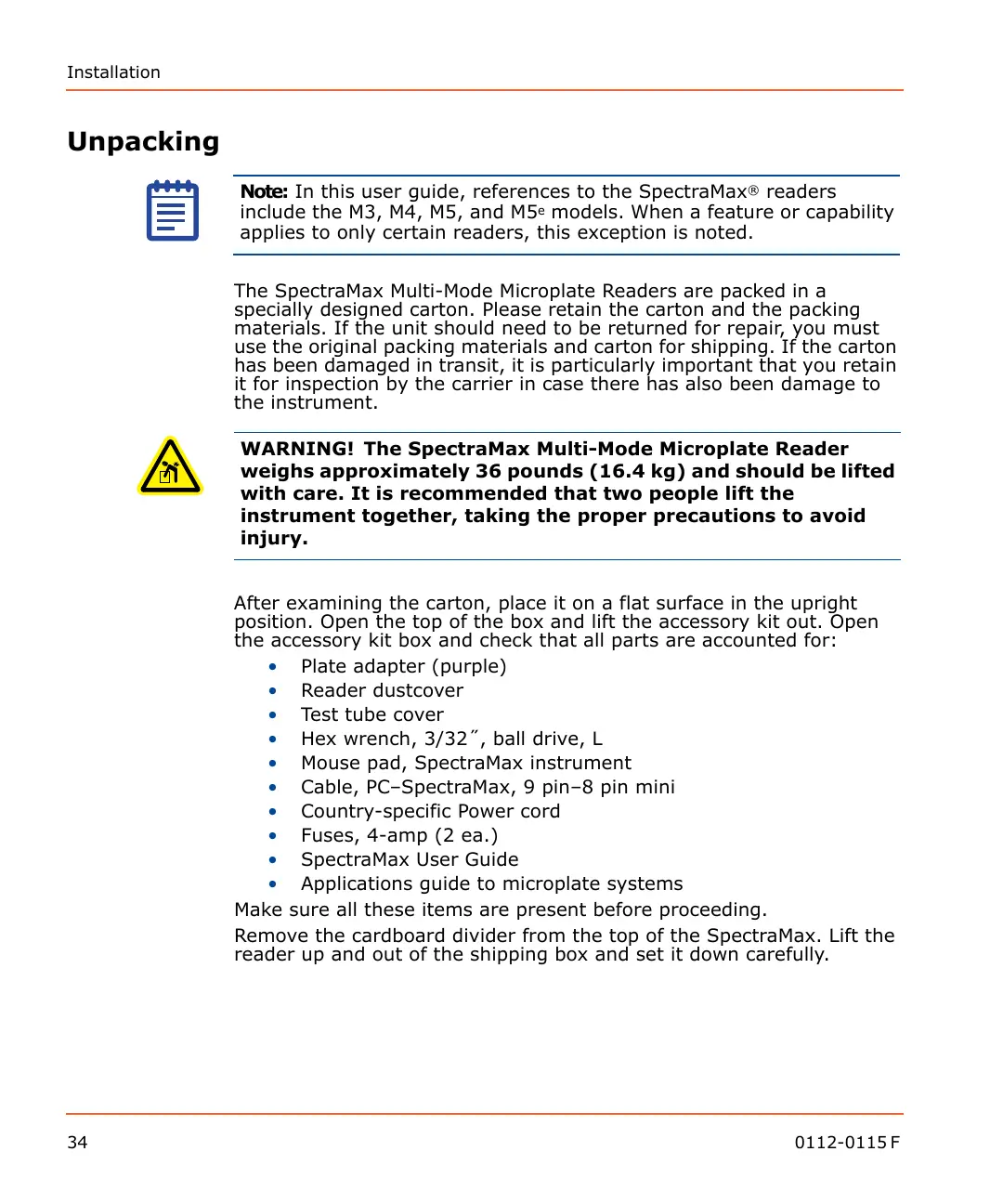

Unpacking
The SpectraMax Multi-Mode Microplate Readers are packed in a
specially designed carton. Please retain the carton and the packing
materials. If the unit should need to be returned for repair, you must
use the original packing materials and carton for shipping. If the carton
has been damaged in transit, it is particularly important that you retain
it for inspection by the carrier in case there has also been damage to
the instrument.
After examining the carton, place it on a flat surface in the upright
position. Open the top of the box and lift the accessory kit out. Open
the accessory kit box and check that all parts are accounted for:
• Plate adapter (purple)
• Reader dustcover
• Test tube cover
• Hex wrench, 3/32˝, ball drive, L
• Mouse pad, SpectraMax instrument
• Cable, PC–SpectraMax, 9 pin–8 pin mini
• Country-specific Power cord
• Fuses, 4-amp (2 ea.)
• SpectraMax User Guide
• Applications guide to microplate systems
Make sure all these items are present before proceeding.
Remove the cardboard divider from the top of the SpectraMax. Lift the
reader up and out of the shipping box and set it down carefully.
Note: In this user guide, references to the SpectraMax
®
readers
include the M3, M4, M5, and M5
e
models. When a feature or capability
applies to only certain readers, this exception is noted.
WARNING! The SpectraMax Multi-Mode Microplate Reader
weighs approximately 36 pounds (16.4 kg) and should be lifted
with care. It is recommended that two people lift the
instrument together, taking the proper precautions to avoid
injury.
