Molecular Devices SpectraMax M3 User Manual

SpectraMax M3, M4, M5, and M5
e
Multi-Mode Microplate Readers
0112-0115 F 79

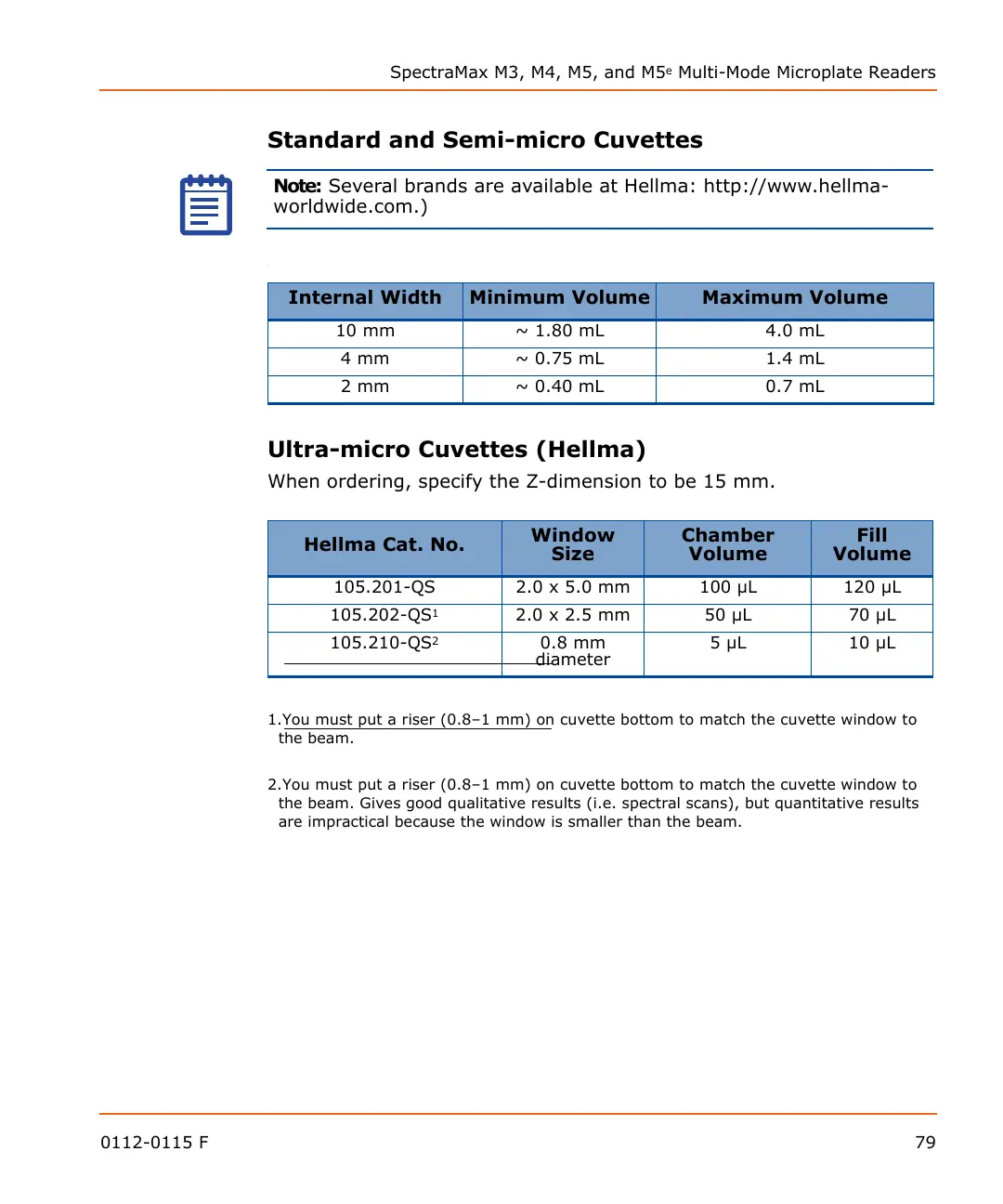

Standard and Semi-micro Cuvettes
.
Ultra-micro Cuvettes (Hellma)
When ordering, specify the Z-dimension to be 15 mm.
Note: Several brands are available at Hellma: http://www.hellma-
worldwide.com.)
Internal Width Minimum Volume Maximum Volume
10 mm ~ 1.80 mL 4.0 mL
4 mm ~ 0.75 mL 1.4 mL
2 mm ~ 0.40 mL 0.7 mL
Hellma Cat. No.
Window
Size
Chamber
Volume
Fill
Volume
105.201-QS 2.0 x 5.0 mm 100 µL 120 µL
105.202-QS
1
1.You must put a riser (0.8–1 mm) on cuvette bottom to match the cuvette window to
the beam.
2.0 x 2.5 mm 50 µL 70 µL
105.210-QS
2
2.You must put a riser (0.8–1 mm) on cuvette bottom to match the cuvette window to
the beam. Gives good qualitative results (i.e. spectral scans), but quantitative results
are impractical because the window is smaller than the beam.
0.8 mm
diameter
5µL 10µL
