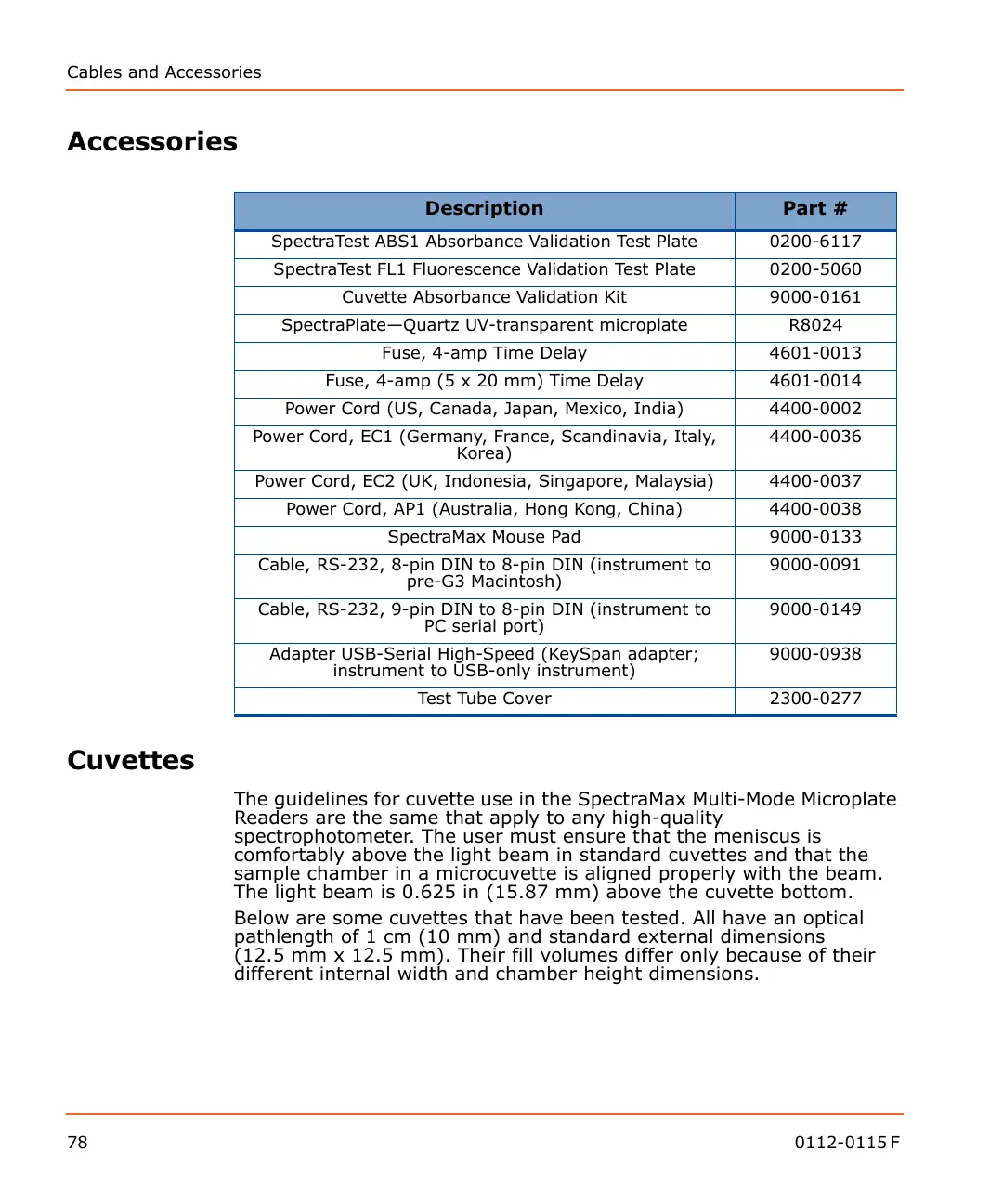

Cables and Accessories
78 0112-0115 F
Accessories
Cuvettes
The guidelines for cuvette use in the SpectraMax Multi-Mode Microplate
Readers are the same that apply to any high-quality
spectrophotometer. The user must ensure that the meniscus is
comfortably above the light beam in standard cuvettes and that the
sample chamber in a microcuvette is aligned properly with the beam.
The light beam is 0.625 in (15.87 mm) above the cuvette bottom.
Below are some cuvettes that have been tested. All have an optical
pathlength of 1 cm (10 mm) and standard external dimensions
(12.5 mm x 12.5 mm). Their fill volumes differ only because of their
different internal width and chamber height dimensions.
Description Part #
SpectraTest ABS1 Absorbance Validation Test Plate 0200-6117
SpectraTest FL1 Fluorescence Validation Test Plate 0200-5060
Cuvette Absorbance Validation Kit 9000-0161
SpectraPlate—Quartz UV-transparent microplate R8024
Fuse, 4-amp Time Delay 4601-0013
Fuse, 4-amp (5 x 20 mm) Time Delay 4601-0014
Power Cord (US, Canada, Japan, Mexico, India) 4400-0002
Power Cord, EC1 (Germany, France, Scandinavia, Italy,
Korea)
4400-0036
Power Cord, EC2 (UK, Indonesia, Singapore, Malaysia) 4400-0037
Power Cord, AP1 (Australia, Hong Kong, China) 4400-0038
SpectraMax Mouse Pad 9000-0133
Cable, RS-232, 8-pin DIN to 8-pin DIN (instrument to
pre-G3 Macintosh)
9000-0091
Cable, RS-232, 9-pin DIN to 8-pin DIN (instrument to
PC serial port)
9000-0149
Adapter USB-Serial High-Speed (KeySpan adapter;
instrument to USB-only instrument)
9000-0938
Test Tube Cover 2300-0277
