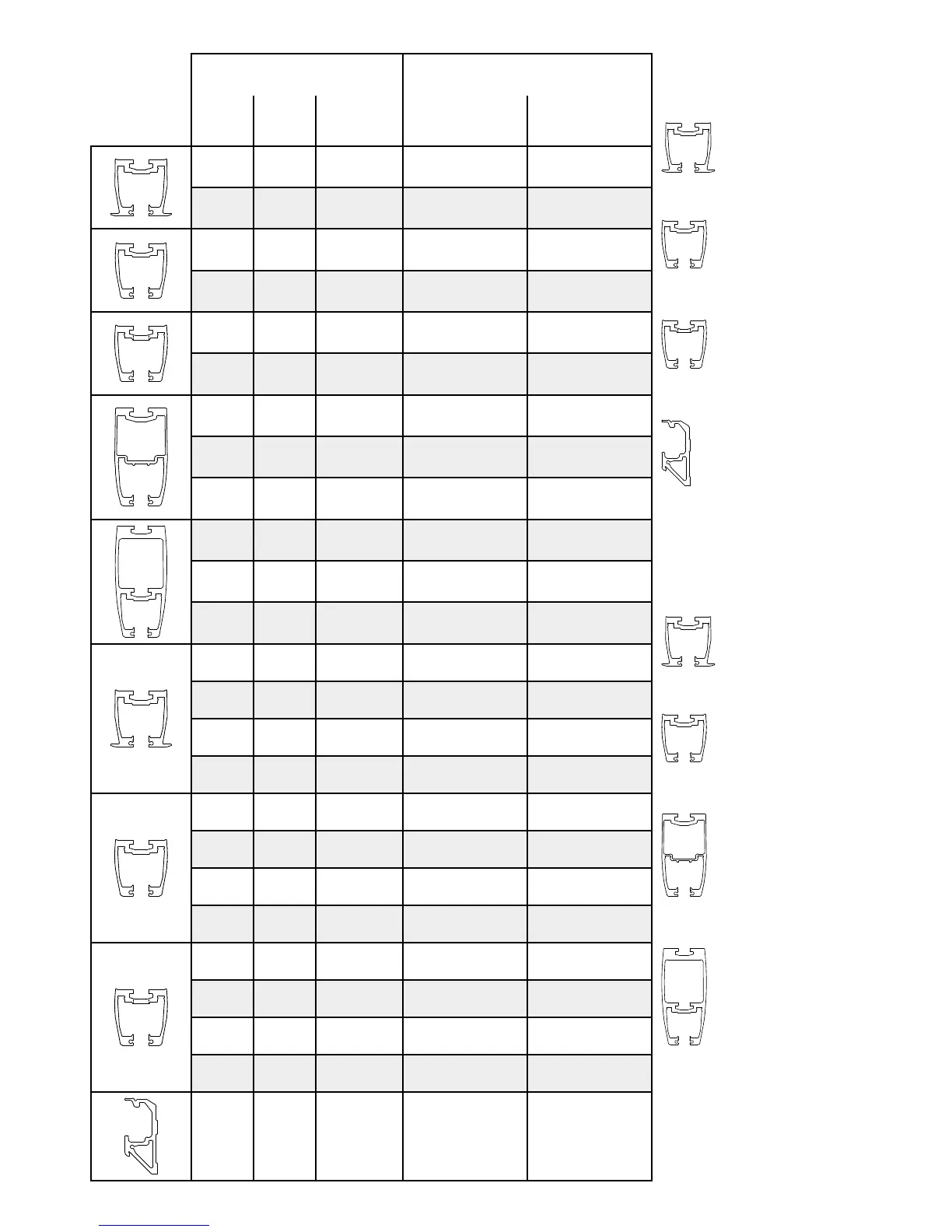

Rail profile Surface treatment
Height Profile
Length or
Curve
Anodized
(article no.)
Painted
(article no.)
H62 CC 6m 1109000-6m 110 9 0 01- 6m
H62 CC 7m 1109000-7m 110 9 0 01-7m
H62 OC 6m 110 9 0 02- 6 m 1109 0 03 - 6m
H62 OC 7m 110 9 0 02-7m 1109 0 03 -7m
H62 DC 6m 110 9 0 0 4 - 6 m 110 9 0 0 5 - 6m
H62 DC 7m 110 9 0 0 4 -7m 110 9 0 05 -7m
H112 OC 4m 1109 0 0 8 - 4m 1109009-4m
H112 OC 5m 110 9 0 0 8 -5 m 1109009-5m
H112 OC 6m 110 9 0 0 8 - 6m 1109009-6m
H142 OC 5m 1109010-5m 110 9 011-5m
H142 OC 6m 1109010-6m 110 9 011- 6 m
H142 OC 7m 1109010-7m 1109 011-7m
H62 CC 30° 1109100 1109105
H62 CC 45° 1109101 1109106
H62 CC 60° 1109102 1109107
H62 CC 90° 1109103 1109108
H62 OC 30° 110 913 0 110 9135
H62 OC 45° 1109131 110 9136
H62 OC 60° 1109132 110 9137
H62 OC 90° 1109133 110 913 8
H62 DC 30° 110 914 0 110 9145
H62 DC 45° 110 9141 110 914 6
H62 DC 60° 1109142 1109147
H62 DC 90° 1109143 110 914 8
H85 W 6m N/A 1109160
Rail profile
CC = Rail to be built into
closed ceiling
OC = Rail for open ceiling /
and mounting in rafters
DC = Rail to be mounted
directly in concrete ceiling
W = Rail for traverese
system, to be mounted
directly on wall
(H=85 W=36 mm)
Rail profile measurements:
H62 CC
H=62 W=67,3 mm
H62 OC
H=62 W=58,8 mm
H112 OC
H=112 W=61,7 mm
H142 OC = 142 mm
H=142 W=66 mm
Surface treatment
Anodized = Matte alloy
Painted = White
