5. Design Conditions
This chapter describes the design conditions, limi-
tations and possibilities how to combine the MRS
products to create a sufficient and safe Molift
Overhead System.
5.1 Lifting heights and lifting areas
Recommended heights
The Overhead system working height measures
between the lower point of the rail to which the
lift motor are attached (straight rail or secondary
rail) and down to the floor of the room. Normally
the recommendation is to position the rail from
2300mm to 4000 for a Molift AIR motor depend-
ing on the ceiling heights and lifting needs. We
recommend no lower than 1800mm from the
highest position of lifting point of the suspension
down to the floor.
To be able to lift a person from the floor it is
important that the distance from floor to lifting
point of suspension does not exceed 400 mm
when the suspension is at its lowest point as pic-
ture shows. The flexibility of MRS and Molift AIR
allows walking training as well as normal patient
transfers within these heights.

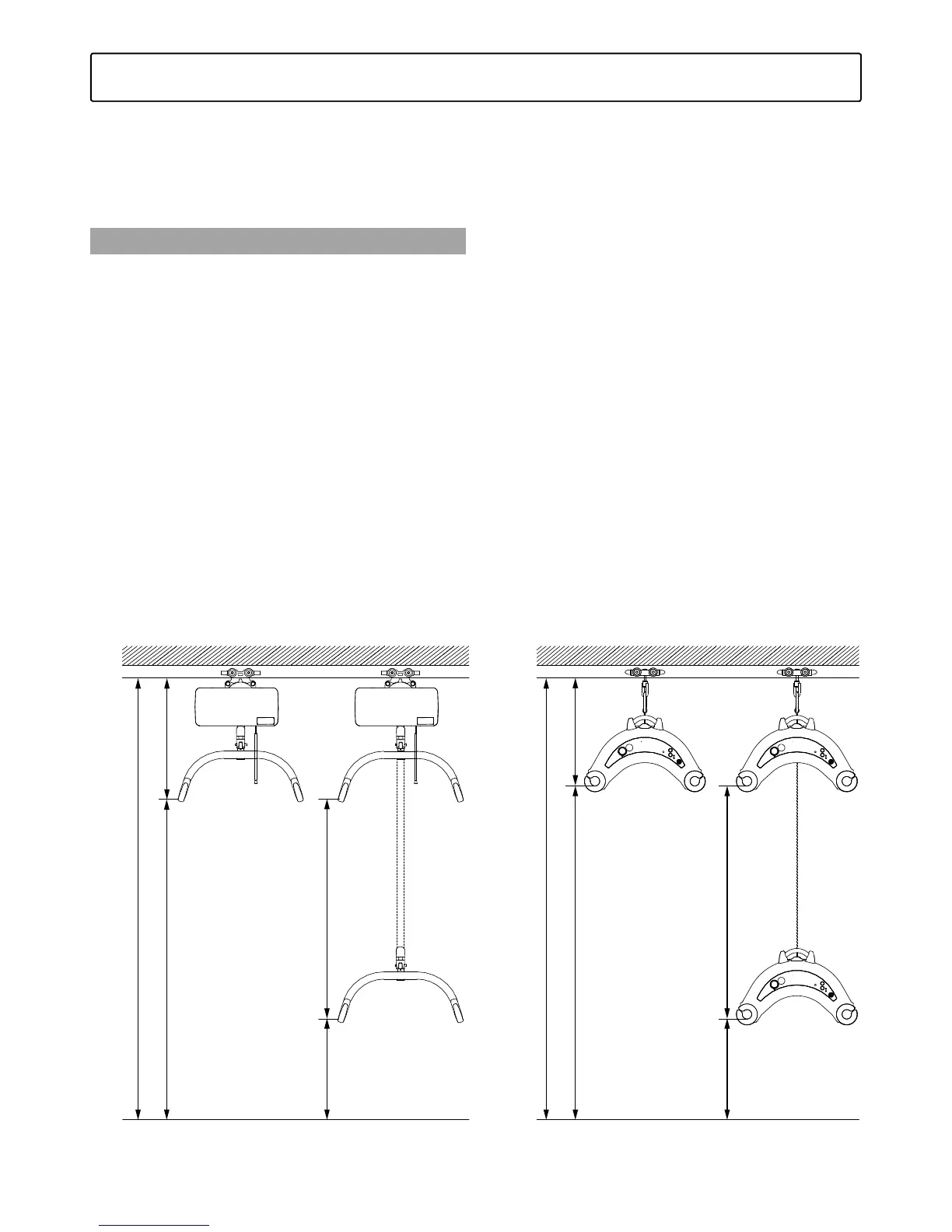

Lifting Interval
2000mm
Lifting Interval
3000mm
Max 400mm
Min 1800mm 500mm
510mm
2300-3000mm
2300-4000mm
Min 1800mm
Rail
Rail
Floor
Floor
Max 400mm
Molift Nomad
Molift AIR
(4-point Medium suspension)
