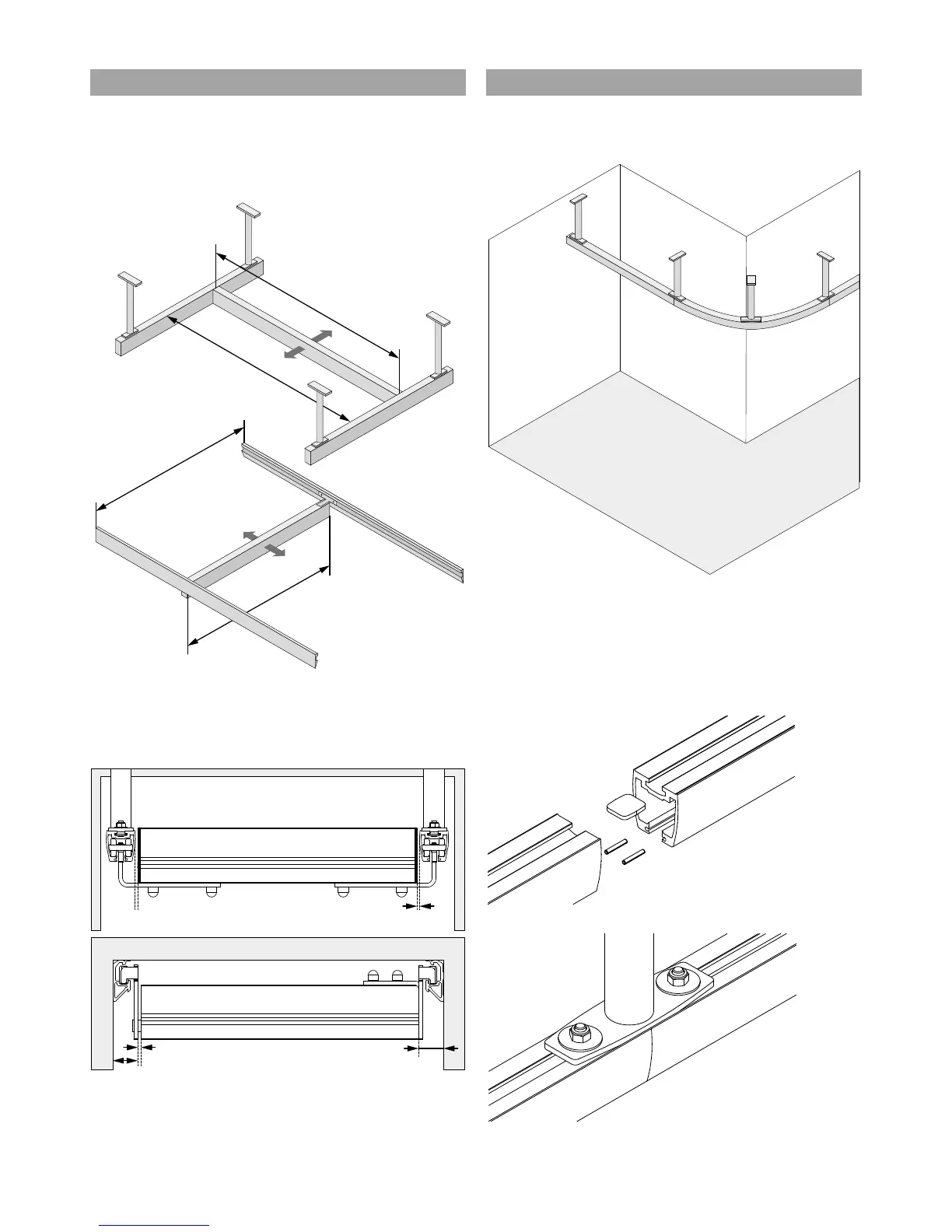

Secondary rail length
Length of Secondary rail (B) is determined by dis-
tance between primary rails (A) in a box-in-system,
or the distance between the wall rails (C) for a wall
mounted system.
C
A
B
B
Figure: Secondary rail (B) length
Box in system: Approx 30mm shorter than (A)
Wall rail system: Approx 130mm shorter than (C)
55mm
20mm ±5
55
15mm ±515mm ±5
Figure: Distances between Secondary and Primary
rail.
5.2.3 Attachments for curves
Rail curves are only possible for ceiling mounting.
Minimum requirements:
Figure: Minimum three attachments must be
mounted. One in each joint section and one in
center of curve radius.
For joining curves with other rails of same profile a
Joint Set is used.
Figure: Joint set and bracket mounting.
