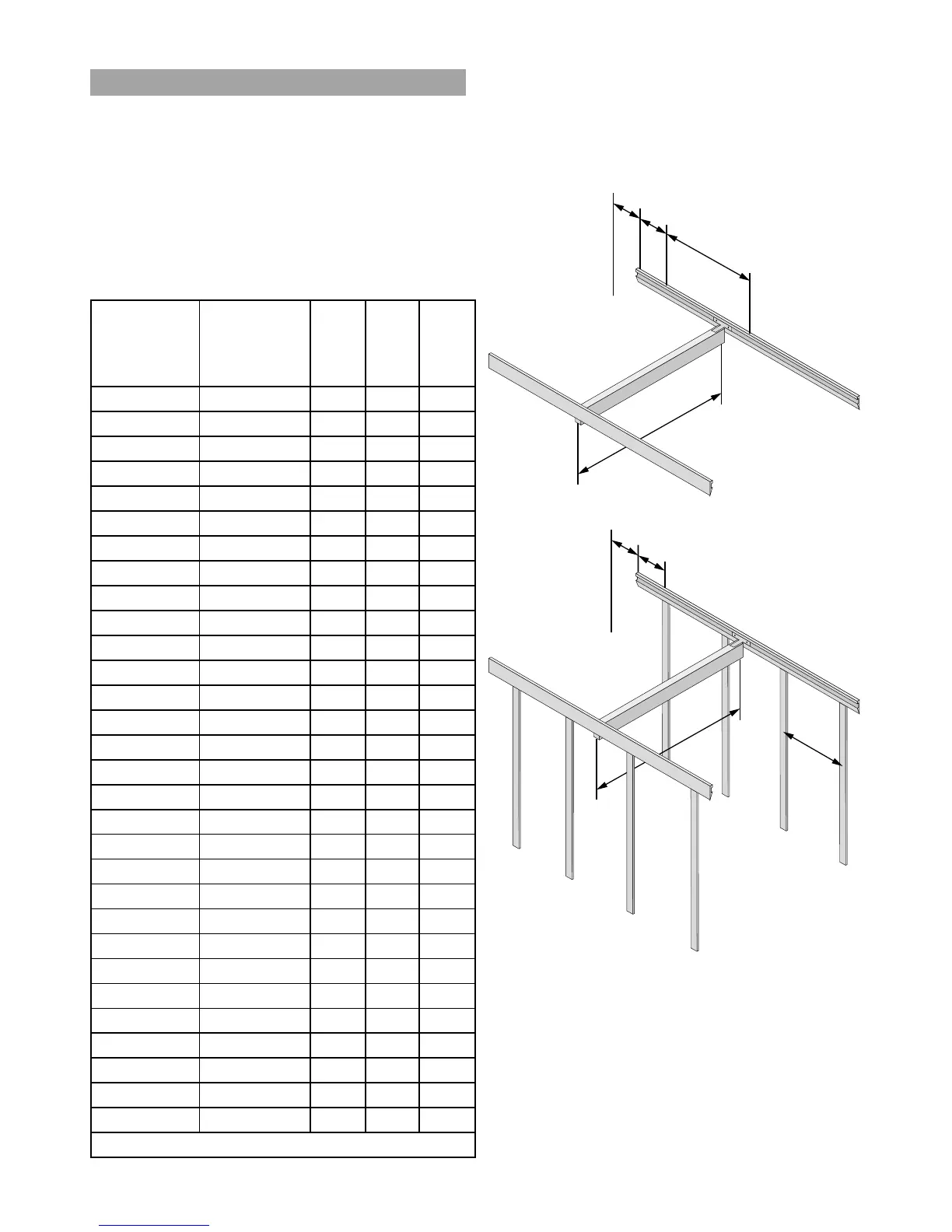

Wall mounted - Wall Rail
A - Maximum distance between wall rail attach-
ment points or upright supports for wall rail
B - Maximum length of secondary rail
C - Maximum distance from last attachment to
end of wall rail (Free end/Overhang)
D - Minimum distance from wall in one end. This
distance is necessary for installing secondary rail
with trolley in wall rail. Minimum distance = 350
mm
Safe Working
Load (SWL)
Rail profile
A -
Max
dis-
tance
B -
Max
dis-
tance
C -
Max
dis-
tance
SWL 160 kg Rail H62 CC
Rail H62 OC 2200
Rail H62 DC
Rail H112 OC 4800
Rail H142 OC 6000
Rail H85 W 1500 250
SWL 205 kg Rail H62 CC
Rail H62 OC 2000
Rail H62 DC
Rail H112 OC 4200
Rail H142 OC 6000
Rail H85 W 1400 225
SWL 230 kg Rail H62 CC
Rail H62 OC 1800
Rail H62 DC
Rail H112 OC 3900
Rail H142 OC 6000
Rail H85 W 1300 200
SWL 255 kg Rail H62 CC
Rail H62 OC 1700
Rail H62 DC
Rail H112 OC 3800
Rail H142 OC 5700
Rail H85 W 1250 175
SWL 300 kg Rail H62 CC
Rail H62 OC 1600
Rail H62 DC
Rail H112 OC 3500
Rail H142 OC 5300
Rail H85 W 1200 150
All measurements in mm
A
B
C
D
C
D
A
B
