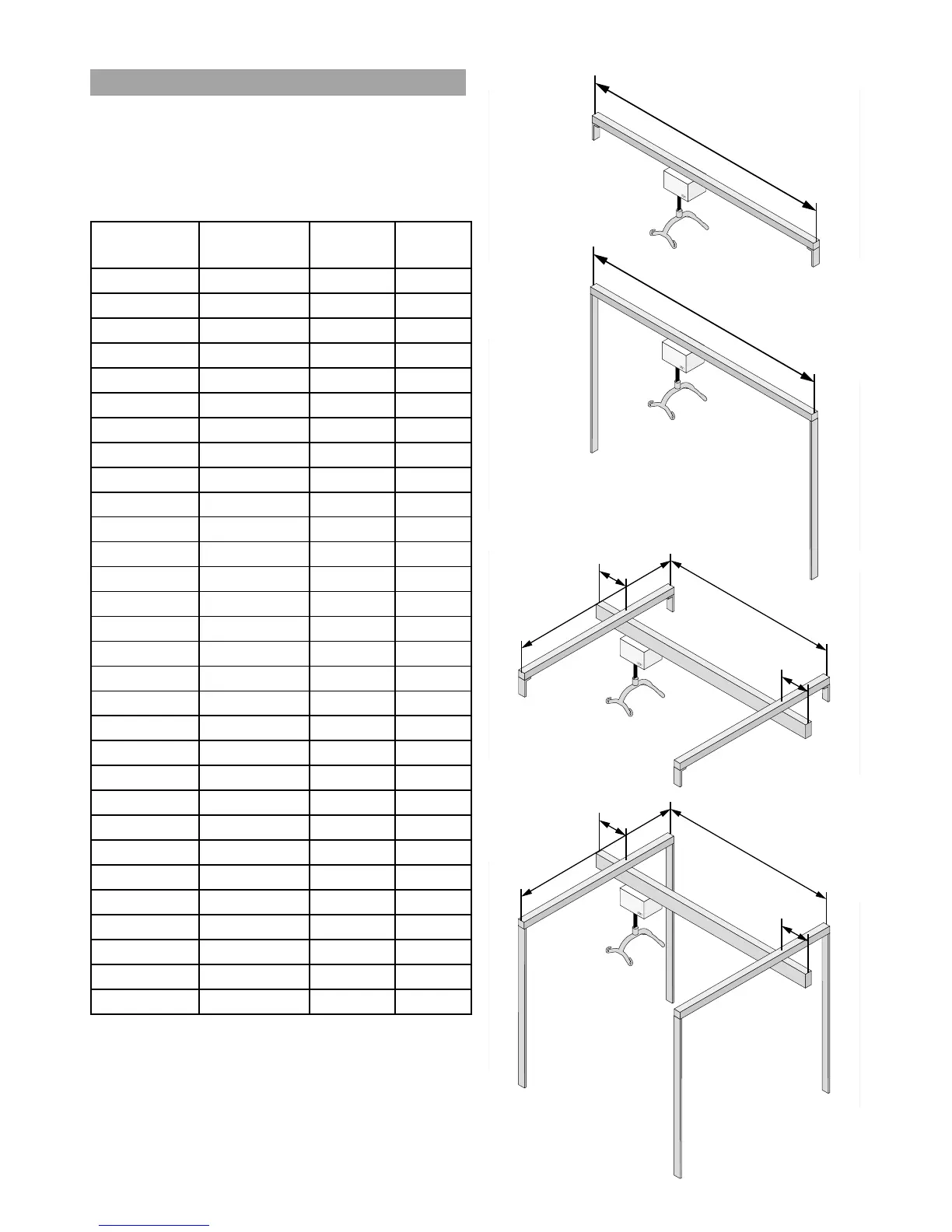

5.2.2 Wall mounted
A - Maximum distance between attachments
(Including distance between primary rails in
traverse systems)
B - Maximum distance from last attachment to
end of rail (Free end/Overhang)
Safe Working
Load (SWL)
Rail profile A - Max
distance
B - Max
distance
SWL 160 kg Rail H62 CC 2200 mm 400 mm
Rail H62 OC 2200 mm 400 mm
Rail H62 DC 1200 mm 50 mm
Rail H112 OC 4800 mm 550 mm
Rail H142 OC 6000 mm 700 mm
Rail H85 W 1500 mm 250 mm
SWL 205 kg Rail H62 CC 2000 mm 400 mm
Rail H62 OC 2000 mm 400 mm
Rail H62 DC 900 mm 50 mm
Rail H112 OC 4200 mm 500 mm
Rail H142 OC 6000 mm 650 mm
Rail H85 W 1400 mm 225 mm
SWL 230 kg Rail H62 CC 1800 mm 400 mm
Rail H62 OC 1800 mm 400 mm
Rail H62 DC 600 mm 50 mm
Rail H112 OC 3900 mm 500 mm
Rail H142 OC 6000 mm 600 mm
Rail H85 W 1300 mm 200 mm
SWL 255 kg Rail H62 CC 1700 mm 375 mm
Rail H62 OC 1700 mm 375 mm
Rail H62 DC 300 mm 50 mm
Rail H112 OC 3800 mm 500 mm
Rail H142 OC 5700 mm 600 mm
Rail H85 W 1250 mm 175 mm
SWL 300 kg Rail H62 CC 1600 mm 375 mm
Rail H62 OC 1600 mm 375 mm
Rail H62 DC 300 mm 50 mm
Rail H112 OC 3500 mm 450 mm
Rail H142 OC 5300 mm 550 mm
Rail H85 W 1200 mm 150 mm
A
A
B
B
A
A
B
B
A
A
