Rails
MRS rail program consists of 4 different profiles
(CC, OC, DC or W) where OC profile is available
in 3 different heights. The figures give the height
of the rail in mm. The strength of the rail relates
to the height. Higher profile gives stronger rail. All
profiles are compatible with all combinations of
the MRS products.
All rails are extruded Aluminum and comes in
two colours, anodized aluminum and white paint.
The H62 rail comes in 3 different versions, CC for
recessed rails flush to false ceiling, DC for direct
mounting in ceiling, and OC for suspended rails
from bearing ceiling.Delivered in standard lengths
or Tailor made lengths up to 7,0m.

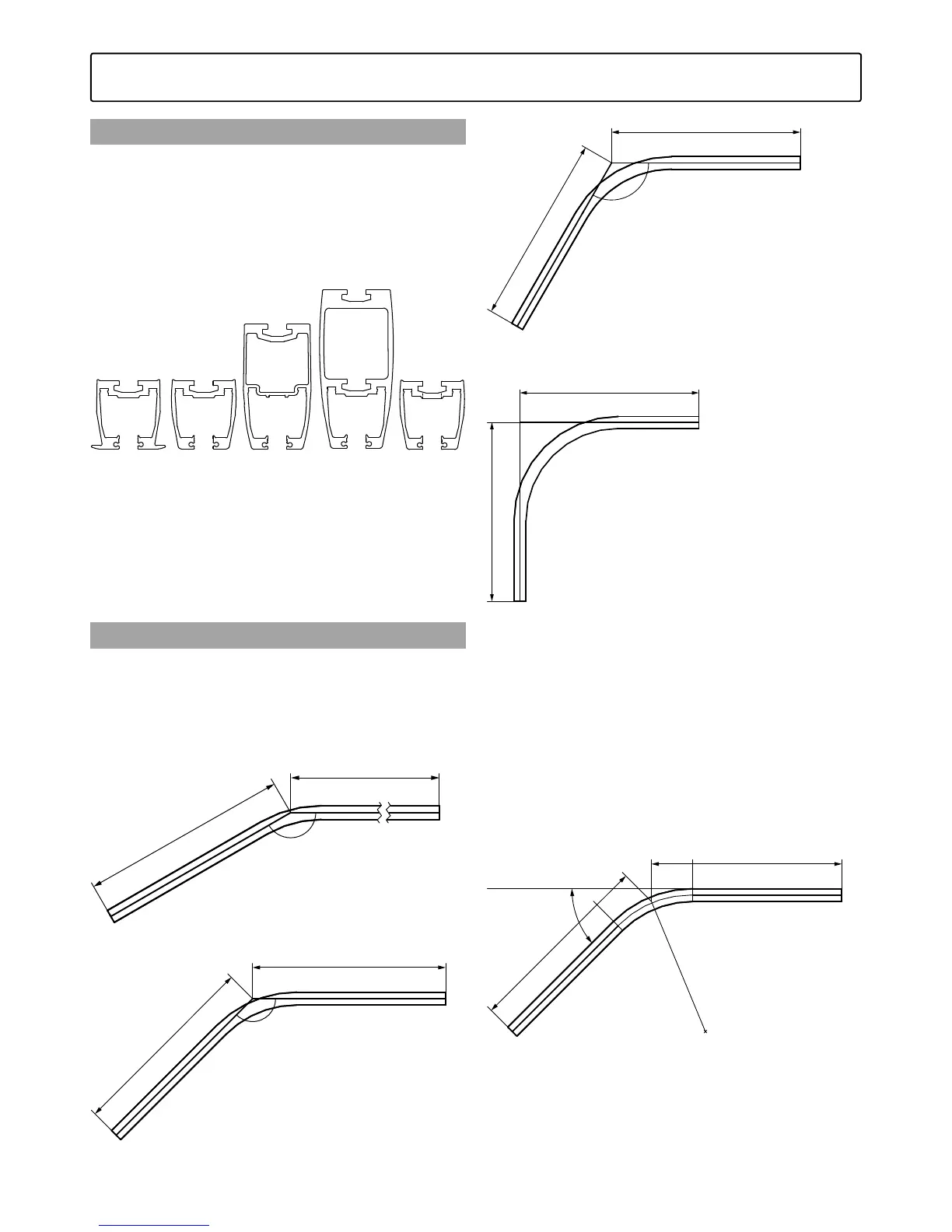

Curves
Rail curves are available for all three H62 profiles
and come as standard in 30, 45, 60 and 90
degrees angle. Tailor made curves are possible as
well as tailor made lengths. All curves have radius
550mm. Standard length is 1000mm.
30°
1000mm
1000mm
Curve 30°
1000mm
1000mm
45°
Curve 45°
1000mm
1000mm
60°
Curve 60°
1000mm
1000mm
90°
Curve 90°
Special Curve CC/DC/OC
Tailor made curve angles can be ordered. Use part
no. 1109150 for special curves in Rail H62 profile
and specify the colour (P or A) and following
measurements when ordering:
A= 0 – 2000mm : _______
B= 0 – 2000mm : _______
C= 0-90° : _______
Dimension A
Dimension B
Dimension C 0°-90°
Top View
R 550mm, center of rail
