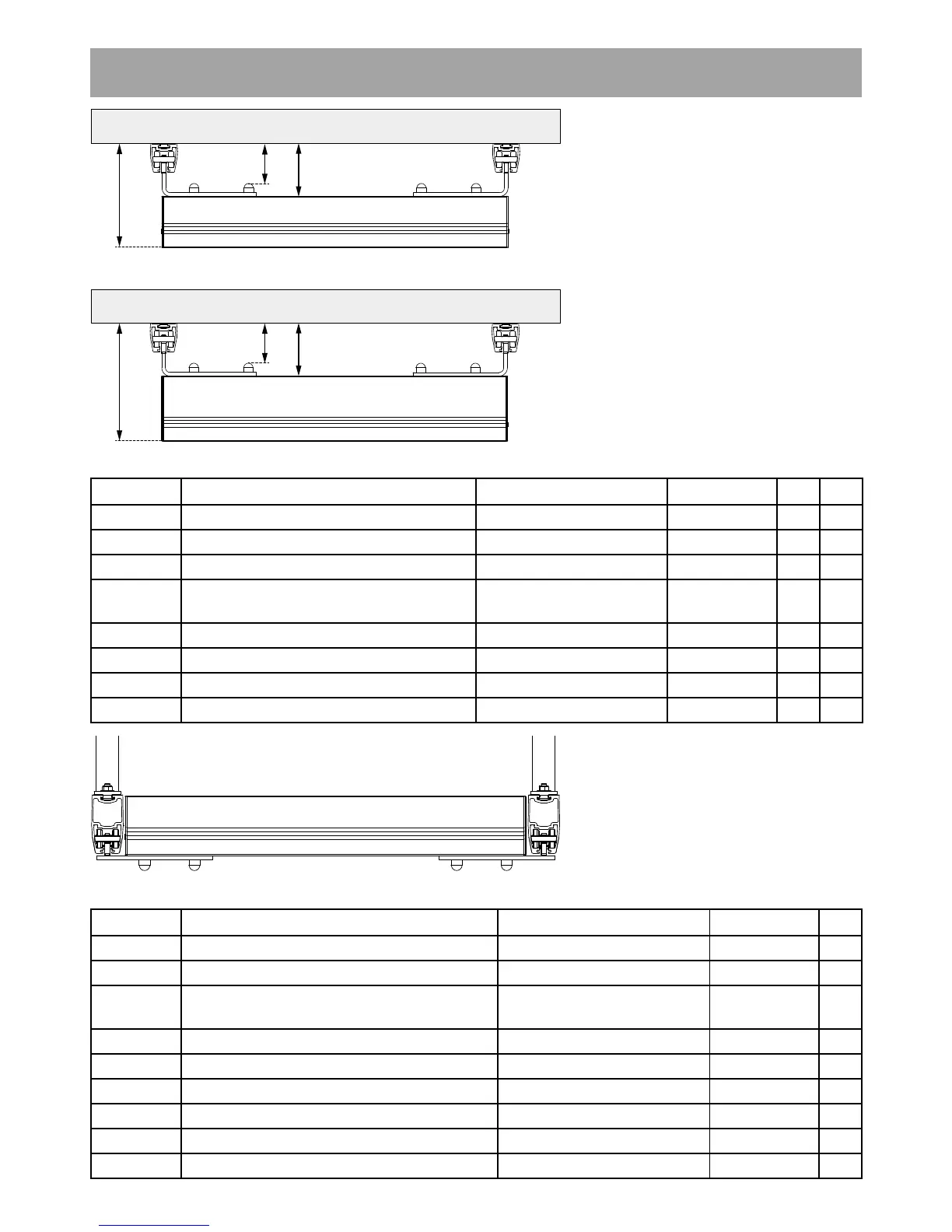

8.2 Traverse Rail system
Traverse rail system - Ceiling mounted suspended
Traverse rail system
Ceiling mounted
Direct mounted
Primary Rail H62 DC
Secondary Rail H112 OC
Traverse rail system
Ceiling mounted
Direct mounted
Primary Rail H62 DC
Secondary Rail H142 OC
Traverse rail system (boxed in)
Ceiling mounted
Suspended mounted
Primary Rail H112 OC
Secondary Rail H112 OC
257
115
227
115
85
85
Configuration example:
Products Description Incuding Item no Qty
Rail profile Rail H62 DC/P 110 9 0 05 4 2
Rail H112 OC/P 1109009 3 1
Trolleys Traverse trolley set (white) 2 trolleys 110 959 0 1
Traverse mounting kit (under trolleys) 2 sets, Bolts, nuts and
washers
110 93 45 1
End stops End stop for motor trolley 1109410 2
End stop for traverse trolley 110 9 411 4
Endcaps End Cap Rail H62 White 110 93 4 0 4
End Cap Rail H112 White 110 93 41 2
Configuration example:
Products Description Incuding Item no Qty
Rail profile Rail H112 OC/P 1109009 3
Trolleys Boxed traverse trolley set, white 2 trolleys 110 9592 1
Traverse mounting kit (under trolleys) 2 sets, Bolts, nuts and
washers
110 93 45 1
Brackets Telescope Bracket Set 120-200 mm 1109710 6
Side Support unit for Telescope Brackets 110 9 815 6
End stops End stop for motor trolley 1109410 2
End stop for traverse trolley 110 9 411 4
Endcaps End Cap Rail H62 White 110 93 4 0 4
Endcaps End Cap Rail H112 White 110 93 41 2
