Lifting area limitations
An Overhead system covers a certain maximum
lifting area in a room. Due to the practical instal-
lation work and measurements of including parts,
a rail system cannot be mounted directly close
to the walls. There a few things to consider, the
minimum space between a rail and the wall, the
lengths of end stops, trolleys and lift motor.

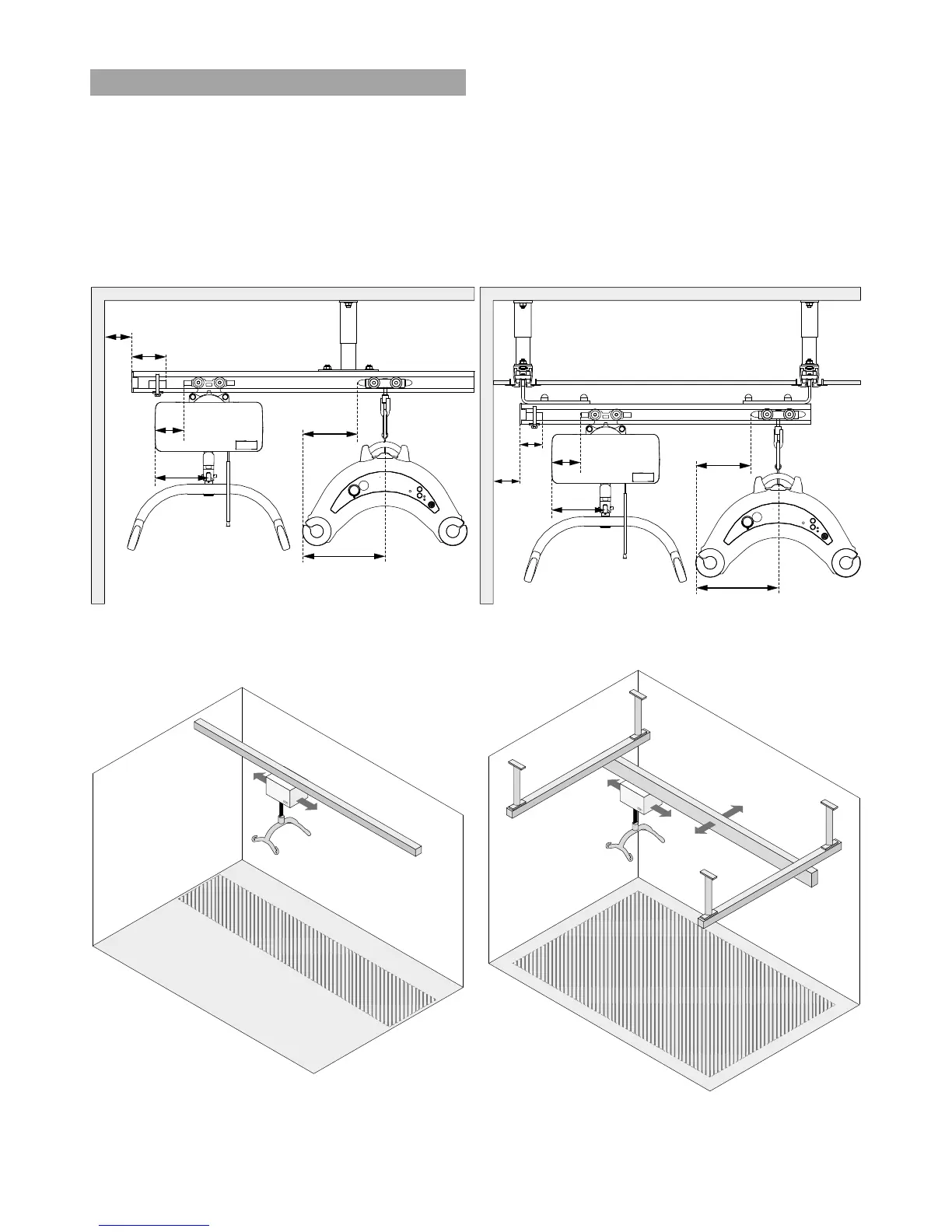

Lifting Area = Hatched area
on floor under lifter.
Min. 120mm from wall
Min. 45mm
180mm
97mm
180mm
97mm
261mm
??mm
Min. 120mm
from wall
Min.
45mm
261mm
174.5mm
