Rev. G

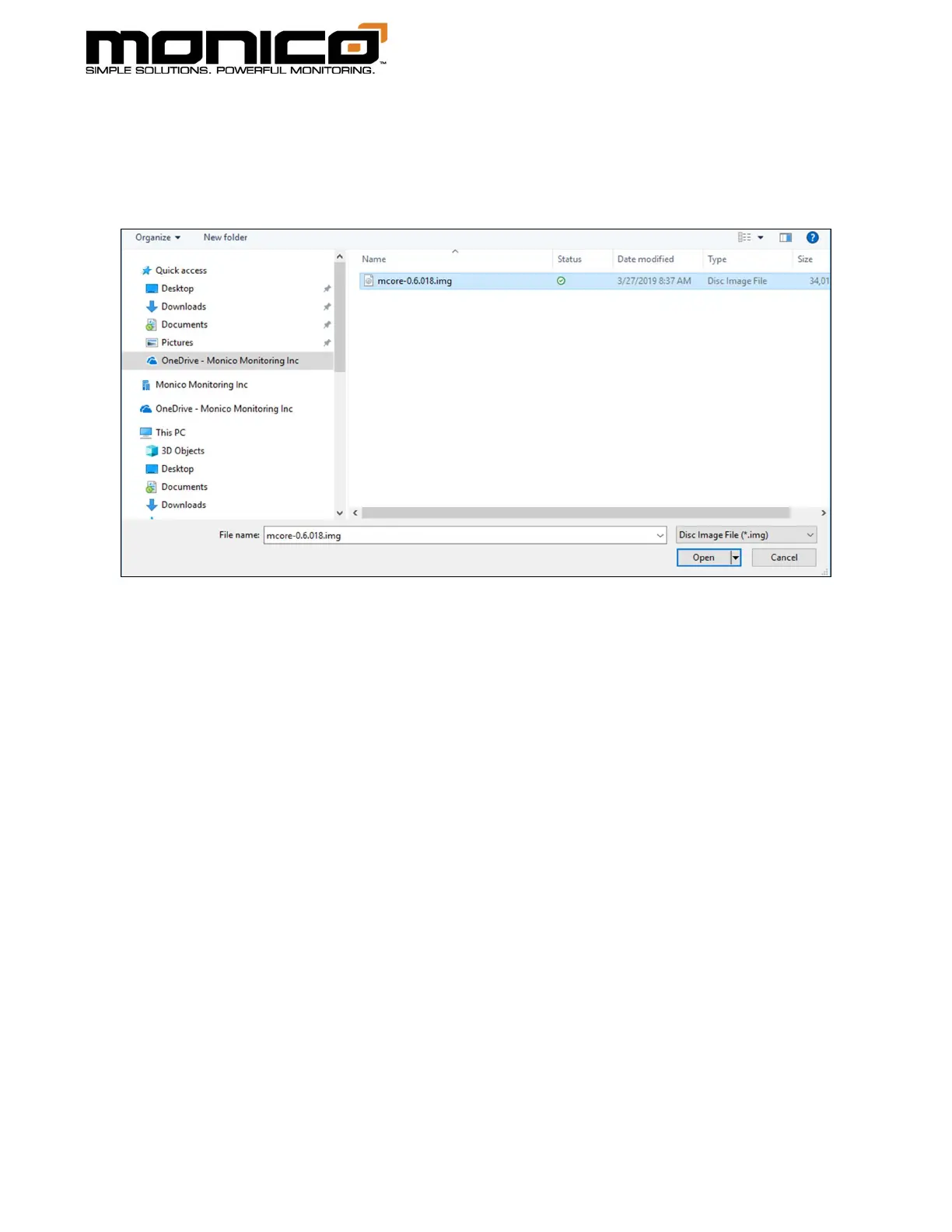

2. Select the file that want you to upload. All firmware updates will have the

suffix .img in the filename i.e. mcore-0.6.018.img. After selecting the file, click

Open to begin the upload process.
