Section 5: Power Requirements
The input voltage requirements are 8 – 48 VDC for operating temperatures between -
40
o
C and +65
o
C. The input voltage requirements are limited to 8 – 28 VDC for operating
temperatures between -40
o
C and +70
o
C. The mCore has internal reverse polarity
protection but will not operate under reverse polarity conditions.
**User is required to install a 2 Amp fast blow fuse rated for at least 50VDC (or the maximum
voltage of the supplied power) to protect against short circuit.**
0
200
400
600
800
1000
1200
1400
8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48
Current (mA)
Voltage (V)

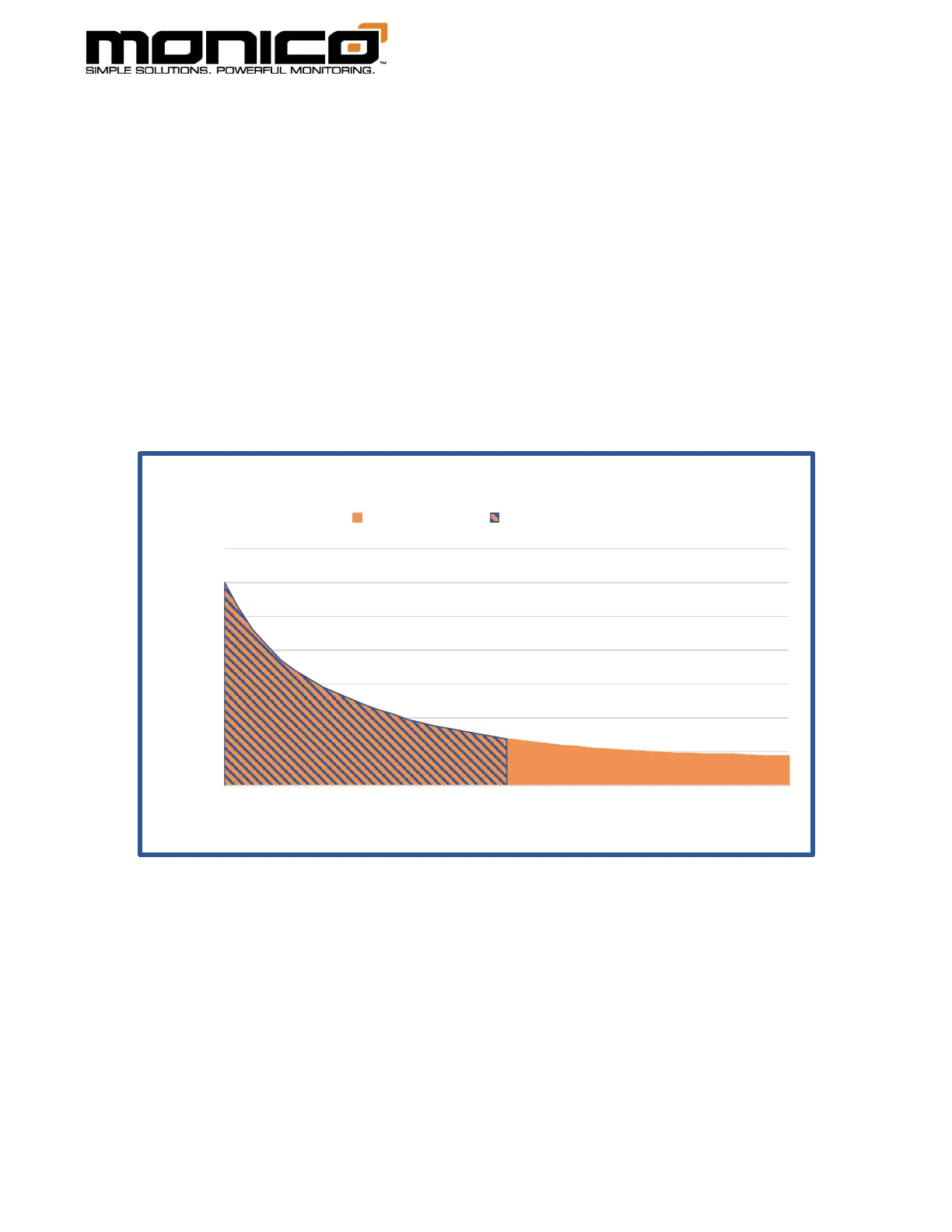

Current/Voltage Curve
0-48V (@65 °C) 0-28V (@ 70°C)
Max 1200 mA @ 8 VDC
Normal 200 mA @ 48 VDC
