Section 3.2: Wiring
The unit should be connected to the desired ports according to the pinout below using the recommended
connectors shown in Section 4.1: Parts Table.

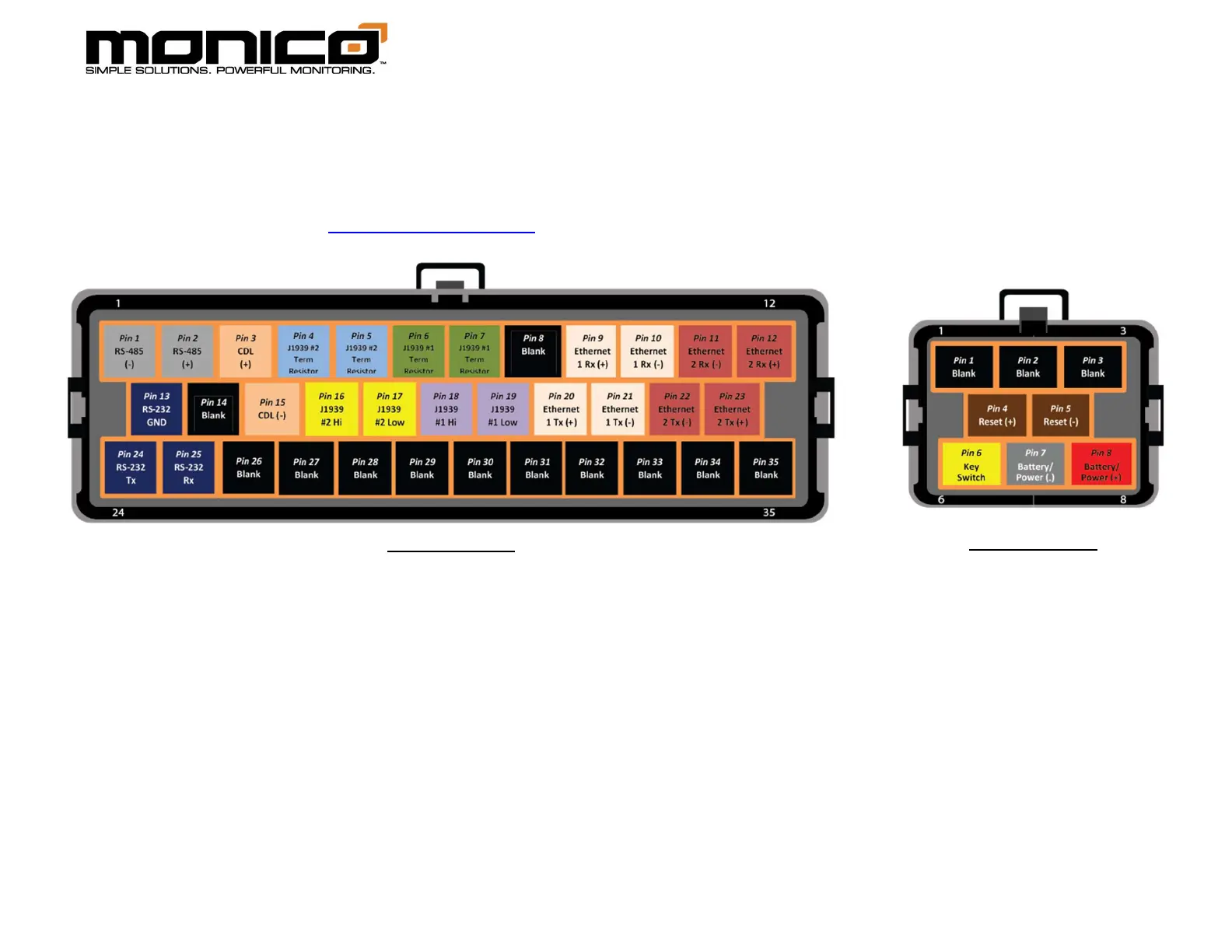

The above pinout is depicting the female header connectors and respective key orientations on your mCore that
will mate to the male connectors. Monico recommends connecting mCore to the batteries when available so that
mCore will be booted up before the engine is turned on so it can capture the startup process. mCore takes about
15 seconds to boot up. The mCore’s power is supplied through Pins 6, 7, and 8 on Key Connector A, as shown in
the Pin Out Guide above. Pin 7 will be connected to Battery/Power (-). Pin 6 is for a Key Switch to be able to
power cycle the mCore without removing the connector. Pin 6 must be energized to allow mCore to boot up.
When power is removed from Pin 6, mCore will power down. If a Key Switch will not be in line with Pin 6, then
connect Pin 6 with Pin 8 to Battery/Power (+).
Key Connector A
Key Connector B
