Page 12 of 110
Rev. G
Be sure to follow the AMPSEAL “How-to Instructions” located at:
https://laddinc.com/resources/how-to-instructions/ampseal-connectors/
https://laddinc.com/resources/how-to-instructions/ampseal-16-contact-crimping/
These instructions include steps for proper inserting, crimping, & removing of
wires into the pin connectors. For proper hand crimping, an AMPSEAL 2119118-1
hand crimping tool (not included) must be used.

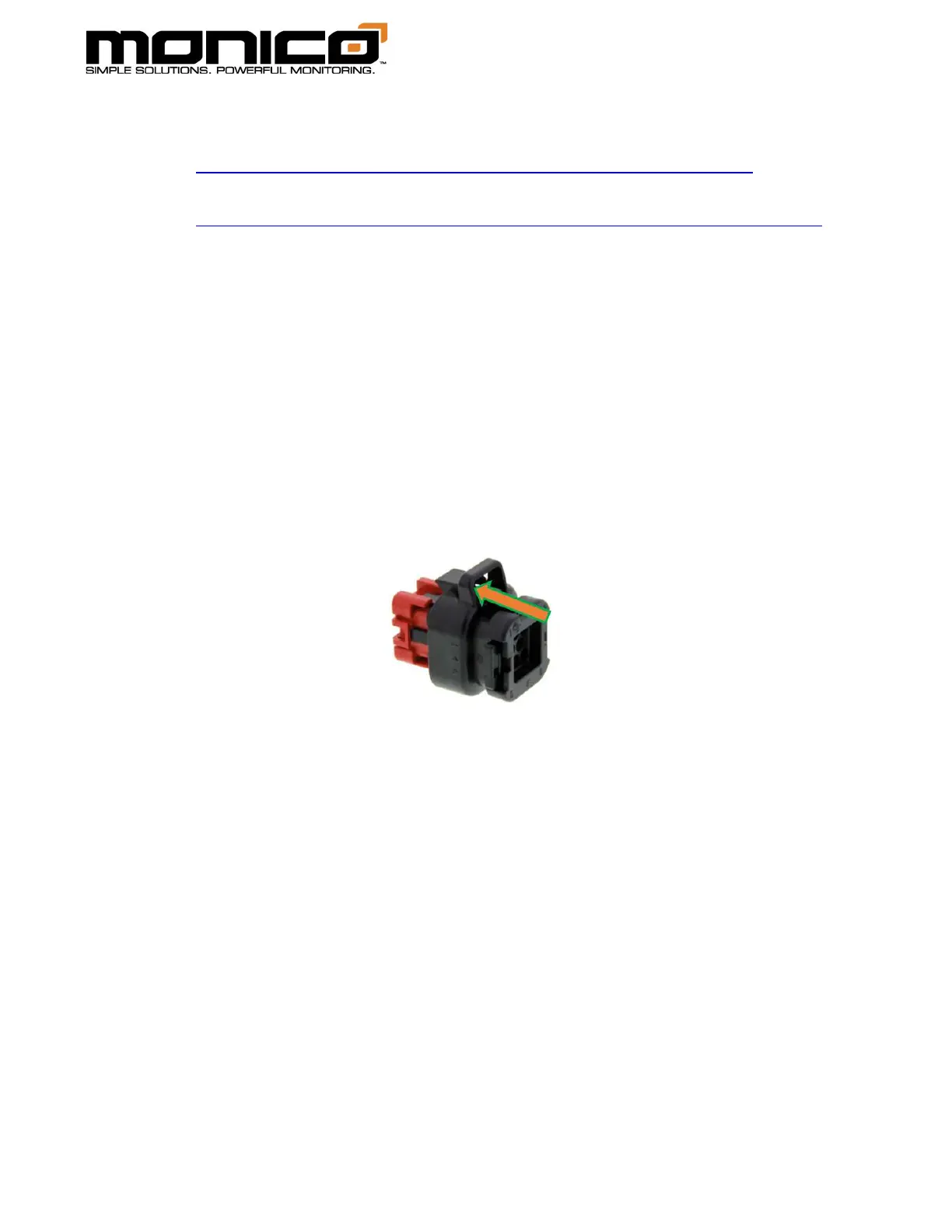

Plugging In:
To connect power to the mCore, push the connector until you hear the click of the
locking ear snapping into place. It may require a good amount of force as these
connectors are waterproof and have a gasket that must be overcome.
Unplugging In:
To disconnect power to the mCore, insert a small flathead screwdriver into the
locking ear on the side of Key Connector A and pry outwards gently while pulling
on the connector.
