SECTION TWO – WIRING AND INSTALLATION
DS2000 USER’S MANUAL (rev.C)
2.14
2.11.1.2 SIZE C POWER CONNECTOR
Note: Pin 1 is marked with the symbol “■”

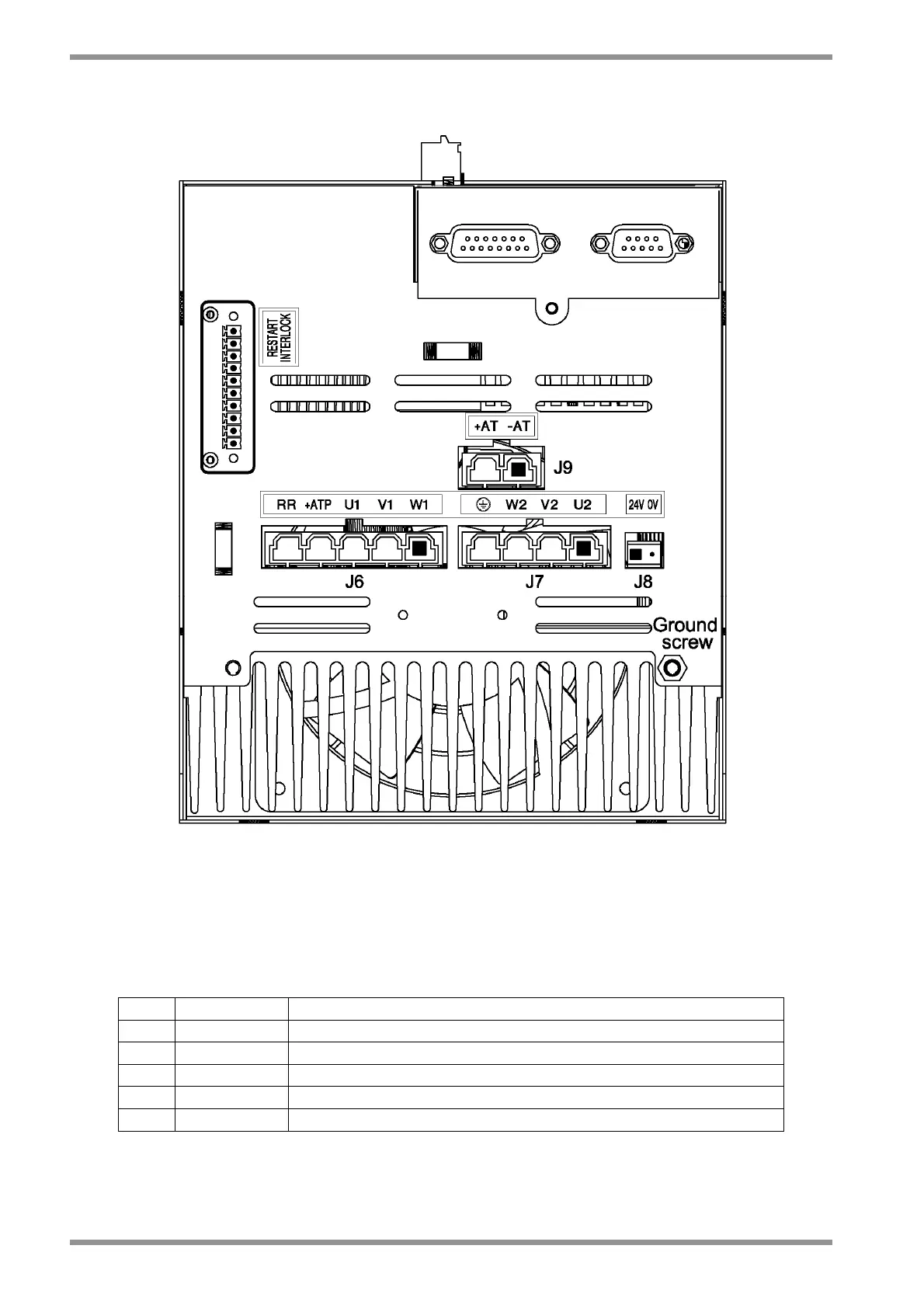

Fig. 2.6 – Size C power connector
• J6 connector
- Mating connector: female, 5 pins, crimp, supplied with the drive, model Molex 42816-
0512 (Moog code AK4991).
Pos. Name Function
1 ■ W1 Phase "L3", three-phase voltage input 230/460V
ac
±10%
2 V1 Phase "L2", three-phase voltage input 230/460V
ac
±10%
3 U1 Phase "L1", three-phase voltage input 230/460V
ac
±10%
4 RR (+ATP) External recovery resistor and +HV of DC BUS
5 RR External recovery resistor
Tab. 2.10 – J6 input power connector, size C
