SECTION TWO – WIRING AND INSTALLATION
DS2000 USER’S MANUAL (rev.C)
2.17
2.11.1.3 SIZE D POWER CONNECTOR
Note: Pin 1 is marked with the symbol “■”

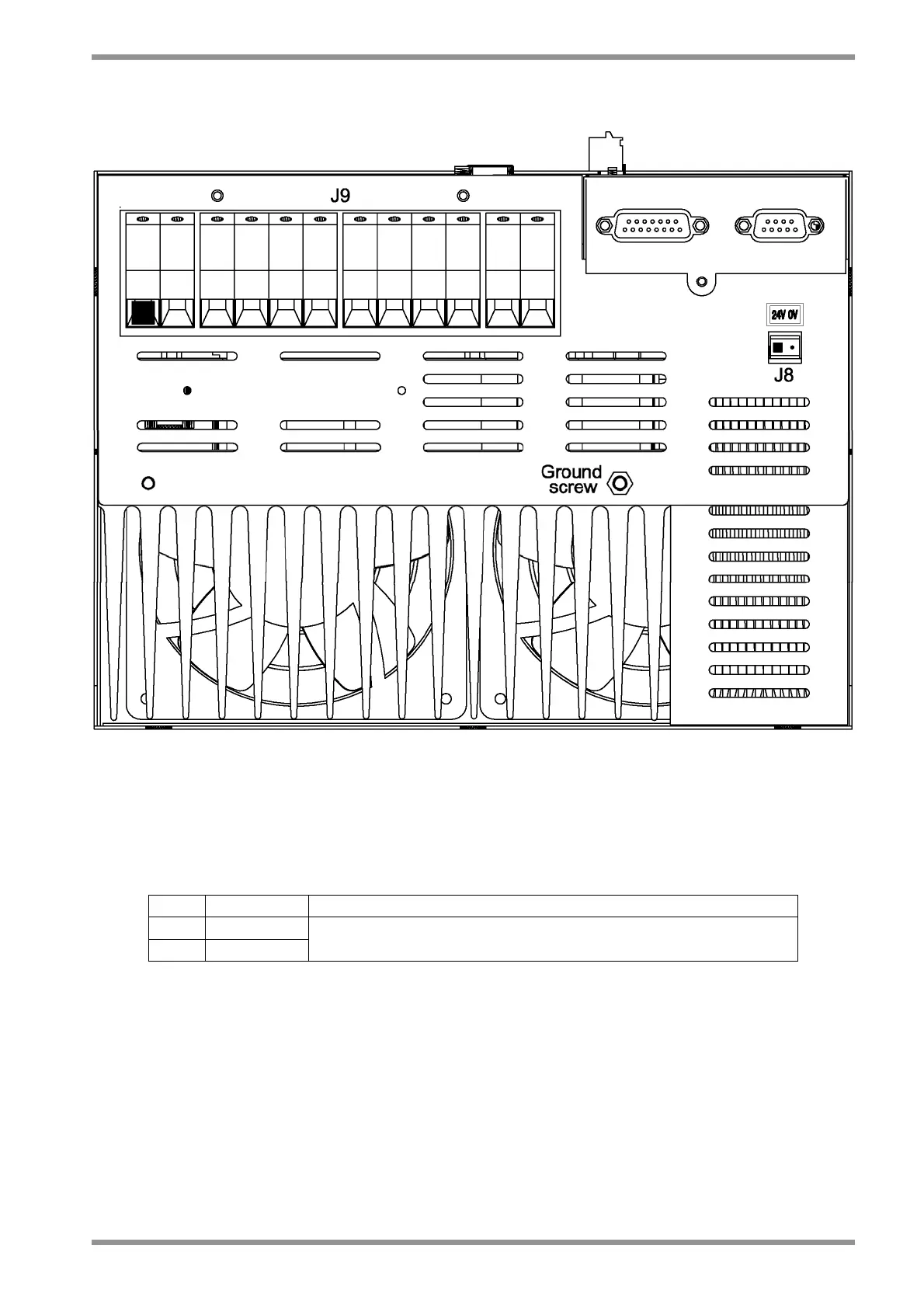

Fig. 2.8 – Size D power connector
• J8 connector
- Mating connector: female, 2 pins, supplied with the drive, model Wago 231-102/026-
000 (Moog code AK4967).
Pos. Name Function
1 ■ +24V
2 0V (24V)
Auxiliary voltage inputs 24 V
dc
±10%, 2A
(pin 2 is connected to drive logic 0)
Tab. 2.14D – J8 auxiliary input power supply connector, size D
