UNIT DISASSEMBLY

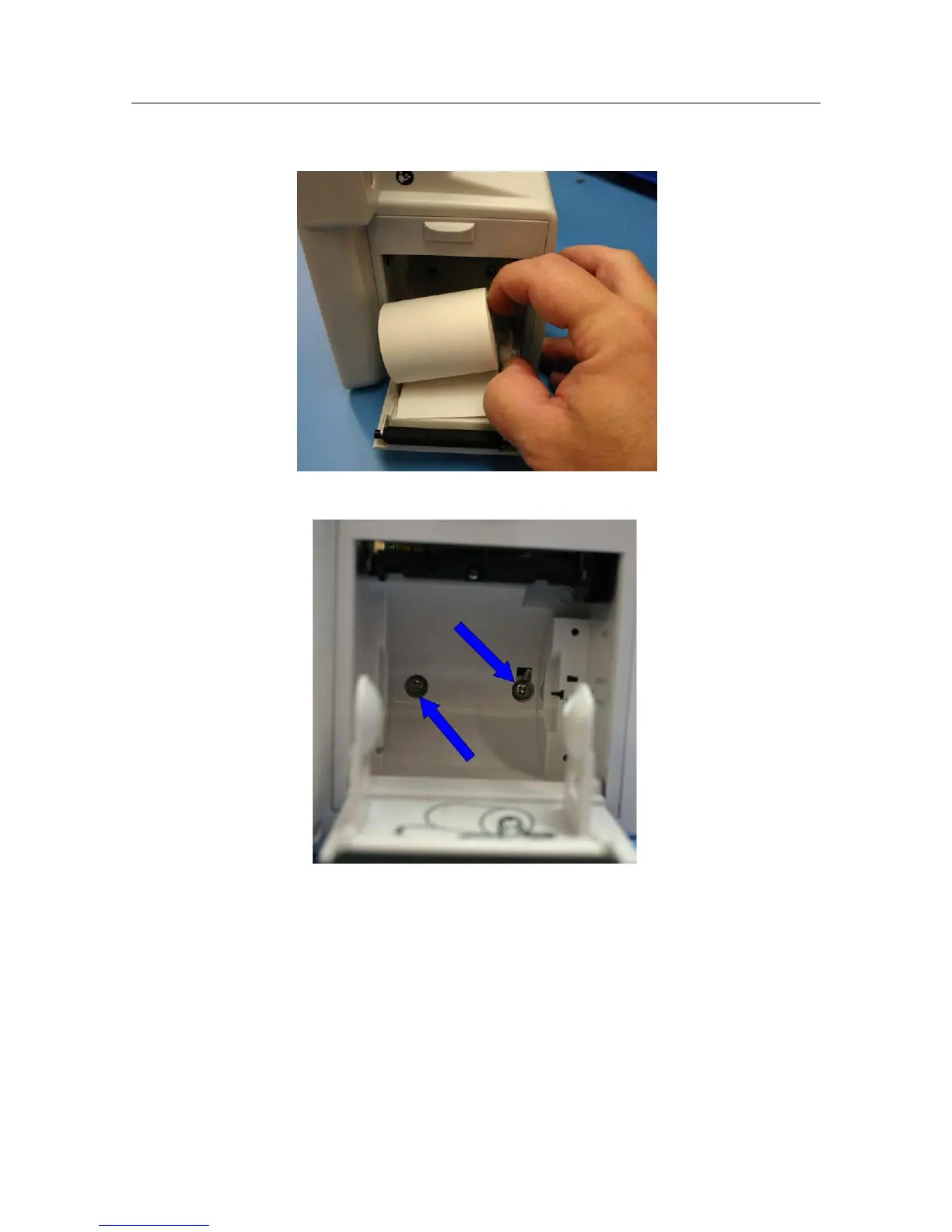

Remove the paper roll from the writer assembly.

Locate the mounting screws for the writer.

Note: These screws are captive screws and they will remain attached to the writer assembly.
