Motion Control Engineering Motion 3000ES

Configuration
21

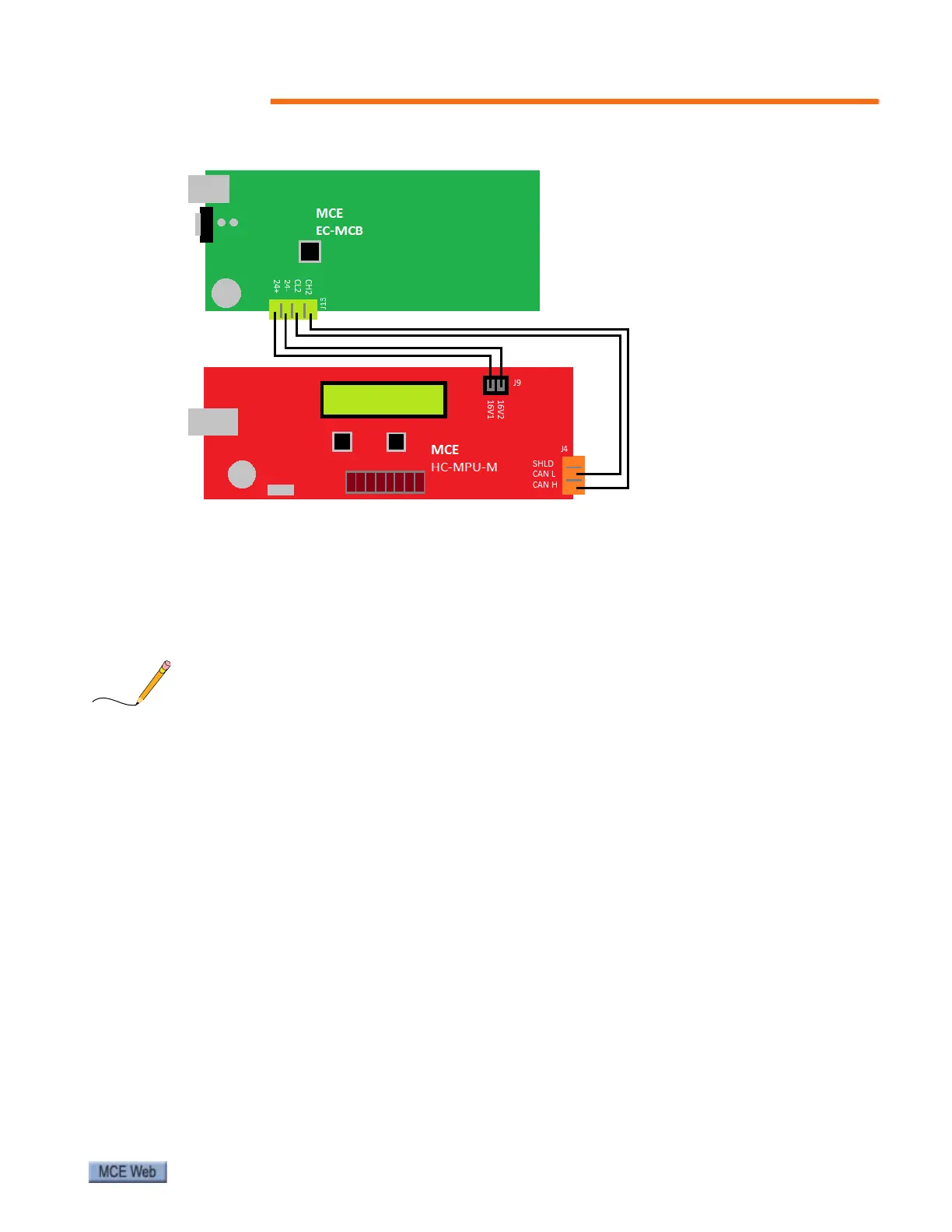

Figure 5. EC-MCB Wiring Diagram
Configuration
After connecting power, “INITIALIZING BOARD COMM” will appear on the USN-BASE
assembly LCD display.
Device Type
Note
It is important that all communication wires are disconnected from the USN board before
changing the device type. Make sure all ethernet, CAN, and serial cables are disconnected.
When making changes to settings:
• Press N to cycle through menu
• Press S to select
• Use S to move cursor
• Use +/- to change selection
• Press N to go to save menu
• Press S to save
To begin configuration:
1. Set only the F7 switch UP.
2. Press N until Device Type is displayed.
3. Press S to select.
4. Verify/set the Device Type to Motion 3000ES Escalator Controller.
5. If the Device Type was changed, reset the USN board by pressing the RSTA button.
6. After the device reboots, confirm new device type is selected.
