Disassembly/Reassembly Procedures: Radio Reassembly 7-27
7.6.8 Reassemble Multi Function Knob (6)
1. Align the D-shaped part of the shaft with the D-shaped hole on the Multi Function knob. Press
the knob into place.

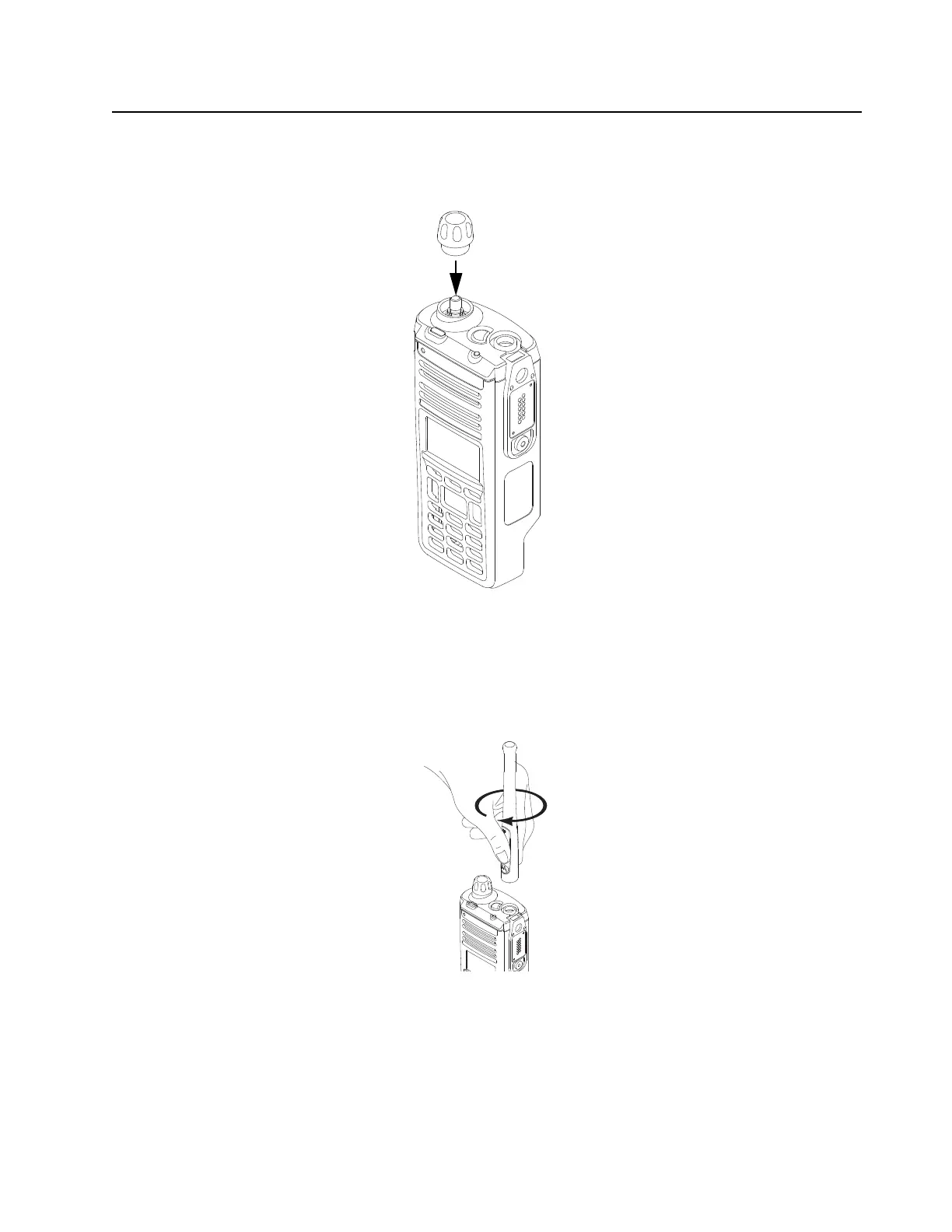

Figure 7-38. Reassemble the Multi Function Knob
7.6.9 Reassemble the Antenna (7)
1. With the radio turned off, turn the antenna clockwise to attach it to the radio.
Figure 7-39. Attaching the Antenna
