7-12 Disassembly/Reassembly Procedures: Radio Disassembly
7.4.5.5 Removal of the Keypad Retainer (27)
1. With the Back Kit Flex (33) connectors unplugged from the Main Board (32) as shown in

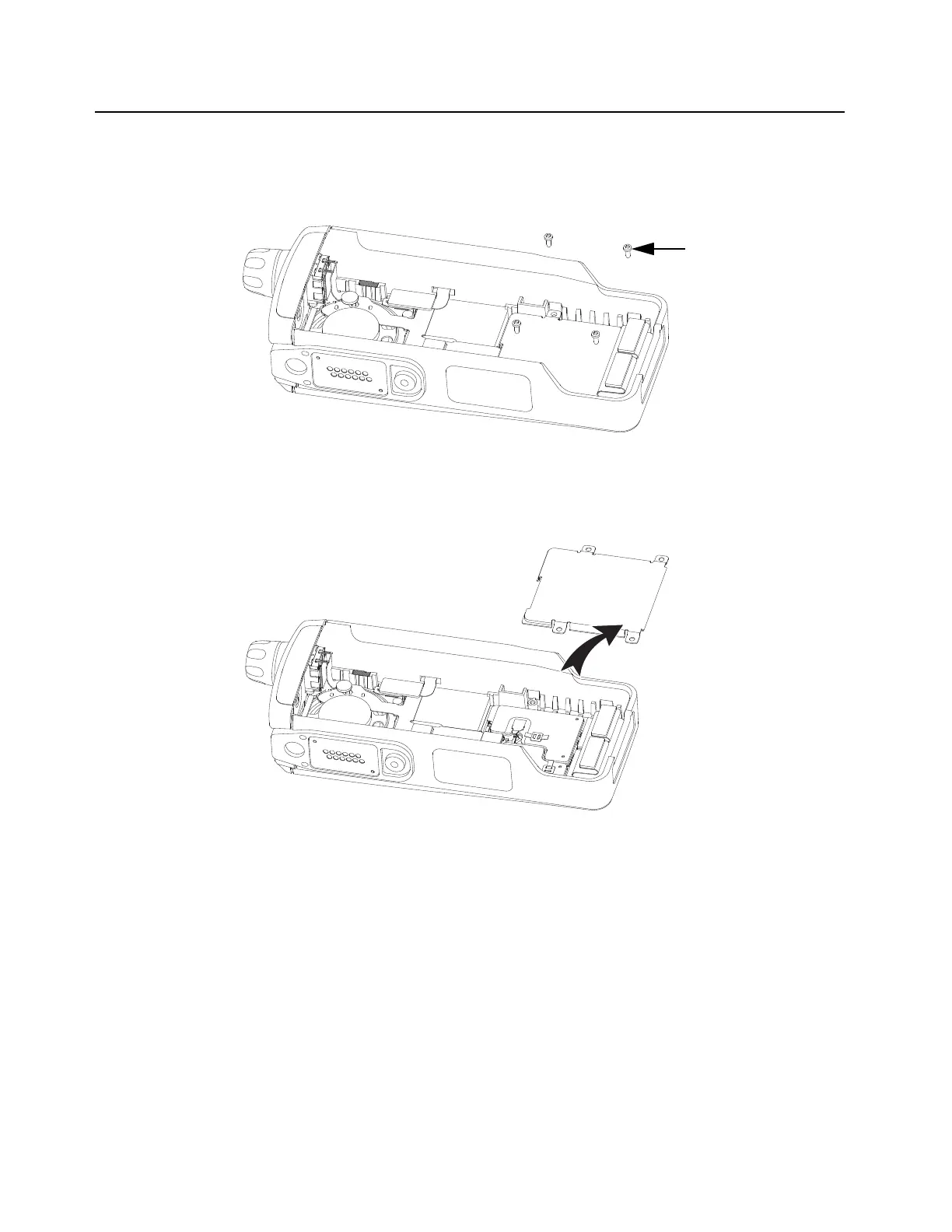

Figure 7-13., remove the Keypad Retainer Screws (28) as shown in Figure 7-16.
Figure 7-16. Remove the Keypad Retainer Screws
2. Lift out the Keypad Retainer (27) from the Front Housing (16) as shown in Figure 7-17.
Figure 7-17. Remove the Keypad Retainer
