8-14 Disassembly/Reassembly Procedures: Radio Disassembly
8.4.6.5 Removal of the Keypad Retainer (34)
1. With the Back Kit Flex (43) connectors unplugged from the Main Board (45) as shown in
Figure 8-16., remove the Keypad Retainer Screws (33) with Torx IP6 Bit as shown in Figure
8-19.

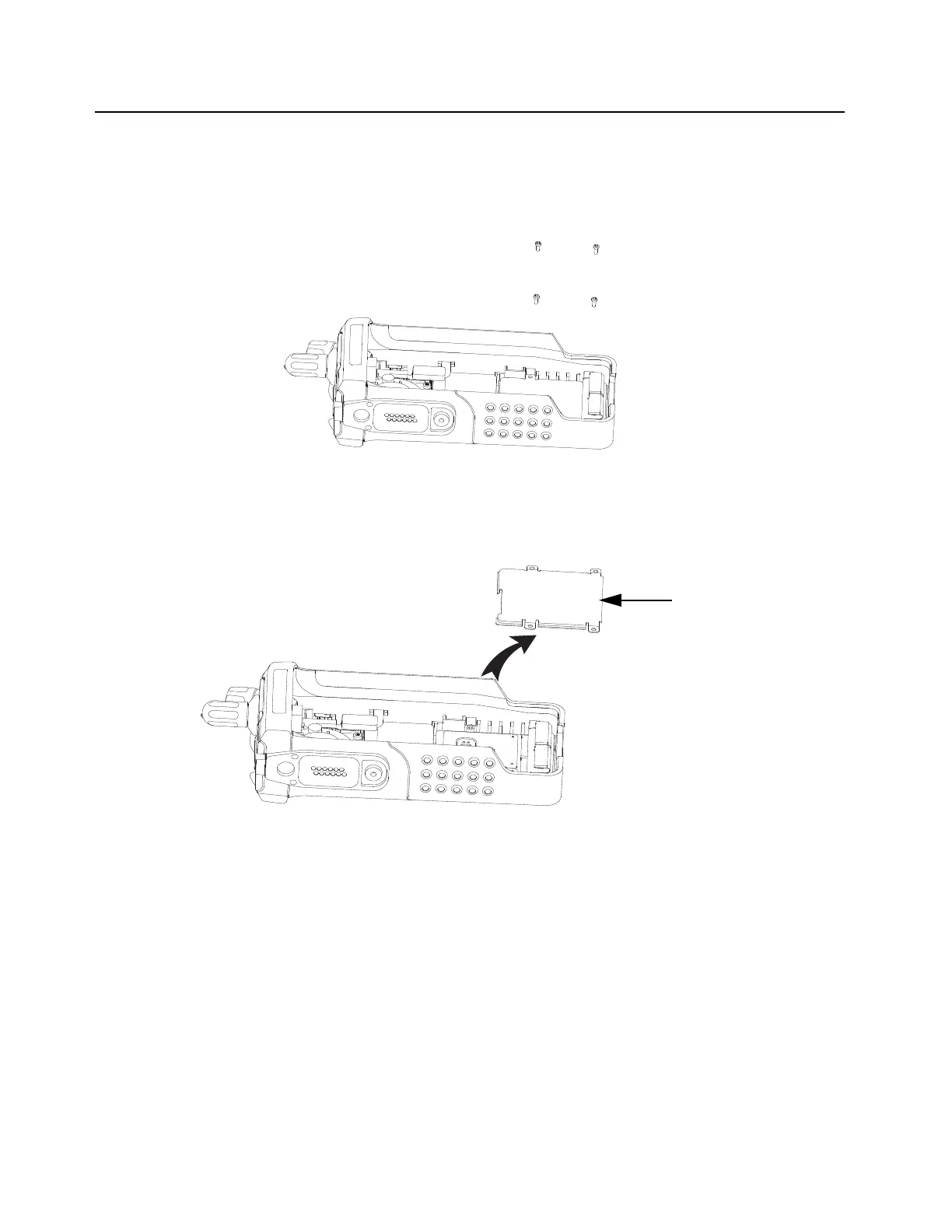

Figure 8-19. Remove the Keypad Retainer Screws
2. Lift out the Keypad Retainer (34) from the Front Housing (19) as shown in Figure 8-20.
Figure 8-20. Remove the Keypad Retainer
1
2
3
4
Keypad Retainer
