8-16 Disassembly/Reassembly Procedures: Radio Disassembly
8.4.6.7 Removal of the Keypad (37)
1. With the Keypad Board (35) removed, gently press the Keypad (37) from the front of the Front
Housing (19) with fingers or with the aid of the back of the black stick to disengage the
Keypad from the rib as shown in Figure 8-23.

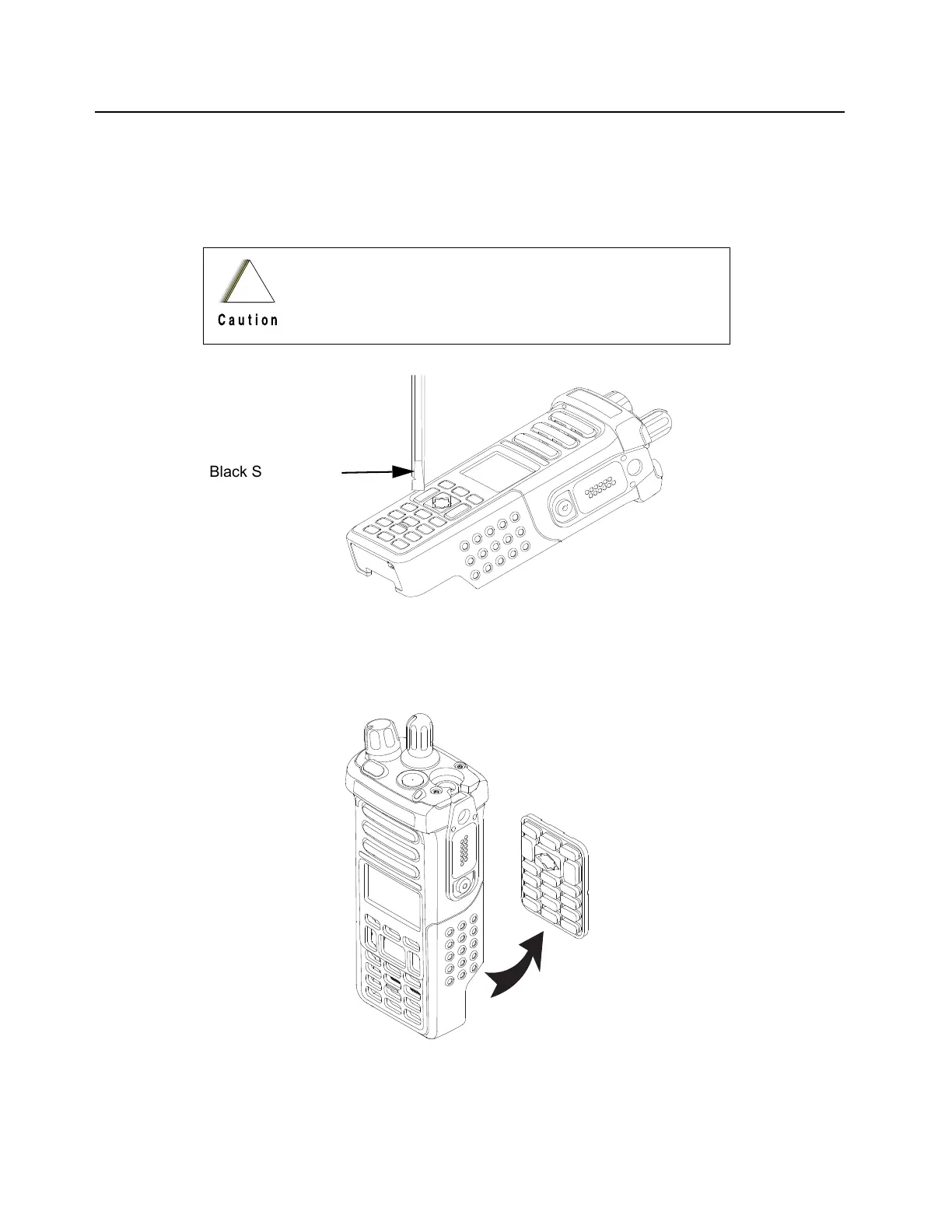

Figure 8-23. Disengage the Keypad
2. With the Keypad (37) disengaged from the rib, gently lift it out from the Front Housing (19).
Figure 8-24. Remove the Keypad
When disengaging and removing the Keypad, care is needed
to avoid tearing and damange to the Keypad.
