2-4 Maintenance

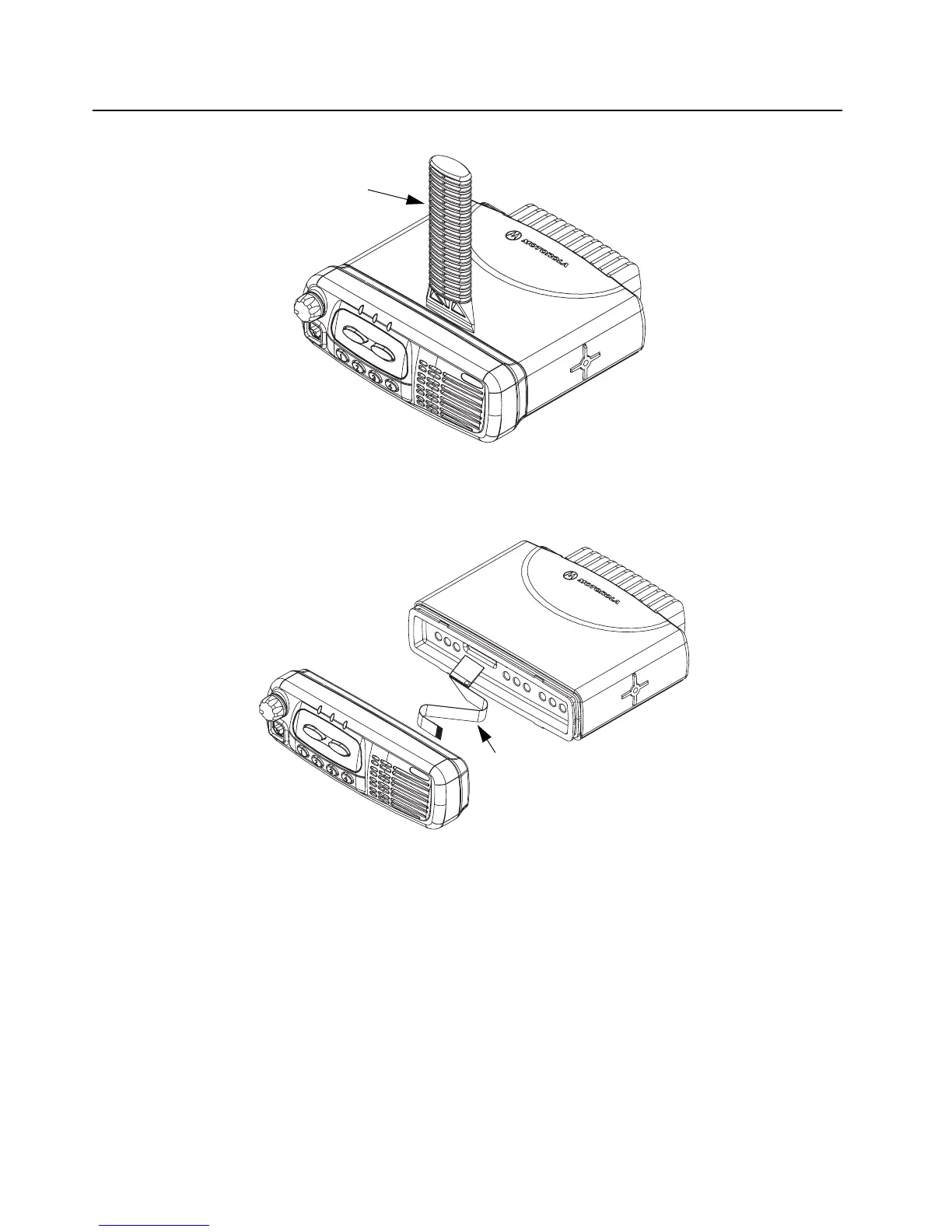

Figure 2-1: Typical Control Head Removal
3. Pull the control head away from the radio assembly as shown in Figure 2-2.
Figure 2-2: Flexible Connection Removal
4. Remove the flexible connection from the socket on the control head board.
2.6.2 Top Cover Removal
1. Insert the dismantling tool in the middle of the radio assembly side groove as shown in Figure 2-3.
2. Press on the dismantling tool until the snap connectors on the side of the cover release from the
radio chassis.
Dismantling
To o l
Flexible
Connection
To Next Page
