Motorola CDM Series Basic Service Manual

Maintenance 2-9

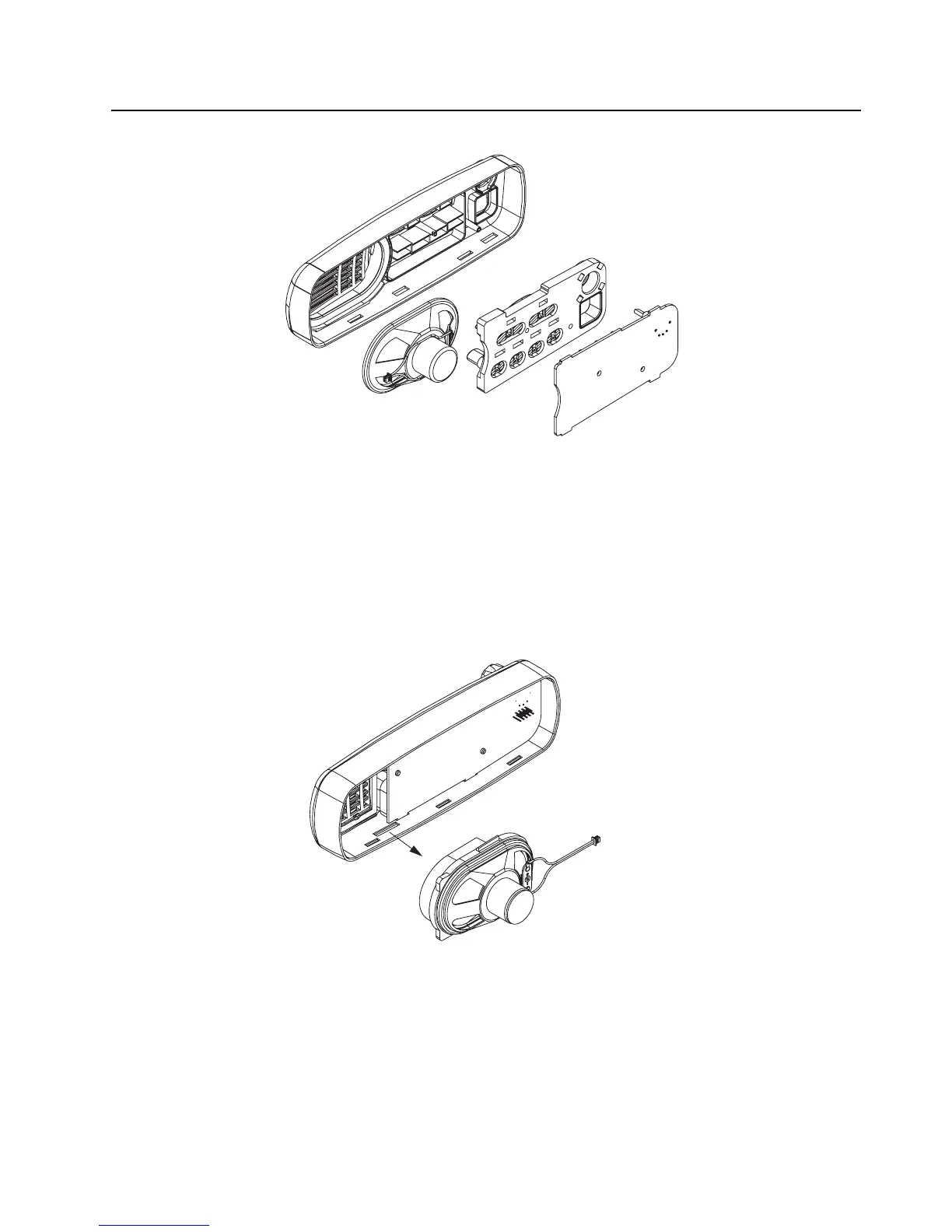

Figure 2-8: Board, Keypad and Speaker Removal
6. Remove the speaker from the control head housing.
2.6.5 CDM1250, CDM1550, CDM1550•LS, and CDM1550•LS
+
Control Head
Disassembly
1. Dismount the control head housing from the back housing as described for control head
CDM750, Figure 2-6.
2. Disconnect the speaker socket and remove the speaker (Figure 2-9) with tube by stretching the
control head housing and pulling out the tube.
Figure 2-9: Speaker and Speaker Tube Removal
3. Remove the board from the control head housing by stretching the control head housing and pull-
ing up on the board as described for control head CDM750, Figure 2-8.
4. Remove the keypad from the control head housing by lifting up the rubber keypad.
