Motorola CDM Series Basic Service Manual

Service Aids 2-21

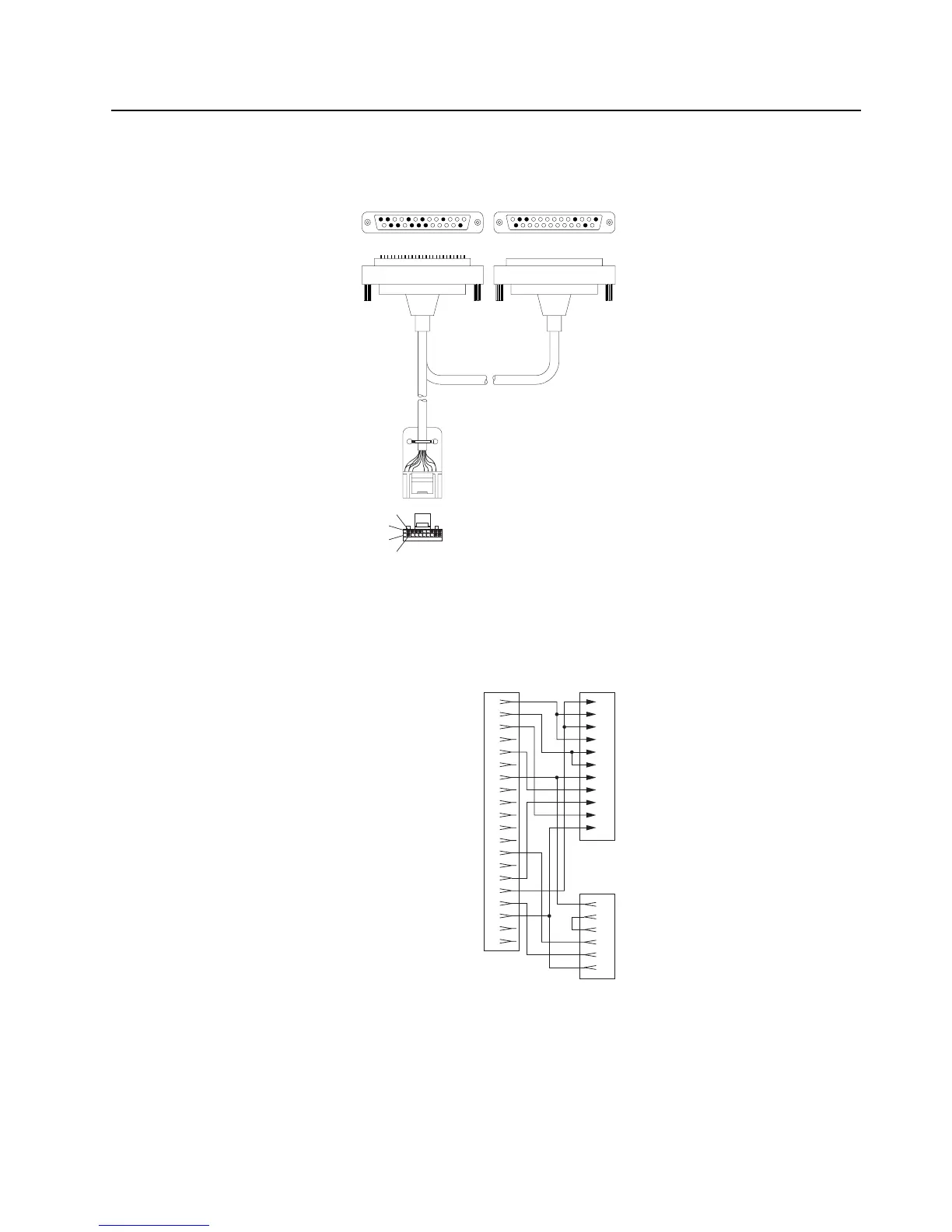

2.15 Programming Test Cable Configuring and Wiring
Figure 2-11: Programming/Test Cable AARKN4083_
Figure 2-12: Pin Configuration of the Cable Side Connector
P1 (Male)
To Radio
Test Set
J2 (Female)
To Mobile Radio
Accessory
Connector
1
13
13
1
14
25
25
14
J1 (Female)
To RIB
RLN4008
1000 50mm
Cable
+
_
1000 50mm
Cable
+
_
17
18
1
2
19
20
Viewed from
Front (pin end)
of Connector
J2 Mobile
Radio
Accessory
Connector
SPEAKER -
EXTERNAL MIC
DIGITAL IN 1 (EXT. PTT)
DIGITAL OUT 2 (EXT. ALARM)
FLAT TX AUDIO SENSITIVITY
DIGITAL IN 3/MPT MAP 27 RX
GND
DIGITAL IN/OUT 4/MPT MAP 27 TX
DIGITAL IN 5 w WAKEUP (EMG)
IGNITION
FLAT/FILTERED RX AUDIO
DIGITAL IN/OUT 7
SWITCHED BATTERY VOLTAGE
DIGITAL IN/OUT 8
RSSI
SPEAKER +
BUS + (FOR CPS AND FLASHING)
BOOT CONTROL
N/C
N/C
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
AUDIO +
AUDIO -
AUDIO +
AUDIO -
MIC AUDIO
MIC AUDIO
GND
VOL CTRL
DISC
PTT
BOOT CTRL
1
2
5
7
10
15
16
18
19
20
25
P1
To Radio
Test Set
RLN4460
GND
BIAS
BUS -
SW B +
BUS +
BOOT CTRL
1
4
11
12
15
25
J1
To R IB
RLN4008
FL0830307O
