Moxa Managed Ethernet Switch (UI_2.0_FW_5.x) User Manual
supply voltage to greater than
46 VDC
When the external supply voltage is detected at under 46 V, the system
suggests raising the voltage.
Enable PoE f unction f or
The system suggests enabling the PoE f unction.
Select 4-Pair High Power 60W
mode
When detecting 4-Pair PD, the system suggests selecting 4-Pair High Power
60W mode.
Select 2-Pair Force Mode or 4-
Pair Force Mode
When conf iguring at 4-Pair PoE Mode and detecting higher/lower resistance
or higher capacitance, the system suggests selecting 2-Pair Force Mode or 4-
Pair Force Mode.

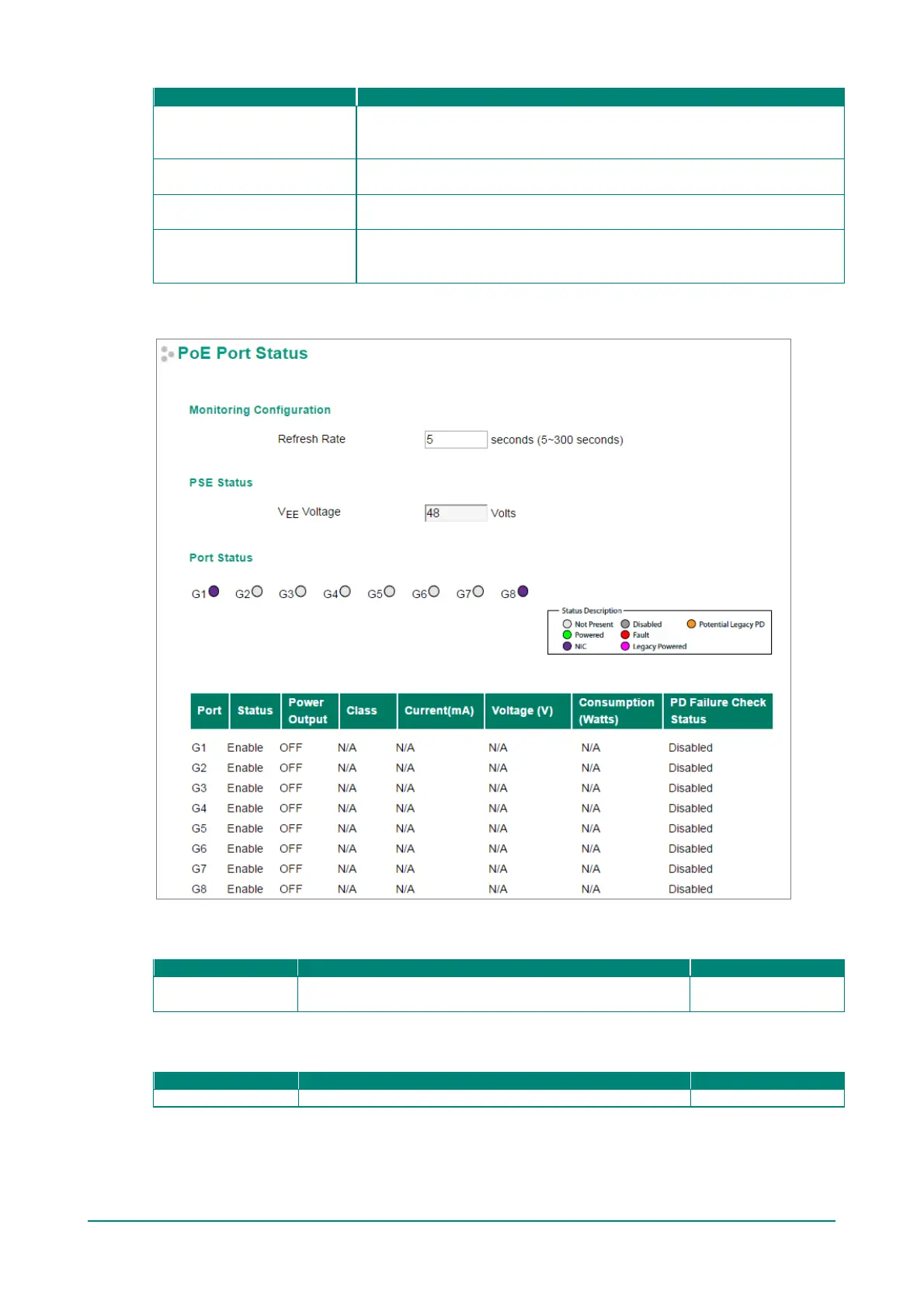

PoE Port Status
Monitoring Configuration
Refresh Rate
5 to 300
The period of time for the system to refresh the PoE Port
5
PSE Status
V
EE
Voltage
EE
voltage supplied by the PSE.
