Moxa Managed Ethernet Switch (UI_2.0_FW_5.x) User Manual

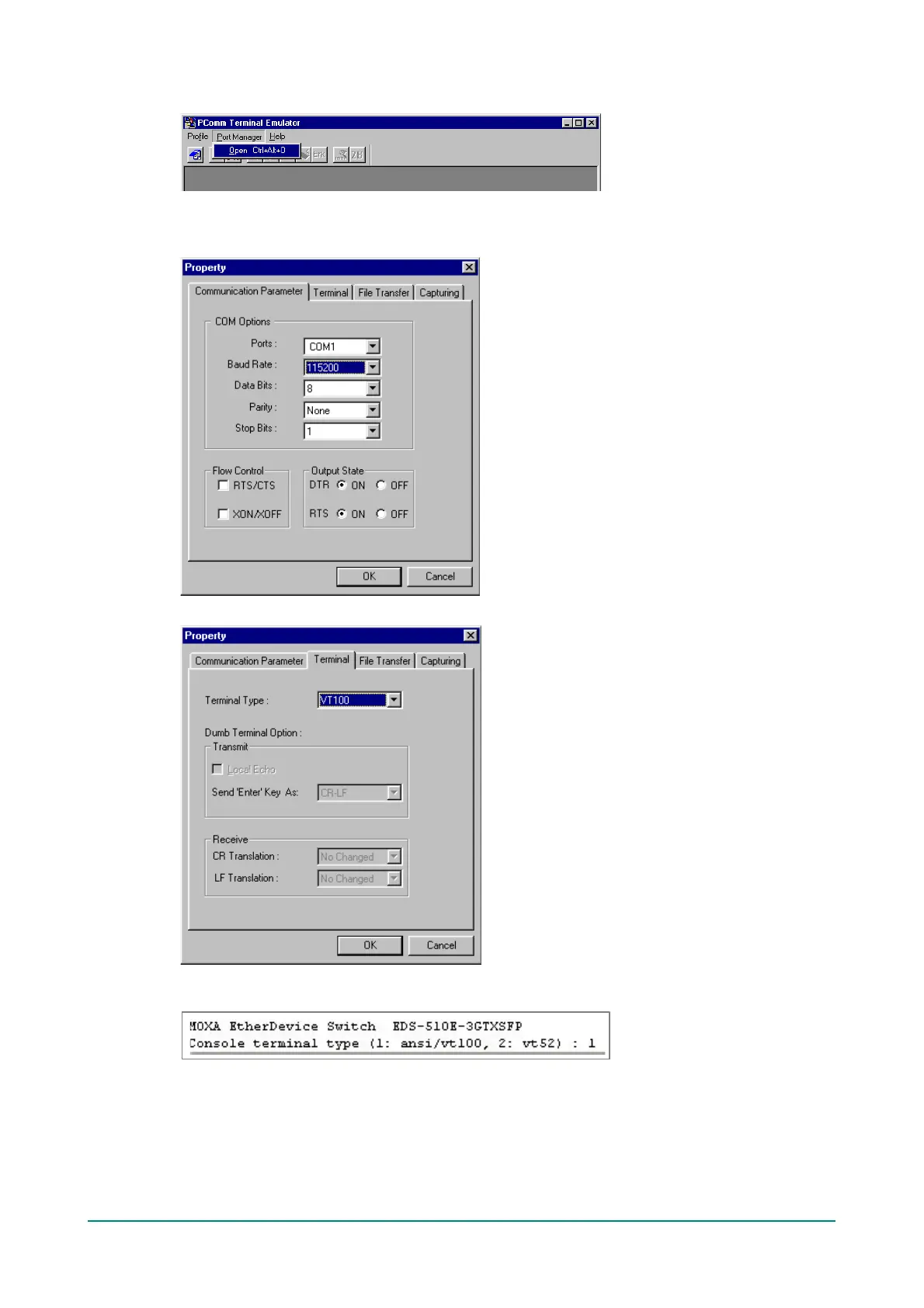

2. Select Open under the Port Manager menu to open a new connection.
3. The Property window should open. On the Communication Parameter tab for Ports, select the COM
port that is being used f or the console connection. Set the other f ields as f ollows: 115200 for Baud
Rate, 8 for Data Bits, None f or Parity, and 1 f or Stop Bits.
4. On the Terminal tab, select VT100 for Terminal Type, and then click OK to continue.
5. In the terminal window, the Moxa switch will prompt you to select a terminal type. Enter 1 to select
ansi/vt100 and then press Enter.
