NPort 5100 Series User’s Manual Getting Started
2-2

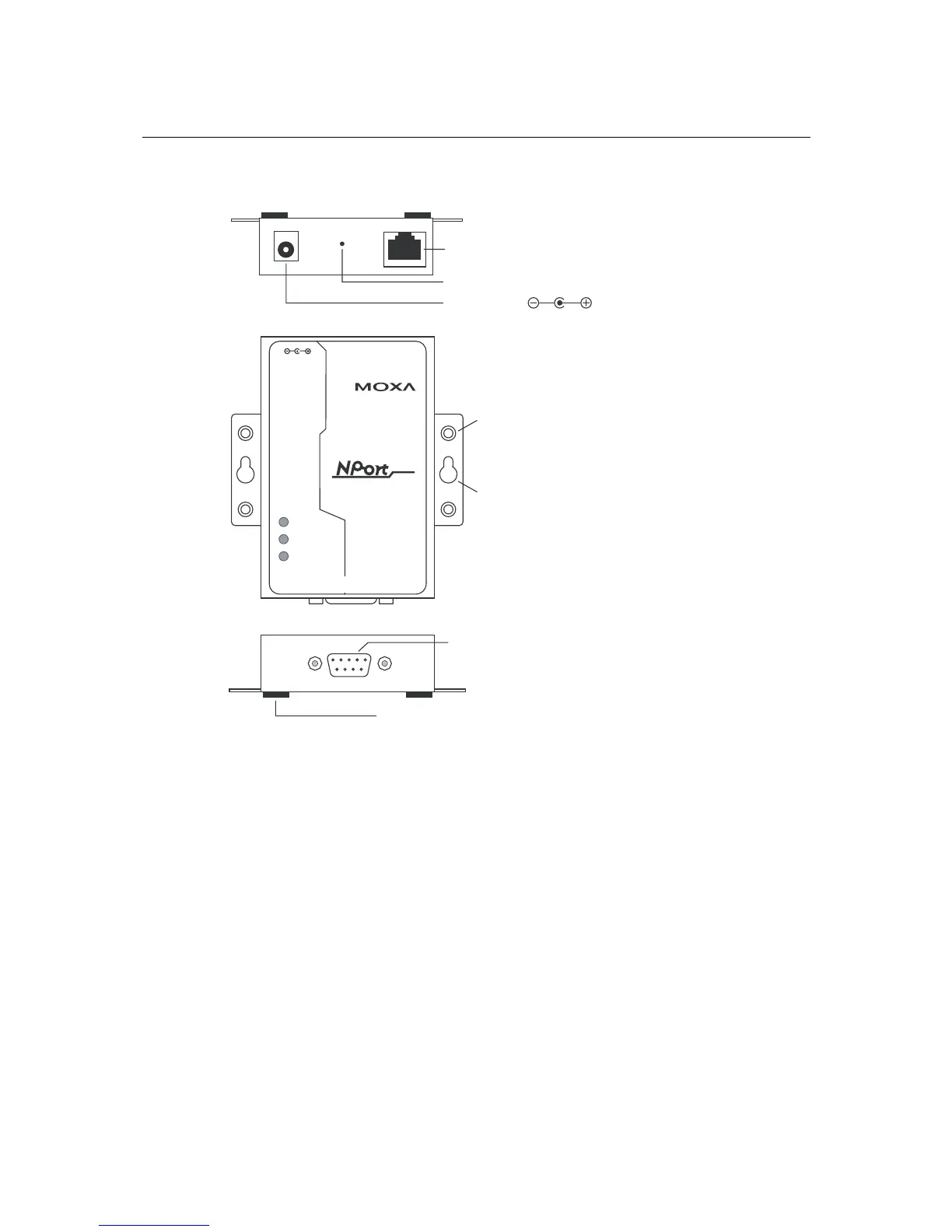

Panel Layout of NPort 5100 Series
Top Panel View
DIN-Rail
screw hole
Wallmount
screw hole
Ready
Link
Tx/Rx
Serial Device Server
5110
10/100M
Ethernet
RESET
12-48
VDC
Port 1 RS-232
Male DB9 serial port
Front Panel View
RJ45 10/100M Ethernet port
Reset button
Power input
Rear Panel View
Stick-on pad
NOTE: The layouts of NPort 5130 and NPort 5150 are the same as for NPort 5110.
Connecting the Hardware
This section describes how to connect the NPort 5100 to serial devices for first time testing
purposes. We cover Connecting to the Network, Connecting to a Serial Device, and LED
Indicators.
Connecting the Power
Connect the 12 to 48 VDC power code with NPort 5100’s power input. If the power is properly
supplied, the “Ready” LED will show a solid red color until the system is ready, at which time the
“Ready” LED will change to a green color.
